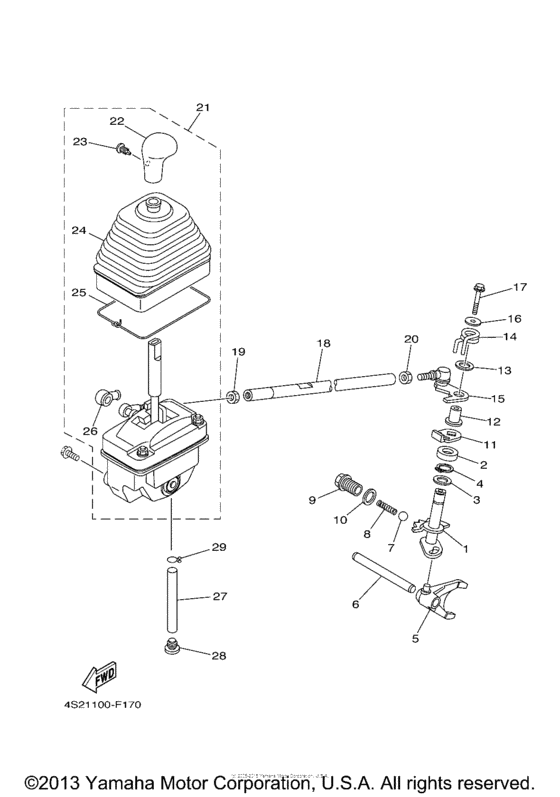

Shift shaft Diagram Yamaha GRIZZLY 350 Grizzly 350 4WD IRS Hunting
- Model code
- YFM35FGIHA
- Engine Capacity
- 348
- Year
- 2011
- Sales region
- USA
- Power
- 21 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Grizzly 350 4WD IRS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5UH-18103-00-00 Shift Shaft Comp |
5UH-18103-00-00 |
from US $21.50 |
||
|
2
|
2
931-02152-12-00 Oil Seal |
931-02152-12-00 |
from US $4.30 |
||
|
3
|
3
90201-15701-00 Washer, Plate (T=1.0) |
90201-15701-00 |
from US $1.84 |
||
|
4
|
4
934-40150-12-00
Circlip
|
934-40150-12-00 |
— | ||
| replacement | |||||
|
4
|
4
99009-15400-00 Circlip(1Ar) |
99009-15400-00 |
from US $1.07 |
||
|
5
|
5
5UH-18511-00-00 Fork, Shift 1 |
5UH-18511-00-00 |
US $81.95 |
||
|
6
|
6
2A6-18535-00-00 Bar, Shift Fork Guide 2 |
2A6-18535-00-00 |
from US $6.30 |
||
|
7
|
7
935-03080-07-00 Ball |
935-03080-07-00 |
from US $1.84 |
||
|
8
|
8
90501-10353-00 Spring, Compression |
90501-10353-00 |
from US $1.66 |
||
|
9
|
9
90105-14003-00 Bolt, Flange |
90105-14003-00 |
from US $4.11 |
||
|
10
|
10
90430-14194-00 Gasket |
90430-14194-00 |
from US $1.70 |
||
|
11
|
11
4SH-18198-00-00 Lever |
4SH-18198-00-00 |
from US $8.93 |
||
|
12
|
12
90387-0613B-00 Collar |
90387-0613B-00 |
from US $7.79 |
||
|
13
|
13
90201-132G5-00 Washer, Plate |
90201-132G5-00 |
from US $1.70 |
||
| replacement | |||||
|
13
|
13
90201-13013-00 Washer, Plate |
90201-13013-00 |
from US $1.70 |
||
|
14
|
14
90508-35764-00 Spring, Torsion |
90508-35764-00 |
from US $3.40 |
||
|
15
|
15
5UH-18191-00-00 Lever |
5UH-18191-00-00 |
US $45.88 |
||
|
16
|
16
90201-06036-00 Washer, Plate |
90201-06036-00 |
from US $1.70 |
||
|
17
|
17
95812-06035-00 Bolt, Flange |
95812-06035-00 |
from US $1.07 |
||
| replacement | |||||
|
17
|
17
95817-06035-00 Bolt, Flange |
95817-06035-00 |
from US $1.07 |
||
|
18
|
18
5UH-18115-01-00 Rod, Shift |
5UH-18115-01-00 |
US $21.17 |
||
|
19
|
19
90170-08358-00 Nut |
90170-08358-00 |
from US $1.84 |
||
|
20
|
20
95302-08700-00 Nut, Hexagon |
95302-08700-00 |
US $1.42 |
||
| replacement | |||||
|
20
|
20
95380-08700-00 Nut |
95380-08700-00 |
from US $1.42 |
||
|
21
|
21
5UH-18300-01-00 Shifter Assy |
5UH-18300-01-00 |
US $387.83 |
||
| replacement | |||||
|
21
|
21
5UH-18300-02-00 Shifter Assy |
5UH-18300-02-00 |
US $545.49 |
||
|
22
|
22
5TE-18174-00-00 Knob, Shift Lever |
5TE-18174-00-00 |
US $30.29 |
||
|
23
|
23
90269-05055-00 Rivet |
90269-05055-00 |
from US $1.34 |
||
|
24
|
24
5GH-18131-00-00 Boot, Sealing |
5GH-18131-00-00 |
from US $37.04 |
||
|
25
|
25
5GH-18617-00-00 Stopper,rubber |
5GH-18617-00-00 |
from US $8.50 |
||
|
26
|
26
2H9-18154-00-00 Cover, Dust |
2H9-18154-00-00 |
from US $5.10 |
||
|
27
|
27
90446-16001-00 Hose (L90) |
90446-16001-00 |
from US $1.98 |
||
|
28
|
28
5ND-E4191-10-00
Plug, Drain
|
5ND-E4191-10-00 |
— | ||
| replacement | |||||
|
28
|
28
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
29
|
29
90467-150A2-00 Clip |
90467-150A2-00 |
from US $1.56 |
||
