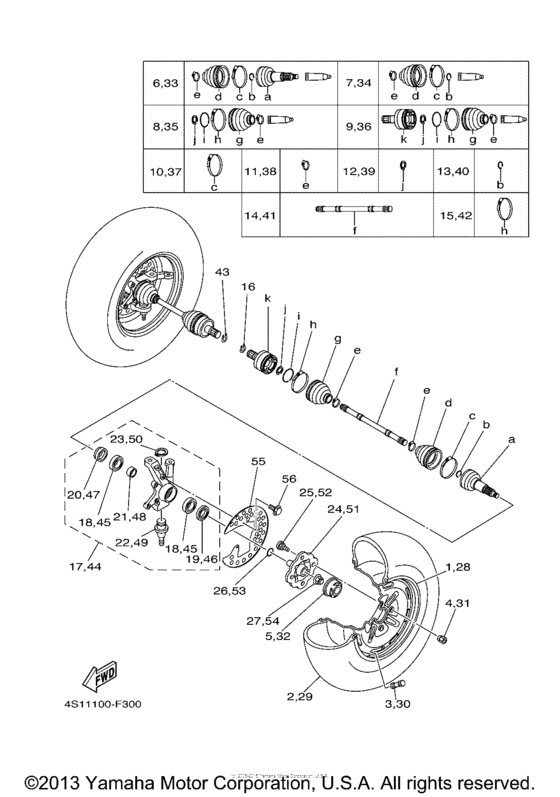

Front wheel Diagram Yamaha GRIZZLY 350 Grizzly 350 4WD IRS Hunting
- Model code
- YFM35FGIHW
- Engine Capacity
- 348
- Year
- 2007
- Sales region
- USA
- Power
- 21 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Grizzly 350 4WD IRS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1D9-F5180-10-00 Wheel Comp |
1D9-F5180-10-00 |
from US $214.13 |
||
|
2
|
2
94108-12812-00
Tire (At25X8-12 M979)
M979 CHENG SHIN |
94108-12812-00 |
— | ||
|
3
|
3
939-00008-13-00
Valve, Rim (Tr413)
|
939-00008-13-00 |
— | ||
| replacement | |||||
|
3
|
3
939-00008-12-00 Valve, Rim (Tr413) |
939-00008-12-00 |
from US $10.15 |
||
|
4
|
4
90179-10540-00 Nut |
90179-10540-00 |
from US $2.27 |
||
|
5
|
5
2P5-F512A-00-00 Cap, Wheel |
2P5-F512A-00-00 |
US $35.44 |
||
|
6
|
6
4S1-2510F-00-00 Ball Joint Set |
4S1-2510F-00-00 |
US $330.89 |
||
| replacement | |||||
|
6
|
6
4S1-2510F-01-00 Ball Joint Set |
4S1-2510F-01-00 |
US $415.78 |
||
|
7
|
7
4S1-2510G-00-00 Boot Set (Ball Joi |
4S1-2510G-00-00 |
from US $48.36 |
||
| replacement | |||||
|
7
|
7
4S1-2510G-01-00 Boot Set (Ball Joint) |
4S1-2510G-01-00 |
from US $48.36 |
||
|
8
|
8
4S1-2510H-00-00 Boot Set(Double OfOF |
4S1-2510H-00-00 |
from US $45.59 |
||
| replacement | |||||
|
8
|
8
4S1-2510H-01-00 Boot Set(Double Offset Joint)OF |
4S1-2510H-01-00 |
from US $45.59 |
||
|
9
|
9
4S1-2510J-00-00
Double Off Set Joi
|
4S1-2510J-00-00 |
— | ||
| replacement | |||||
|
9
|
9
4S1-2510J-01-00 Double Off Set Joint |
4S1-2510J-01-00 |
US $363.67 |
||
|
10
|
10
3HN-2511G-01-00 Boot Band (Ball Joint) |
3HN-2511G-01-00 |
from US $7.79 |
||
|
11
|
11
3HN-2512G-01-00 Boot Band (Small) |
3HN-2512G-01-00 |
from US $6.94 |
||
|
12
|
12
2HR-2512J-00-00 Snap Ring |
2HR-2512J-00-00 |
from US $3.40 |
||
|
13
|
13
4KB-2512H-00-00 Circlip |
4KB-2512H-00-00 |
from US $2.83 |
||
|
14
|
14
4S1-2511E-00-00 ShaftLH |
4S1-2511E-00-00 |
US $140.51 |
||
|
15
|
15
4S1-2511G-00-00 Boot Band |
4S1-2511G-00-00 |
US $10.40 |
||
|
16
|
16
93450-22119-00 Circlip |
93450-22119-00 |
from US $1.70 |
||
|
17
|
17
5ND-F3501-10-00 Steering Knuckle Assy (Left) |
5ND-F3501-10-00 |
US $283.19 |
||
| replacement | |||||
|
17
|
17
5ND-F3501-11-00 Steering Knuckle Assy (Left) |
5ND-F3501-11-00 |
from US $285.87 |
||
|
18
|
18
933-06006-Y2-00 Bearing |
933-06006-Y2-00 |
from US $34.97 |
||
|
19
|
19
93106-38046-00 Oil Seal |
93106-38046-00 |
from US $7.28 |
||
|
20
|
20
93106-38047-00 Oil Seal |
93106-38047-00 |
from US $19.84 |
||
|
21
|
21
90560-30325-00 Spacer |
90560-30325-00 |
from US $5.96 |
||
|
22
|
22
5FU-F3549-00-00
Ball Joint 1
|
5FU-F3549-00-00 |
— | ||
| replacement | |||||
|
22
|
22
37S-23549-01-00 Ball Joint 1 |
37S-23549-01-00 |
from US $60.79 |
||
|
23
|
23
93410-32826-00 Circlip |
93410-32826-00 |
from US $2.55 |
||
| replacement | |||||
|
23
|
23
934-10320-75-00 Circlip |
934-10320-75-00 |
from US $1.66 |
||
|
24
|
24
5ND-F5111-20-00 Hub, Front |
5ND-F5111-20-00 |
US $87.88 |
||
| replacements | |||||
|
24
|
24
5ND-F5111-21-00 Hub, Front |
5ND-F5111-21-00 |
US $71.80 |
||
|
24
|
24
5ND-F5111-30-00 Hub,front |
5ND-F5111-30-00 |
US $78.08 |
||
|
25
|
25
90114-10010-00 Bolt, Serration |
90114-10010-00 |
from US $1.98 |
||
| replacement | |||||
|
25
|
25
901-14100-14-00 Bolt, Serration |
901-14100-14-00 |
from US $1.34 |
||
|
26
|
26
93210-27666-00 O-Ring |
93210-27666-00 |
from US $1.84 |
||
|
27
|
27
90179-20006-00 Nut |
90179-20006-00 |
from US $9.07 |
||
| replacement | |||||
|
27
|
27
901-79200-16-00 Nut |
901-79200-16-00 |
from US $7.94 |
||
|
28
|
28
1D9-F5180-10-00 Wheel Comp |
1D9-F5180-10-00 |
from US $214.13 |
||
|
29
|
29
94108-12812-00
Tire (At25X8-12 M979)
M979 CHENG SHIN |
94108-12812-00 |
— | ||
|
30
|
30
939-00008-13-00
Valve, Rim (Tr413)
|
939-00008-13-00 |
— | ||
| replacement | |||||
|
30
|
30
939-00008-12-00 Valve, Rim (Tr413) |
939-00008-12-00 |
from US $10.15 |
||
|
31
|
31
90179-10540-00 Nut |
90179-10540-00 |
from US $2.27 |
||
|
32
|
32
2P5-F512A-00-00 Cap, Wheel |
2P5-F512A-00-00 |
US $35.44 |
||
|
33
|
33
4S1-2510F-00-00 Ball Joint Set |
4S1-2510F-00-00 |
US $330.89 |
||
| replacement | |||||
|
33
|
33
4S1-2510F-01-00 Ball Joint Set |
4S1-2510F-01-00 |
US $415.78 |
||
|
34
|
34
4S1-2510G-00-00 Boot Set (Ball Joi |
4S1-2510G-00-00 |
from US $48.36 |
||
| replacement | |||||
|
34
|
34
4S1-2510G-01-00 Boot Set (Ball Joint) |
4S1-2510G-01-00 |
from US $48.36 |
||
|
35
|
35
4S1-2510H-00-00 Boot Set(Double OfOF |
4S1-2510H-00-00 |
from US $45.59 |
||
| replacement | |||||
|
35
|
35
4S1-2510H-01-00 Boot Set(Double Offset Joint)OF |
4S1-2510H-01-00 |
from US $45.59 |
||
|
36
|
36
4S1-2510J-00-00
Double Off Set Joi
|
4S1-2510J-00-00 |
— | ||
| replacement | |||||
|
36
|
36
4S1-2510J-01-00 Double Off Set Joint |
4S1-2510J-01-00 |
US $363.67 |
||
|
37
|
37
3HN-2511G-01-00 Boot Band (Ball Joint) |
3HN-2511G-01-00 |
from US $7.79 |
||
|
38
|
38
3HN-2512G-01-00 Boot Band (Small) |
3HN-2512G-01-00 |
from US $6.94 |
||
|
39
|
39
2HR-2512J-00-00 Snap Ring |
2HR-2512J-00-00 |
from US $3.40 |
||
|
40
|
40
4KB-2512H-00-00 Circlip |
4KB-2512H-00-00 |
from US $2.83 |
||
|
41
|
41
4S2-2511E-00-00 ShaftRH |
4S2-2511E-00-00 |
US $131.02 |
||
| replacement | |||||
|
41
|
41
4S2-2511E-01-00 ShaftRH |
4S2-2511E-01-00 |
US $166.63 |
||
|
42
|
42
4S1-2511G-00-00 Boot Band |
4S1-2511G-00-00 |
US $10.40 |
||
|
43
|
43
93450-22119-00 Circlip |
93450-22119-00 |
from US $1.70 |
||
|
44
|
44
5ND-F3502-10-00 Steering Knuckle Assy (Right) |
5ND-F3502-10-00 |
US $330.71 |
||
| replacement | |||||
|
44
|
44
5ND-F3502-11-00 Steering Knuckle Assy (Right) |
5ND-F3502-11-00 |
from US $332.08 |
||
|
45
|
45
933-06006-Y2-00 Bearing |
933-06006-Y2-00 |
from US $34.97 |
||
|
46
|
46
93106-38046-00 Oil Seal |
93106-38046-00 |
from US $7.28 |
||
|
47
|
47
93106-38047-00 Oil Seal |
93106-38047-00 |
from US $19.84 |
||
|
48
|
48
90560-30325-00 Spacer |
90560-30325-00 |
from US $5.96 |
||
|
49
|
49
5FU-F3549-00-00
Ball Joint 1
|
5FU-F3549-00-00 |
— | ||
| replacement | |||||
|
49
|
49
37S-23549-01-00 Ball Joint 1 |
37S-23549-01-00 |
from US $60.79 |
||
|
50
|
50
93410-32826-00 Circlip |
93410-32826-00 |
from US $2.55 |
||
| replacement | |||||
|
50
|
50
934-10320-75-00 Circlip |
934-10320-75-00 |
from US $1.66 |
||
|
51
|
51
5ND-F5111-20-00 Hub, Front |
5ND-F5111-20-00 |
US $87.88 |
||
| replacements | |||||
|
51
|
51
5ND-F5111-21-00 Hub, Front |
5ND-F5111-21-00 |
US $71.80 |
||
|
51
|
51
5ND-F5111-30-00 Hub,front |
5ND-F5111-30-00 |
US $78.08 |
||
|
52
|
52
90114-10010-00 Bolt, Serration |
90114-10010-00 |
from US $1.98 |
||
| replacement | |||||
|
52
|
52
901-14100-14-00 Bolt, Serration |
901-14100-14-00 |
from US $1.34 |
||
|
53
|
53
93210-27666-00 O-Ring |
93210-27666-00 |
from US $1.84 |
||
|
54
|
54
90179-20006-00 Nut |
90179-20006-00 |
from US $9.07 |
||
| replacement | |||||
|
54
|
54
901-79200-16-00 Nut |
901-79200-16-00 |
from US $7.94 |
||
|
55
|
55
5ND-F514A-00-00 Ring, Wheel 1 (Left) |
5ND-F514A-00-00 |
from US $10.35 |
||
|
56
|
56
958-2P060-12-00
Bolt, Flange
|
958-2P060-12-00 |
— | ||
| replacements | |||||
|
56
|
56
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
56
|
56
95022-06008-00 Bolt, Flange |
95022-06008-00 |
from US $1.42 |
||
|
56
|
56
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.07 |
||
