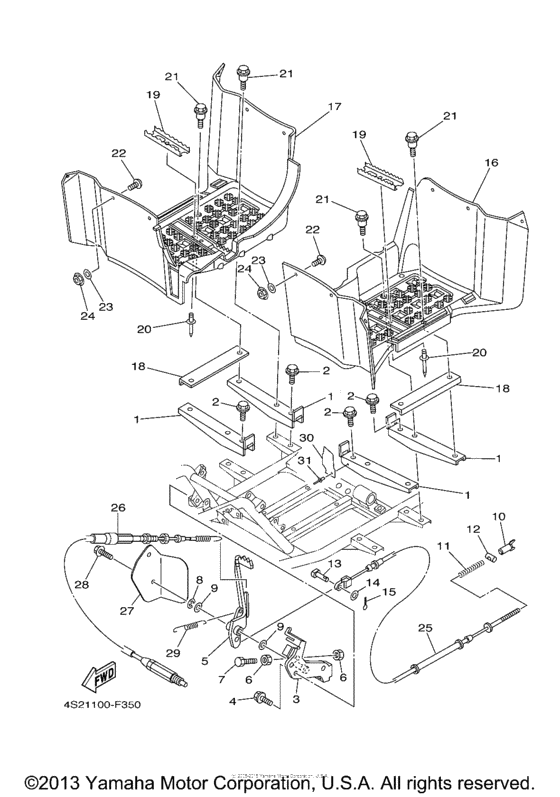

Stand & Footrest Diagram Yamaha GRIZZLY 350 Grizzly 350 4WD IRS Hunting
- Model code
- YFM35FGIHW
- Engine Capacity
- 348
- Year
- 2007
- Sales region
- USA
- Power
- 21 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Grizzly 350 4WD IRS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5ND-F7471-01-00 Bar, Footrest 1 |
5ND-F7471-01-00 |
US $14.63 |
||
|
2
|
2
958-1P080-12-00
Bolt, Flange
|
958-1P080-12-00 |
— | ||
| replacement | |||||
|
2
|
2
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
3
|
3
5TE-F7412-10-00 Bracket, Footrest 1 |
5TE-F7412-10-00 |
US $38.57 |
||
| replacement | |||||
|
3
|
3
5TE-F7412-11-00 Bracket, Footrest |
5TE-F7412-11-00 |
US $38.57 |
||
|
4
|
4
958-1P080-12-00
Bolt, Flange
|
958-1P080-12-00 |
— | ||
| replacement | |||||
|
4
|
4
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
5
|
5
4S2-F7211-00-00 Pedal, Brake |
4S2-F7211-00-00 |
US $33.16 |
||
|
6
|
6
95317-06700-00 Nut(Jn5) |
95317-06700-00 |
from US $1.21 |
||
|
7
|
7
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
8
|
8
93430-10015-00 Circlip |
93430-10015-00 |
from US $2.41 |
||
|
9
|
9
90201-144J2-00 Washer, Plate |
90201-144J2-00 |
from US $1.84 |
||
|
10
|
10
4S1-F6343-00-00 Nut, Adjusting |
4S1-F6343-00-00 |
US $11.07 |
||
|
11
|
11
90501-10782-00 Spring, Compression |
90501-10782-00 |
from US $1.84 |
||
|
12
|
12
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.56 |
||
|
13
|
13
90240-08124-00 Pin, Clevis |
90240-08124-00 |
from US $1.84 |
||
|
14
|
14
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
15
|
15
914-01200-20-00
Pin, Cotter
|
914-01200-20-00 |
— | ||
| replacement | |||||
|
15
|
15
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
16
|
16
5ND-F7453-01-00 Cover 1 |
5ND-F7453-01-00 |
from US $70.20 |
||
|
17
|
17
5ND-F7463-01-00 Cover 2 |
5ND-F7463-01-00 |
from US $70.33 |
||
|
18
|
18
5ND-F7445-00-00 Plate 1 |
5ND-F7445-00-00 |
US $11.16 |
||
|
19
|
19
5UH-F741A-00-00 Arm 1 |
5UH-F741A-00-00 |
from US $3.47 |
||
| replacement | |||||
|
19
|
19
5UH-F741A-10-00 Arm 1 |
5UH-F741A-10-00 |
from US $7.74 |
||
|
20
|
20
90267-489U9-00 Rivet, Blind |
90267-489U9-00 |
from US $3.83 |
||
| replacement | |||||
|
20
|
20
90267-48934-00 Rivet, Blind |
90267-48934-00 |
from US $3.59 |
||
|
21
|
21
901-09060-72-00 Bolt |
901-09060-72-00 |
from US $2.27 |
||
|
22
|
22
90149-05299-00 Screw |
90149-05299-00 |
from US $1.56 |
||
|
23
|
23
90201-05029-00 Washer, Plate |
90201-05029-00 |
from US $1.98 |
||
|
24
|
24
95707-05300-00 Nut, Flange |
95707-05300-00 |
from US $1.42 |
||
|
25
|
25
4S2-26361-00-00 Cable, Brake |
4S2-26361-00-00 |
US $49.23 |
||
| replacement | |||||
|
25
|
25
4S2-26361-01-00 Cable, Brake |
4S2-26361-01-00 |
US $55.01 |
||
|
26
|
26
5GH-2637F-00-00 Cable, Control 2 |
5GH-2637F-00-00 |
from US $58.17 |
||
| replacements | |||||
|
26
|
26
5GH-2637F-10-00 Cable, Control 2 |
5GH-2637F-10-00 |
from US $56.36 |
||
|
26
|
26
5GH-2637F-11-00 Cable, Control 2 |
5GH-2637F-11-00 |
from US $39.02 |
||
|
27
|
27
5UH-F7491-00-00 Protector |
5UH-F7491-00-00 |
US $12.64 |
||
| replacement | |||||
|
27
|
27
5UH-F7491-01-00 Protector |
5UH-F7491-01-00 |
US $12.64 |
||
|
28
|
28
90119-06009-00 Bolt, With Washer |
90119-06009-00 |
from US $1.56 |
||
| replacements | |||||
|
28
|
28
97527-06512-00 Bolt, With Washer |
97527-06512-00 |
from US $1.56 |
||
|
28
|
28
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.21 |
||
|
29
|
29
90506-12403-00 Spring, Tension |
90506-12403-00 |
from US $2.55 |
||
|
30
|
30
5UH-F7445-00-00 Plate 1 |
5UH-F7445-00-00 |
US $3.35 |
||
| replacements | |||||
|
30
|
30
5UH-F7445-01-00 Plate 1 |
5UH-F7445-01-00 |
US $3.35 |
||
|
30
|
30
5UH-F7445-02-00 Plate 1 |
5UH-F7445-02-00 |
US $9.54 |
||
|
31
|
31
90267-489U1-00 Rivet,blind |
90267-489U1-00 |
from US $4.77 |
||
| replacement | |||||
|
31
|
31
90267-48938-00 Rivet (Eu0) |
90267-48938-00 |
from US $3.32 |
||
