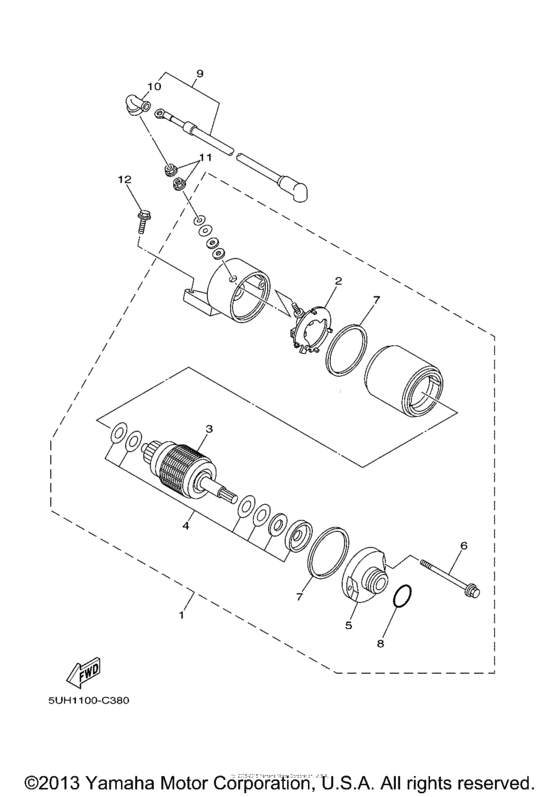

Starting motor Diagram Yamaha GRIZZLY 350 Grizzly 350 4WD IRS Hunting
- Model code
- YFM35FGIHW
- Engine Capacity
- 348
- Year
- 2007
- Sales region
- USA
- Power
- 21 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Grizzly 350 4WD IRS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3HE-81890-00-00 Starting Motor Unit |
3HE-81890-00-00 |
from US $448.96 |
||
|
2
|
2
3HE-81840-00-00 Brush Holder Assy |
3HE-81840-00-00 |
from US $49.26 |
||
|
3
|
3
3HE-81850-00-00 Armature Assy |
3HE-81850-00-00 |
from US $379.53 |
||
|
4
|
4
3AJ-81809-00-00 Washer Kit |
3AJ-81809-00-00 |
from US $6.52 |
||
|
5
|
5
3HE-81830-00-00 Front Bracket Assy |
3HE-81830-00-00 |
from US $221.06 |
||
|
6
|
6
3HE-81826-00-00 Bolt |
3HE-81826-00-00 |
from US $11.48 |
||
|
7
|
7
11H-81844-00-00
Gasket
|
11H-81844-00-00 |
— | ||
| replacement | |||||
|
7
|
7
35C-81844-00-00 Gasket |
35C-81844-00-00 |
from US $20.97 |
||
|
8
|
8
1FK-81847-00-00
O-Ring
|
1FK-81847-00-00 |
— | ||
| replacement | |||||
|
8
|
8
932-10242-35-00 O-Ring |
932-10242-35-00 |
from US $2.32 |
||
|
9
|
9
3XF-81815-00-00 Cord, Starter Motor |
3XF-81815-00-00 |
from US $80.13 |
||
|
10
|
10
4G0-81871-00-00 Cap |
4G0-81871-00-00 |
US $31.73 |
||
| replacement | |||||
|
10
|
10
5H0-81871-00-00
Cover Terminal
|
5H0-81871-00-00 |
— | ||
|
11
|
11
4XV-8182A-00-00 Nut |
4XV-8182A-00-00 |
from US $1.98 |
||
|
12
|
12
95027-06025-00 Bolt, Flange |
95027-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
12
|
12
90105-060A0-00 Bolt, Washer Based(4Kg) |
90105-060A0-00 |
from US $1.98 |
||
