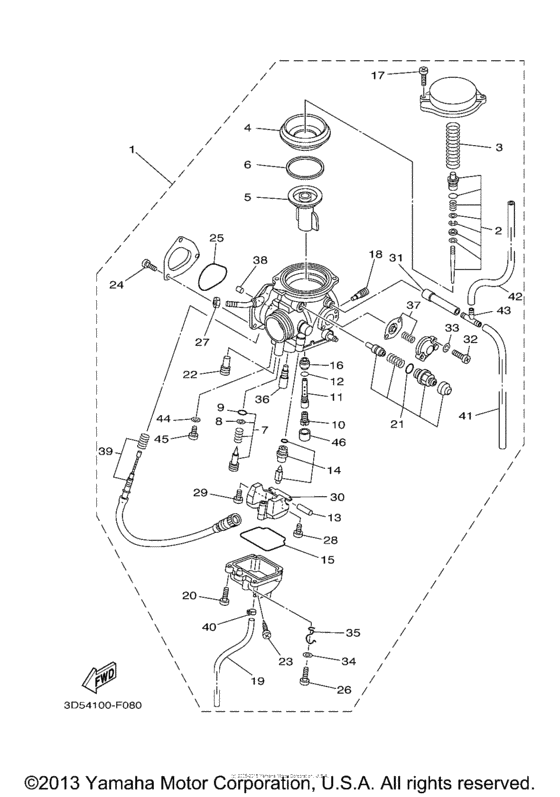

Carburetor Diagram Yamaha GRIZZLY 350 Grizzly 350 4WD IRS Hunting
- Model code
- YFM35FGIHX
- Engine Capacity
- 348
- Year
- 2008
- Sales region
- USA
- Power
- 21 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Grizzly 350 4WD IRS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3D5-E4101-10-00 Carburetor Assy 1 |
3D5-E4101-10-00 |
US $569.97 |
||
|
2
|
2
5UH-1490J-10-00 Needle Set |
5UH-1490J-10-00 |
from US $28.44 |
||
|
3
|
3
5DM-14933-00-00 Spring, Diaphragm |
5DM-14933-00-00 |
from US $3.32 |
||
|
4
|
4
5GH-14940-10-00 Diaphragm Assy |
5GH-14940-10-00 |
from US $28.78 |
||
|
5
|
5
5DM-14112-00-00 Valve, Throttle 1 |
5DM-14112-00-00 |
from US $48.60 |
||
|
6
|
6
5GH-14918-10-00 Ring |
5GH-14918-10-00 |
from US $4.53 |
||
|
7
|
7
5UH-14105-10-00 Pilot Screw Set |
5UH-14105-10-00 |
from US $18.99 |
||
|
8
|
8
3H1-14962-00-00 Washer |
3H1-14962-00-00 |
from US $4.96 |
||
|
9
|
9
3H1-14147-00-00 O-Ring |
3H1-14147-00-00 |
from US $10.26 |
||
|
10
|
10
3G2-1423E-51-00 Jet, Main (#128.8) |
3G2-1423E-51-00 |
from US $12.17 |
||
|
11
|
11
5GH-14261-00-00 Holder |
5GH-14261-00-00 |
from US $31.59 |
||
|
12
|
12
583-14561-00-00 O-Ring |
583-14561-00-00 |
from US $2.66 |
||
|
13
|
13
127-14186-00-00 Pin, Float |
127-14186-00-00 |
from US $2.98 |
||
|
14
|
14
4SV-14107-20-00
Needle Valve Set
|
4SV-14107-20-00 |
— | ||
| replacement | |||||
|
14
|
14
5UH-14107-20-00 Needle Valve Set |
5UH-14107-20-00 |
from US $44.64 |
||
|
15
|
15
5DM-14561-00-00 O-Ring |
5DM-14561-00-00 |
from US $7.94 |
||
|
16
|
16
5DM-14141-42-00 Nozzle, Main |
5DM-14141-42-00 |
from US $26.12 |
||
|
17
|
17
4KM-14216-00-00 Screw |
4KM-14216-00-00 |
from US $3.54 |
||
|
18
|
18
1HX-14231-16-00 Jet, Main (# 80)# 80 |
1HX-14231-16-00 |
from US $12.15 |
||
|
19
|
19
4KB-14193-20-00 Pipe |
4KB-14193-20-00 |
from US $30.18 |
||
|
20
|
20
985-80040-10-00 Screw, Pan Head |
985-80040-10-00 |
from US $1.07 |
||
|
21
|
21
5UH-1410A-00-00 Starter Set |
5UH-1410A-00-00 |
from US $35.38 |
||
|
22
|
22
3G2-1423A-62-00 Jet, Main (#57.5) |
3G2-1423A-62-00 |
from US $8.41 |
||
| replacement | |||||
|
22
|
22
3G2-1423A-62-A0 Jet, Main (#57.5) |
3G2-1423A-62-A0 |
from US $10.40 |
||
|
23
|
23
3FV-14191-00-00 Plug, Drain |
3FV-14191-00-00 |
from US $13.03 |
||
|
24
|
24
98507-04006-00 Vis, Tete Tronconique |
98507-04006-00 |
US $1.56 |
||
| replacement | |||||
|
24
|
24
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
25
|
25
5FU-E4147-00-00 O-Ring |
5FU-E4147-00-00 |
from US $18.20 |
||
|
26
|
26
985-07040-14-00 Screw, Pan Head |
985-07040-14-00 |
from US $1.42 |
||
|
27
|
27
522-14161-00-00 Nut, Cable Adjusting |
522-14161-00-00 |
from US $3.68 |
||
|
28
|
28
98507-04008-00 Screw, Pan Head |
98507-04008-00 |
from US $1.07 |
||
|
29
|
29
1FN-14565-00-00 Screw |
1FN-14565-00-00 |
from US $1.34 |
||
|
30
|
30
5DM-14985-00-00 Float |
5DM-14985-00-00 |
from US $39.68 |
||
|
31
|
31
5FU-14197-00-00 Pipe |
5FU-14197-00-00 |
US $28.24 |
||
|
32
|
32
985-01040-14-00
Screw, Pan Head
|
985-01040-14-00 |
— | ||
| replacement | |||||
|
32
|
32
98580-04014-00 Screw, Pan Head |
98580-04014-00 |
from US $1.42 |
||
|
33
|
33
929-02041-00-00
Washer, Spring
|
929-02041-00-00 |
— | ||
| replacement | |||||
|
33
|
33
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
34
|
34
92907-04600-00 Washer(Jf2) |
92907-04600-00 |
from US $1.07 |
||
|
35
|
35
5GH-14937-00-00 Clip |
5GH-14937-00-00 |
from US $20.12 |
||
|
36
|
36
4KM-14142-17-00 Jet, Pilot (# 17.5)# 17.5 |
4KM-14142-17-00 |
from US $10.40 |
||
|
37
|
37
5EL-1490H-00-00 Diaphragm Set 5 |
5EL-1490H-00-00 |
from US $31.03 |
||
|
38
|
38
5FU-E4155-00-00 Guide, Cable |
5FU-E4155-00-00 |
US $10.85 |
||
|
39
|
39
5UH-14103-00-00 Throttle Screw Set |
5UH-14103-00-00 |
US $91.26 |
||
|
40
|
40
4XE-14937-00-00 Clip |
4XE-14937-00-00 |
US $16.67 |
||
|
41
|
41
5UH-14348-00-00 Pipe 1 |
5UH-14348-00-00 |
US $16.83 |
||
|
42
|
42
7T9-14987-00-00 Hose |
7T9-14987-00-00 |
from US $5.53 |
||
|
43
|
43
5FU-14167-00-00 Connector |
5FU-14167-00-00 |
US $22 |
||
|
44
|
44
256-14956-01-00 Washer |
256-14956-01-00 |
from US $3.26 |
||
|
45
|
45
3DM-14216-00-00 Screw |
3DM-14216-00-00 |
from US $3.26 |
||
|
46
|
46
5GH-14918-00-00 Ring |
5GH-14918-00-00 |
from US $14.73 |
||
