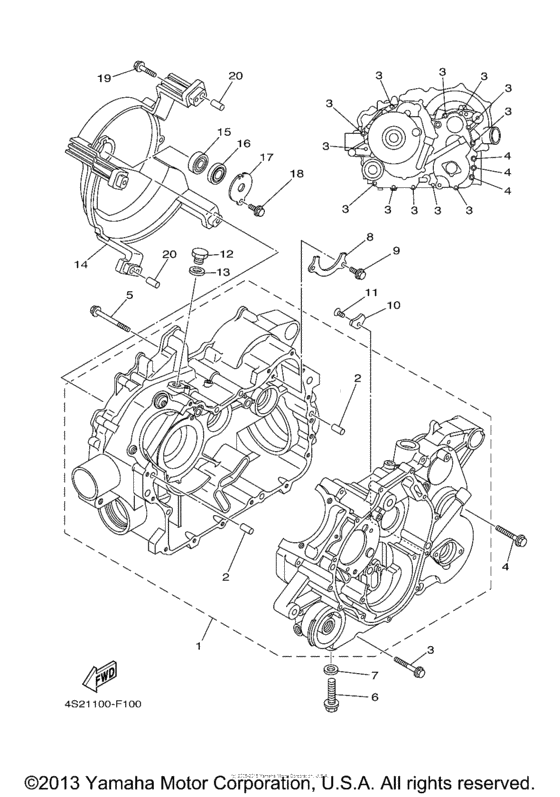

Crankcase Diagram Yamaha GRIZZLY 350 Grizzly 350 4WD IRS
- Model code
- YFM35FGIW
- Engine Capacity
- 348
- Year
- 2007
- Sales region
- USA
- Power
- 21 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Grizzly 350 4WD IRS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5UH-15100-00-00 Crankcase Assy |
5UH-15100-00-00 |
US $1,078.60 |
||
| replacement | |||||
|
1
|
1
5UH-15100-09-00 Crankcase Assy |
5UH-15100-09-00 |
US $913.53 |
||
|
2
|
2
99530-10116-00 Pin, Dowel |
99530-10116-00 |
from US $0.90 |
||
|
3
|
3
950-27060-50-00
Bolt, Flange
|
950-27060-50-00 |
— | ||
| replacement | |||||
|
3
|
3
90105-06798-00 Bolt, Flange |
90105-06798-00 |
from US $3.54 |
||
|
4
|
4
95027-08045-00 Bolt, Flange |
95027-08045-00 |
from US $1.56 |
||
|
5
|
5
95027-06070-00 Bolt, Flange |
95027-06070-00 |
from US $1.43 |
||
|
6
|
6
95027-12040-00 Bolt, Flange |
95027-12040-00 |
US $3.82 |
||
|
7
|
7
90201-12172-00 Washer, Plate |
90201-12172-00 |
from US $1.42 |
||
|
8
|
8
5GH-15388-00-00 Plate, Bearing Cover |
5GH-15388-00-00 |
from US $5.10 |
||
|
9
|
9
958-27060-12-00
Bolt, Flange
|
958-27060-12-00 |
— | ||
| replacement | |||||
|
9
|
9
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
10
|
10
2K7-15383-00-00 Plate, Bearing Cover |
2K7-15383-00-00 |
from US $7.88 |
||
| replacement | |||||
|
10
|
10
4XM-15383-00-00 Plate, Bearing Cover |
4XM-15383-00-00 |
from US $9.07 |
||
|
11
|
11
90151-06014-00 Screw, Countersunk (4H7) |
90151-06014-00 |
from US $2.13 |
||
|
12
|
12
90340-14029-00 Plug, Straight Screw |
90340-14029-00 |
from US $2.32 |
||
|
13
|
13
214-11198-01-00 Washer-gasket |
214-11198-01-00 |
from US $1.66 |
||
|
14
|
14
5UH-15442-00-00 Housing, Bearing |
5UH-15442-00-00 |
US $176.72 |
||
|
15
|
15
93306-20120-00 Bearing(3Dl) |
93306-20120-00 |
from US $18.14 |
||
| replacements | |||||
|
15
|
15
93306-20117-00 Bearing |
93306-20117-00 |
from US $18.14 |
||
|
15
|
15
933-06201-19-00 Bearing |
933-06201-19-00 |
from US $11.58 |
||
|
16
|
16
931-01121-68-00 Oil Seal |
931-01121-68-00 |
from US $3.32 |
||
|
17
|
17
4WV-15381-00-00 Plate, Bearing Cover |
4WV-15381-00-00 |
from US $4.96 |
||
|
18
|
18
95022-06012-00 Bolt, Flange |
95022-06012-00 |
from US $1.07 |
||
|
19
|
19
95827-06030-00 Bolt, Flange |
95827-06030-00 |
from US $1.07 |
||
| replacement | |||||
|
19
|
19
95817-06030-00 Bolt, Flange |
95817-06030-00 |
from US $1.07 |
||
|
20
|
20
99530-10116-00 Pin, Dowel |
99530-10116-00 |
from US $0.90 |
||
