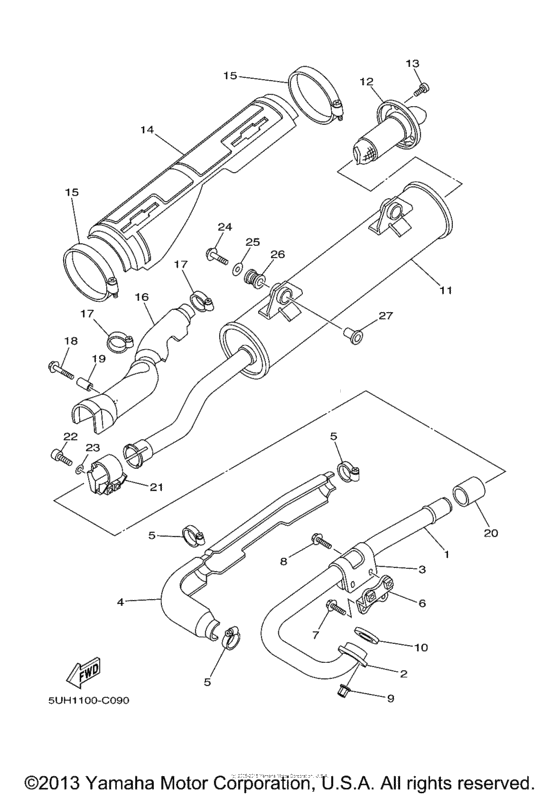

Exhaust Diagram Yamaha GRIZZLY 350 Grizzly 350 4WD IRS
- Model code
- YFM35FGIW
- Engine Capacity
- 348
- Year
- 2007
- Sales region
- USA
- Power
- 21 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Grizzly 350 4WD IRS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5UH-E4611-00-00 Pipe, Exhaust 1 |
5UH-E4611-00-00 |
from US $201.42 |
||
| replacement | |||||
|
1
|
1
5UH-E4610-01-00 Pipe, Exhaust 1 |
5UH-E4610-01-00 |
US $144.29 |
||
|
2
|
2
5UH-E4612-00-00 Nut, Ring |
5UH-E4612-00-00 |
US $24.57 |
||
|
3
|
3
5UH-E477R-00-00 Band 1 |
5UH-E477R-00-00 |
US $19.04 |
||
|
4
|
4
5UH-E4628-01-00 Protector, Exhaust |
5UH-E4628-01-00 |
US $46.40 |
||
|
5
|
5
5UH-E477T-00-00 Band |
5UH-E477T-00-00 |
US $24.26 |
||
|
6
|
6
5UH-E477K-00-00 Plate 1 |
5UH-E477K-00-00 |
US $5 |
||
| replacement | |||||
|
6
|
6
5UH-E477K-01-00
Plate 1
|
5UH-E477K-01-00 |
— | ||
|
7
|
7
9581P-06016-00 Bolt, Flange |
9581P-06016-00 |
from US $1.07 |
||
| replacement | |||||
|
7
|
7
95817-06016-00 Bolt, Flange |
95817-06016-00 |
from US $1.07 |
||
|
8
|
8
95817-06020-00 Bolt, Flange |
95817-06020-00 |
from US $1.13 |
||
|
9
|
9
90179-06668-00 Nut |
90179-06668-00 |
from US $1.34 |
||
|
10
|
10
3GD-14613-00-00 Gasket, Exhaust Pipe |
3GD-14613-00-00 |
from US $5.96 |
||
|
11
|
11
5UH-E4711-00-00 Muffler 1 |
5UH-E4711-00-00 |
US $503.12 |
||
|
12
|
12
5ND-E4752-00-00 Pipe, Outlet |
5ND-E4752-00-00 |
US $139.37 |
||
|
13
|
13
5ND-E4719-00-00 Bolt, Muffler |
5ND-E4719-00-00 |
US $1.69 |
||
| replacement | |||||
|
13
|
13
91380-06010-00 Bolt |
91380-06010-00 |
from US $1.56 |
||
|
14
|
14
5UH-E4718-00-00 Protector, Muffler 1 |
5UH-E4718-00-00 |
US $27.99 |
||
|
15
|
15
5ND-E4788-00-00 Band, Silencer |
5ND-E4788-00-00 |
US $21.02 |
||
|
16
|
16
5UH-E4728-01-00 Protector, Muffler |
5UH-E4728-01-00 |
US $137.47 |
||
|
17
|
17
5UH-E477T-00-00 Band |
5UH-E477T-00-00 |
US $24.26 |
||
|
18
|
18
9580P-06035-00 Bolt, Flange |
9580P-06035-00 |
from US $1.07 |
||
|
19
|
19
5UH-E4638-00-00 Collar |
5UH-E4638-00-00 |
US $1.60 |
||
|
20
|
20
5ND-E4714-00-00 Gasket, Muffler |
5ND-E4714-00-00 |
from US $19.13 |
||
| replacement | |||||
|
20
|
20
3YF-14714-00-00 Gasket, Muffler |
3YF-14714-00-00 |
from US $19.13 |
||
|
21
|
21
5ND-E4715-00-00 Band, Muffler |
5ND-E4715-00-00 |
from US $17.15 |
||
|
22
|
22
5ND-E4777-00-00 Bolt |
5ND-E4777-00-00 |
US $7.43 |
||
|
23
|
23
5ND-E4759-00-00 Washer |
5ND-E4759-00-00 |
US $8.46 |
||
|
24
|
24
95827-10040-00 Bolt, Flange |
95827-10040-00 |
from US $2.50 |
||
| replacements | |||||
|
24
|
24
958-14100-40-00 Bolt, Flange |
958-14100-40-00 |
from US $2.69 |
||
|
24
|
24
95817-10040-00 Bolt, Flange |
95817-10040-00 |
from US $2.69 |
||
|
25
|
25
90201-106E0-00 Washer, Plate |
90201-106E0-00 |
from US $1.28 |
||
| replacement | |||||
|
25
|
25
90201-10669-00 Washer, Plate |
90201-10669-00 |
from US $1.28 |
||
|
26
|
26
5ND-E4737-00-00 Damper, Muffler |
5ND-E4737-00-00 |
US $11.56 |
||
|
27
|
27
90387-10636-00 Collar |
90387-10636-00 |
from US $7.79 |
||
