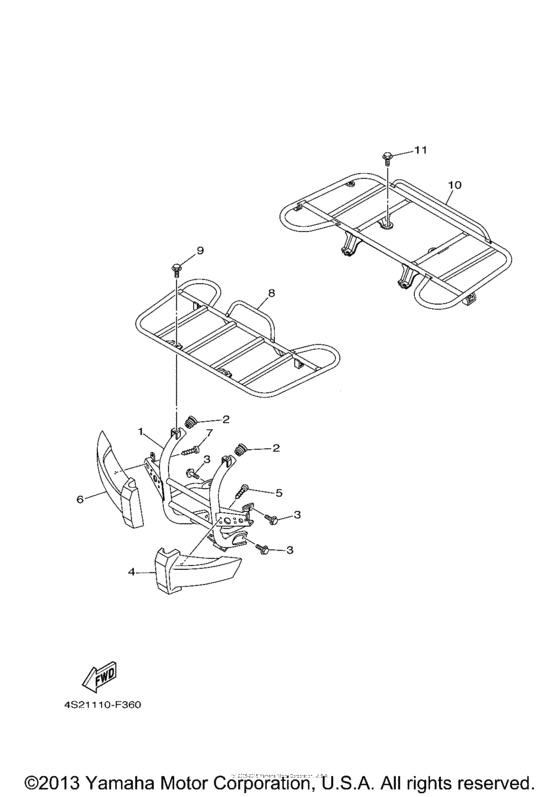

Guard Diagram Yamaha GRIZZLY 350 Grizzly 350 4WD IRS
- Model code
- YFM35FGIW
- Engine Capacity
- 348
- Year
- 2007
- Sales region
- USA
- Power
- 21 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Grizzly 350 4WD IRS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1D9-F845N-01-00
Bar, Carry Front
|
1D9-F845N-01-00 |
— | ||
|
2
|
2
5KM-2482H-01-00 Cap |
5KM-2482H-01-00 |
from US $3.83 |
||
|
3
|
3
958-1P080-12-00
Bolt, Flange
|
958-1P080-12-00 |
— | ||
| replacement | |||||
|
3
|
3
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
4
|
4
1D9-F8415-00-00 Damper 1 |
1D9-F8415-00-00 |
US $92.45 |
||
|
5
|
5
97707-60016-00 Screw, Tapping |
97707-60016-00 |
from US $1.98 |
||
|
6
|
6
1D9-F8416-00-00 Damper 2 |
1D9-F8416-00-00 |
US $100.22 |
||
|
7
|
7
97707-60016-00 Screw, Tapping |
97707-60016-00 |
from US $1.98 |
||
|
8
|
8
5ND-F4841-01-00 Carrier, Front |
5ND-F4841-01-00 |
US $376.63 |
||
|
9
|
9
958-1P080-12-00
Bolt, Flange
|
958-1P080-12-00 |
— | ||
| replacement | |||||
|
9
|
9
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
10
|
10
5TE-F4842-00-00 Carrier, Rear |
5TE-F4842-00-00 |
US $630.38 |
||
|
11
|
11
958-1P080-12-00
Bolt, Flange
|
958-1P080-12-00 |
— | ||
| replacement | |||||
|
11
|
11
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
