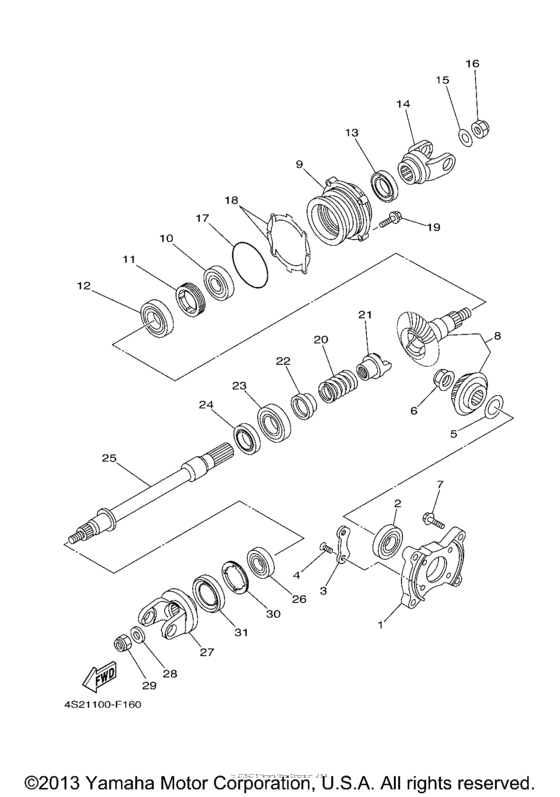

Middle drive gear Diagram Yamaha GRIZZLY 350 Grizzly 350 4WD IRS
- Model code
- YFM35FGIW
- Engine Capacity
- 348
- Year
- 2007
- Sales region
- USA
- Power
- 21 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Grizzly 350 4WD IRS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5UH-17521-00-00 Housing, Bearing |
5UH-17521-00-00 |
US $60.52 |
||
|
2
|
2
93306-20532-00 Bearing |
93306-20532-00 |
from US $27.06 |
||
|
3
|
3
11H-15383-02-00 Plate, Bearing Cover |
11H-15383-02-00 |
from US $9.35 |
||
|
4
|
4
90149-08013-00 Screw |
90149-08013-00 |
from US $1.34 |
||
|
5
|
5
5KM-17531-50-00 Shim, Pinion (0.5T)0.5T UR |
5KM-17531-50-00 |
from US $1.70 |
||
|
5
|
5
5KM-17531-00-00 Shim, Pinion (0.1T)0.1T UR |
5KM-17531-00-00 |
from US $1.70 |
||
|
5
|
5
5KM-17531-10-00 Shim, Pinion (0.15T)0.15T UR |
5KM-17531-10-00 |
from US $1.70 |
||
|
5
|
5
5KM-17531-20-00 Shim, Pinion (0.2T)0.2T UR |
5KM-17531-20-00 |
from US $1.70 |
||
|
5
|
5
5KM-17531-70-00 Shim, Pinion (0.6T)0.6T UR |
5KM-17531-70-00 |
from US $2.41 |
||
|
5
|
5
5KM-17531-60-00 Shim, Pinion (0.55T)0.55T UR |
5KM-17531-60-00 |
from US $2.41 |
||
|
5
|
5
5KM-17531-40-00 Shim, Pinion (0.4T)0.4T UR |
5KM-17531-40-00 |
from US $1.70 |
||
|
5
|
5
5KM-17531-30-00 Shim, Pinion (0.3T)0.3T UR |
5KM-17531-30-00 |
from US $1.70 |
||
|
6
|
6
90179-22015-00 Nut |
90179-22015-00 |
from US $24.37 |
||
|
7
|
7
95817-08030-00 Bolt, Flange |
95817-08030-00 |
from US $1.07 |
||
|
8
|
8
5UH-17530-00-00 Pinion Set |
5UH-17530-00-00 |
US $292.77 |
||
|
9
|
9
5GH-17551-00-00 Housing, Bearing |
5GH-17551-00-00 |
from US $69.10 |
||
|
10
|
10
93306-30538-00 Bearing |
93306-30538-00 |
from US $46.84 |
||
| replacement | |||||
|
10
|
10
933-06305-60-00 Bearing(3Rr) |
933-06305-60-00 |
from US $59.18 |
||
|
11
|
11
90179-65305-00 Nut |
90179-65305-00 |
from US $22.81 |
||
|
12
|
12
933-06207-15-00
Bearing
|
933-06207-15-00 |
— | ||
| replacements | |||||
|
12
|
12
93306-20712-00 Bearing (8U9) |
93306-20712-00 |
from US $37.70 |
||
|
12
|
12
93306-20716-00 Bearing |
93306-20716-00 |
from US $49.32 |
||
|
13
|
13
93102-35012-00 Oil Seal |
93102-35012-00 |
from US $9.92 |
||
|
14
|
14
1D9-17556-00-00 Yoke, Joint (6 Splines)SPLINES |
1D9-17556-00-00 |
US $134.82 |
||
|
15
|
15
90201-14633-00 Washer, Plate |
90201-14633-00 |
from US $7.65 |
||
|
16
|
16
901-85140-09-00 Nut, Self-Locking |
901-85140-09-00 |
from US $7.79 |
||
|
17
|
17
932-10785-44-00 O-Ring |
932-10785-44-00 |
from US $5.64 |
||
|
18
|
18
5GH-17531-60-00 Shim, Pinion (0.6T)0.6T UR |
5GH-17531-60-00 |
from US $2.98 |
||
|
18
|
18
5GH-17531-30-00 Shim, Pinion (0.3T)0.3T UR |
5GH-17531-30-00 |
from US $2.98 |
||
|
18
|
18
5GH-17531-00-00 Shim, Pinion (0.1T)0.1T UR |
5GH-17531-00-00 |
from US $1.34 |
||
|
18
|
18
5GH-17531-10-00 Shim, Pinion (0.15T)0.15T UR |
5GH-17531-10-00 |
from US $1.34 |
||
|
18
|
18
5GH-17531-50-00 Shim, Pinion (0.5T)0.5T UR |
5GH-17531-50-00 |
from US $2.98 |
||
|
18
|
18
5GH-17531-20-00 Shim, Pinion (0.2T)0.2T UR |
5GH-17531-20-00 |
from US $2.98 |
||
|
18
|
18
5GH-17531-40-00 Shim, Pinion (0.4T)0.4T UR |
5GH-17531-40-00 |
from US $2.98 |
||
|
19
|
19
90119-08128-00 Bolt, With Washer |
90119-08128-00 |
from US $1.62 |
||
| replacement | |||||
|
19
|
19
97527-08530-00 Bolt, With Washer |
97527-08530-00 |
from US $0.90 |
||
|
20
|
20
90501-650L5-00 Spring, Compression |
90501-650L5-00 |
from US $22.39 |
||
|
21
|
21
4VR-17527-00-00 Cam, Driven |
4VR-17527-00-00 |
from US $48.08 |
||
|
22
|
22
5UH-17585-00-00 Collar, Gear |
5UH-17585-00-00 |
US $24.44 |
||
|
23
|
23
933-06006-12-00 Bearing |
933-06006-12-00 |
from US $23.09 |
||
|
24
|
24
93102-30170-00 Oil Seal |
93102-30170-00 |
from US $10.91 |
||
| replacement | |||||
|
24
|
24
931-02303-39-00 Oil Seal, Sd-Type |
931-02303-39-00 |
from US $9.26 |
||
|
25
|
25
1D9-1761A-00-00 Shaft, 1 |
1D9-1761A-00-00 |
US $180 |
||
|
26
|
26
93306-20582-00 Bearing |
93306-20582-00 |
from US $26.21 |
||
|
27
|
27
4S2-17556-00-00 Yoke, Joint |
4S2-17556-00-00 |
US $133.18 |
||
|
28
|
28
90201-14633-00 Washer, Plate |
90201-14633-00 |
from US $7.65 |
||
|
29
|
29
901-85140-09-00 Nut, Self-Locking |
901-85140-09-00 |
from US $7.79 |
||
|
30
|
30
90179-55660-00 Nut |
90179-55660-00 |
from US $37.99 |
||
|
31
|
31
93102-35380-00 Oil Seal |
93102-35380-00 |
from US $9.35 |
||
