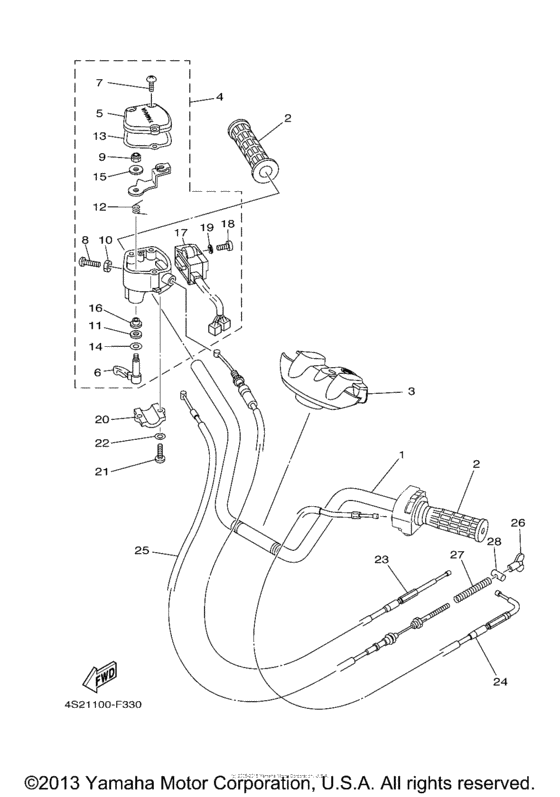

Steering handle & cable Diagram Yamaha GRIZZLY 350 Grizzly 350 4WD IRS
- Model code
- YFM35FGIW
- Engine Capacity
- 348
- Year
- 2007
- Sales region
- USA
- Power
- 21 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Grizzly 350 4WD IRS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5FU-F6111-10-00
Handlebar
|
5FU-F6111-10-00 |
— | ||
| replacement | |||||
|
1
|
1
5FU-F6111-12-00 Handlebar |
5FU-F6111-12-00 |
from US $66.13 |
||
|
2
|
2
5FU-F6241-10-00 Grip |
5FU-F6241-10-00 |
from US $18.61 |
||
|
3
|
3
5ND-F6124-00-00
Protector, Handlebar
|
5ND-F6124-00-00 |
— | ||
| replacement | |||||
|
3
|
3
5ND-F6124-01-00 Protector, Handleb |
5ND-F6124-01-00 |
from US $16.88 |
||
|
4
|
4
5KM-26250-10-00
Throttle Lever Assy
|
5KM-26250-10-00 |
— | ||
| replacements | |||||
|
4
|
4
4S1-26250-08-00 THROTTLE LEVER ASSY |
4S1-26250-08-00 |
from US $221.22 |
||
|
4
|
4
4S1-26250-07-00 |
4S1-26250-07-00 |
US $253.62 |
||
|
5
|
5
4KB-2628F-10-00 Cap, Gear |
4KB-2628F-10-00 |
from US $19.69 |
||
|
6
|
6
1NV-2625G-01-00 Lever, Throttle |
1NV-2625G-01-00 |
from US $41.66 |
||
|
7
|
7
90149-04278-00 Screw |
90149-04278-00 |
from US $1.34 |
||
|
8
|
8
985-07050-20-00
Screw, Pan Head(4My)
|
985-07050-20-00 |
— | ||
| replacement | |||||
|
8
|
8
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.34 |
||
|
9
|
9
95607-05100-00 Nut, U |
95607-05100-00 |
from US $1.98 |
||
| replacement | |||||
|
9
|
9
95617-05100-00 Nut, U |
95617-05100-00 |
from US $1.98 |
||
|
10
|
10
95307-05700-00 Nut |
95307-05700-00 |
from US $2.83 |
||
| replacement | |||||
|
10
|
10
953-17057-00-00 Nut |
953-17057-00-00 |
from US $2.42 |
||
|
11
|
11
93104-09025-00 Oil Seal |
93104-09025-00 |
from US $3.68 |
||
|
12
|
12
1NV-26304-00-00 Spring |
1NV-26304-00-00 |
from US $6.52 |
||
|
13
|
13
4KB-2628G-00-00 Gasket |
4KB-2628G-00-00 |
from US $5.93 |
||
|
14
|
14
1NV-26129-00-00 Washer |
1NV-26129-00-00 |
from US $2.69 |
||
|
15
|
15
1NV-26398-00-00
Washer, Special
|
1NV-26398-00-00 |
— | ||
| replacement | |||||
|
15
|
15
53L-83909-00-00
Washer, Special
|
53L-83909-00-00 |
— | ||
|
16
|
16
1NV-2625K-00-00 Collar |
1NV-2625K-00-00 |
from US $4.53 |
||
|
17
|
17
5KM-83976-10-00 Switch, Handle 1 |
5KM-83976-10-00 |
from US $139.54 |
||
| replacements | |||||
|
17
|
17
4S1-83976-08-00 SWITCH, HANDLE 1 |
4S1-83976-08-00 |
from US $139.54 |
||
|
17
|
17
4S1-83976-07-00 |
4S1-83976-07-00 |
US $147.85 |
||
|
18
|
18
98507-04016-00 Screw, Pan Head |
98507-04016-00 |
from US $1.42 |
||
| replacement | |||||
|
18
|
18
985-17040-16-00 Screw, Pan Head |
985-17040-16-00 |
from US $1.13 |
||
|
19
|
19
92907-04600-00 Washer(Jf2) |
92907-04600-00 |
from US $1.07 |
||
|
20
|
20
4V4-82913-00-00 Holder, Lever Lower 1 |
4V4-82913-00-00 |
from US $17 |
||
|
21
|
21
985-07050-20-00
Screw, Pan Head(4My)
|
985-07050-20-00 |
— | ||
| replacement | |||||
|
21
|
21
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.34 |
||
|
22
|
22
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.07 |
||
|
23
|
23
5GH-26311-01-00 Cable, Throttle 1 |
5GH-26311-01-00 |
from US $31.83 |
||
| replacements | |||||
|
23
|
23
5GH-26311-10-00 Cable, Throttle 1 |
5GH-26311-10-00 |
US $35.51 |
||
|
23
|
23
5GH-26311-11-00 CABLE THROTTLE 1 |
5GH-26311-11-00 |
from US $18.20 |
||
|
24
|
24
5VH-F6331-00-00 Cable, Starter 1 |
5VH-F6331-00-00 |
US $21.11 |
||
| replacement | |||||
|
24
|
24
5VH-F6331-01-00 Cable, Starter 1 |
5VH-F6331-01-00 |
from US $13.34 |
||
|
25
|
25
4S2-F6341-00-00 Wire, Brake 1 |
4S2-F6341-00-00 |
US $72.72 |
||
|
26
|
26
4S1-F6343-00-00 Nut, Adjusting |
4S1-F6343-00-00 |
US $11.07 |
||
|
27
|
27
90501-10782-00 Spring, Compression |
90501-10782-00 |
from US $1.84 |
||
|
28
|
28
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.56 |
||
