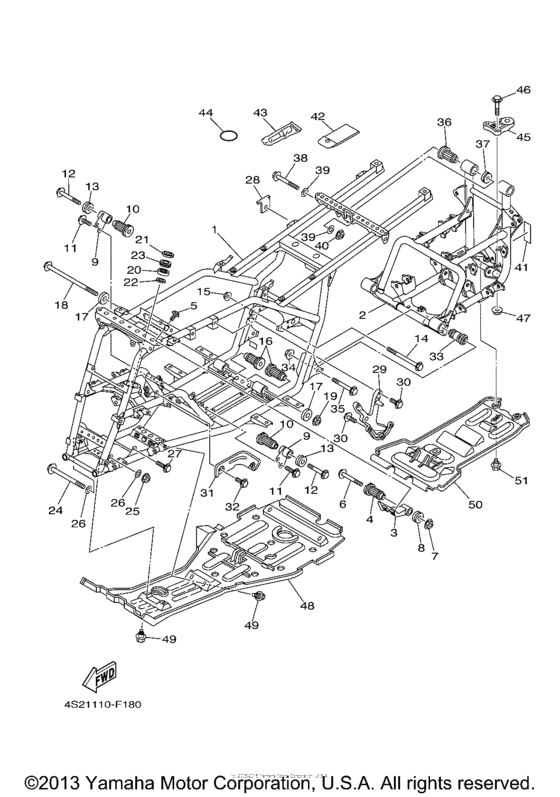

Frame Diagram Yamaha GRIZZLY 350 Grizzly 350 4WD IRS
- Model code
- YFM35FGIZL
- Engine Capacity
- 348
- Year
- 2010
- Sales region
- USA
- Power
- 21 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Grizzly 350 4WD IRS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4S2-F1110-11-00 Frame Comp |
4S2-F1110-11-00 |
US $1,176.57 |
||
| replacement | |||||
|
1
|
1
4S2-F1110-12-00 Frame Comp |
4S2-F1110-12-00 |
US $1,141.11 |
||
|
2
|
2
4S2-F111B-12-00 Frame Sub Comp |
4S2-F111B-12-00 |
US $1,097.33 |
||
|
3
|
3
5UH-F1315-01-00 Stay, Engine 2 |
5UH-F1315-01-00 |
US $17.60 |
||
|
4
|
4
5UH-E5336-00-00 Damper, Engine Mount 3 |
5UH-E5336-00-00 |
from US $20.14 |
||
|
5
|
5
95812-08012-00 Bolt, Flange |
95812-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
5
|
5
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
6
|
6
95812-10110-00 Bolt, Flange |
95812-10110-00 |
from US $3.40 |
||
|
7
|
7
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
|
8
|
8
5ND-F1486-00-00 Damper 2 |
5ND-F1486-00-00 |
US $12.20 |
||
|
9
|
9
5UH-F1316-01-00 Stay, Engine 3 |
5UH-F1316-01-00 |
US $12.80 |
||
|
10
|
10
5UH-E5336-00-00 Damper, Engine Mount 3 |
5UH-E5336-00-00 |
from US $20.14 |
||
|
11
|
11
95812-08012-00 Bolt, Flange |
95812-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
11
|
11
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
12
|
12
958-12100-80-00 Bolt, Flange |
958-12100-80-00 |
from US $3.40 |
||
|
13
|
13
5ND-F1486-00-00 Damper 2 |
5ND-F1486-00-00 |
US $12.20 |
||
|
14
|
14
90105-10193-00 Bolt, Flange |
90105-10193-00 |
from US $9.21 |
||
|
15
|
15
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
|
16
|
16
5UH-E5336-00-00 Damper, Engine Mount 3 |
5UH-E5336-00-00 |
from US $20.14 |
||
|
17
|
17
5ND-F1488-00-00 Damper |
5ND-F1488-00-00 |
US $4.30 |
||
|
18
|
18
90105-10284-00 Bolt, Flange |
90105-10284-00 |
US $10.80 |
||
|
19
|
19
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
|
20
|
20
93306-203YN-00 Bearing |
93306-203YN-00 |
from US $12.60 |
||
|
21
|
21
93102-25081-00 Oil Seal |
93102-25081-00 |
from US $3.64 |
||
|
22
|
22
93102-25099-00 Oil Seal |
93102-25099-00 |
from US $6.96 |
||
|
23
|
23
2GU-23872-00-00 Holder, Bearing |
2GU-23872-00-00 |
from US $11.76 |
||
|
24
|
24
901-05102-30-00 Bolt, Flange |
901-05102-30-00 |
from US $5.38 |
||
|
25
|
25
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
|
26
|
26
90201-10035-00 Washer, Plate |
90201-10035-00 |
from US $1.34 |
||
|
27
|
27
95812-10025-00 Bolt, Flange |
95812-10025-00 |
US $1.28 |
||
| replacement | |||||
|
27
|
27
95817-10025-00 Bolt, Flange |
95817-10025-00 |
from US $1.07 |
||
|
28
|
28
5ND-F1446-01-00 Stay, Muffler 2 |
5ND-F1446-01-00 |
US $6.99 |
||
|
29
|
29
5ND-F1585-01-00 Arm |
5ND-F1585-01-00 |
US $49.45 |
||
|
30
|
30
95822-08020-00 Bolt, Flange |
95822-08020-00 |
from US $1.07 |
||
| replacement | |||||
|
30
|
30
958-17080-20-00 Bolt, Flange |
958-17080-20-00 |
from US $0.85 |
||
|
31
|
31
5UH-F2825-00-00 Protector 1 |
5UH-F2825-00-00 |
US $3.37 |
||
|
32
|
32
95812-06010-00 Bolt, Flange |
95812-06010-00 |
from US $1.07 |
||
| replacement | |||||
|
32
|
32
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.07 |
||
|
33
|
33
5ND-F2123-00-00 Bush 1 |
5ND-F2123-00-00 |
from US $8.99 |
||
|
34
|
34
95602-12200-00 Nut, Self-Locking |
95602-12200-00 |
from US $3.12 |
||
|
35
|
35
90105-12057-00 Bolt, Flange |
90105-12057-00 |
from US $6.52 |
||
|
36
|
36
1D9-E5336-00-00 Damper, Engine Mount 3 |
1D9-E5336-00-00 |
US $16.70 |
||
|
37
|
37
5ND-F1486-00-00 Damper 2 |
5ND-F1486-00-00 |
US $12.20 |
||
|
38
|
38
90105-10272-00 Bolt, Flange |
90105-10272-00 |
from US $2.83 |
||
|
39
|
39
90201-10035-00 Washer, Plate |
90201-10035-00 |
from US $1.34 |
||
|
40
|
40
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
|
41
|
41
5ND-F151K-00-00 Label 7ENGLISH |
5ND-F151K-00-00 |
US $26.99 |
||
|
42
|
42
5ND-F8100-00-00 Tool Kit |
5ND-F8100-00-00 |
US $25.76 |
||
|
43
|
43
1NV-2811A-01-00 Gauge, Air |
1NV-2811A-01-00 |
from US $27.34 |
||
|
44
|
44
93210-64297-00 O-Ring |
93210-64297-00 |
from US $3.54 |
||
|
45
|
45
1D9-F8488-01-00 Hook |
1D9-F8488-01-00 |
US $39.49 |
||
|
46
|
46
95822-10040-00 Bolt, Flange |
95822-10040-00 |
from US $2.69 |
||
| replacement | |||||
|
46
|
46
958-14100-40-00 Bolt, Flange |
958-14100-40-00 |
from US $2.69 |
||
|
47
|
47
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
|
48
|
48
5ND-F147A-02-00 Guard, Engine 1 |
5ND-F147A-02-00 |
US $79.61 |
||
| replacement | |||||
|
48
|
48
5ND-F147A-03-00 Guard, Engine 1 |
5ND-F147A-03-00 |
US $81.59 |
||
|
49
|
49
90109-06172-00 Bolt |
90109-06172-00 |
from US $1.34 |
||
|
50
|
50
1D9-F840K-01-00
