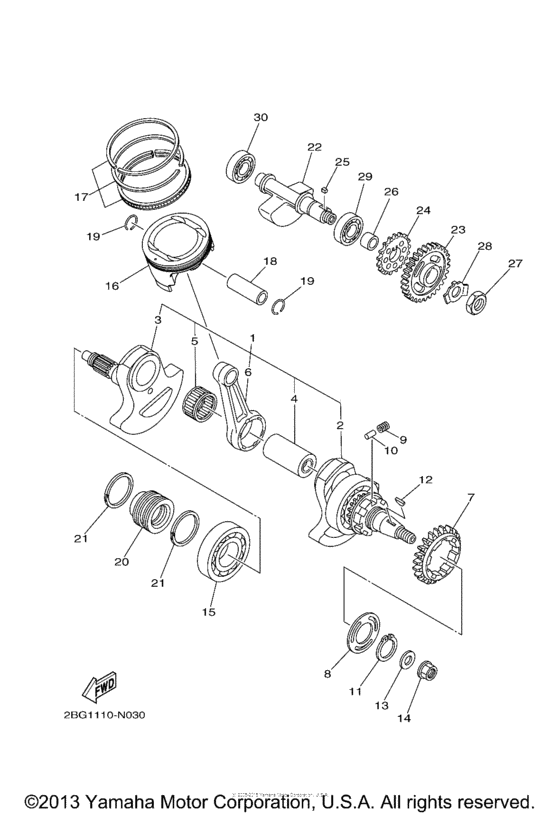

Crankshaft & Piston Diagram Yamaha GRIZZLY 700 Grizzly 700 Hunter
- Model code
- 2ES4
- Engine Capacity
- 700
- Year
- 2014
- Sales region
- USA (010)
- Базовая модель
- YFM700DHEH
- Colour
- Yamaha Black
- Power
- 47 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Grizzly 700 Hunter
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2BG-11400-00-00 Crankshaft Assy |
2BG-11400-00-00 |
from US $678.48 |
||
| replacement | |||||
|
1
|
1
2BG-11400-10-00 CRANKSHAFT ASSY |
2BG-11400-10-00 |
from US $678.48 |
||
|
2
|
2
3B4-11401-09-00 Crank Sub Assy 1 |
3B4-11401-09-00 |
from US $335.73 |
||
|
3
|
3
3B4-11402-09-00 Crank Sub Assy 2 |
3B4-11402-09-00 |
from US $236.25 |
||
|
4
|
4
5VK-11681-01-00 Pin, Crank 1 |
5VK-11681-01-00 |
from US $63.48 |
||
|
5
|
5
933-10840-37-00 Bearing |
933-10840-37-00 |
from US $55.22 |
||
|
6
|
6
2BG-11651-00-00 Rod, Connecting |
2BG-11651-00-00 |
from US $61.50 |
||
|
7
|
7
1HP-11536-00-00 Gear, Drive (44T)44T |
1HP-11536-00-00 |
US $174.26 |
||
|
8
|
8
5KM-11565-00-00 Washer, Bearing Cover |
5KM-11565-00-00 |
from US $8.08 |
||
|
9
|
9
90501-220A1-00 Spring, Compression |
90501-220A1-00 |
from US $1.84 |
||
|
10
|
10
93606-09002-00 Pin, Dowel |
93606-09002-00 |
from US $1.34 |
||
|
11
|
11
990-09354-00-00
Circlip (6U2)
6U2 |
990-09354-00-00 |
— | ||
| replacement | |||||
|
11
|
11
93410-35M10-00 Circlip (6U2)6U2 |
93410-35M10-00 |
from US $4.11 |
||
|
12
|
12
90280-05001-00 Key, Woodruff |
90280-05001-00 |
from US $9.35 |
||
|
13
|
13
90201-16013-00 Washer, Plate |
90201-16013-00 |
from US $8.60 |
||
|
14
|
14
90179-16004-00 Nut |
90179-16004-00 |
from US $13.74 |
||
|
15
|
15
93306-30810-00 Bearing |
93306-30810-00 |
from US $54.56 |
||
|
16
|
16
2BG-11631-00-00 Piston (Std) |
2BG-11631-00-00 |
from US $94.24 |
||
|
17
|
17
1S3-11603-10-00 Piston Ring Set (Std) |
1S3-11603-10-00 |
from US $29.76 |
||
|
18
|
18
5VK-11633-00-00 Pin, Piston |
5VK-11633-00-00 |
from US $28.12 |
||
|
19
|
19
934-50241-54-00 Circlip |
934-50241-54-00 |
from US $1.66 |
||
|
20
|
20
3B4-16181-00-00 Spacer 1 |
3B4-16181-00-00 |
from US $59.13 |
||
|
21
|
21
2BG-11447-00-00 Seal, Crank |
2BG-11447-00-00 |
from US $7.65 |
||
|
22
|
22
2BG-11454-00-00 Weight 1 |
2BG-11454-00-00 |
from US $102.93 |
||
|
23
|
23
1HP-11531-10-00 Gear, Balance Weight |
1HP-11531-10-00 |
US $151.47 |
||
|
24
|
24
1HP-13354-00-00 Sprocket, Drive |
1HP-13354-00-00 |
US $65.38 |
||
|
25
|
25
902-82050-13-00
Key, Straight
|
902-82050-13-00 |
— | ||
| replacement | |||||
|
25
|
25
902-82050-65-00 Key, Straight |
902-82050-65-00 |
from US $1.66 |
||
|
26
|
26
903-87240-01-00 Collar |
903-87240-01-00 |
US $27.97 |
||
|
27
|
27
90170-18003-00 Nut |
90170-18003-00 |
from US $8.93 |
||
|
28
|
28
902-15180-01-00 Washer, Lock |
902-15180-01-00 |
from US $3.26 |
||
|
29
|
29
93306-30534-00 Bearing (11H) |
93306-30534-00 |
from US $60.51 |
||
| replacement | |||||
|
29
|
29
933-06305-60-00 Bearing(3Rr) |
933-06305-60-00 |
from US $59.18 |
||
|
30
|
30
93306-30438-00 Bearing |
93306-30438-00 |
from US $32.44 |
||
| replacements | |||||
|
30
|
30
933-06304-42-00 Bearing |
933-06304-42-00 |
from US $26.21 |
||
|
30
|
30
93306-30421-00 Bearing |
93306-30421-00 |
from US $32.44 |
||
