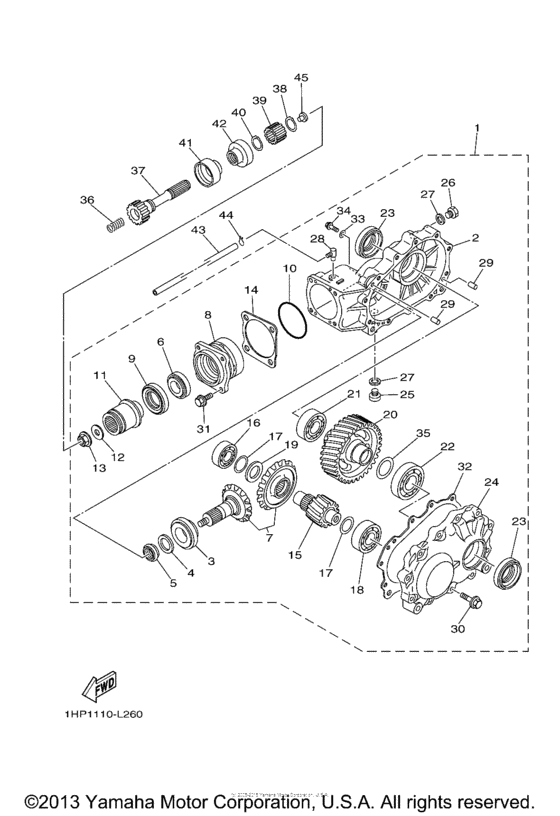

Drive shaft Diagram Yamaha GRIZZLY 700 Grizzly 700 Hunter
- Model code
- 2ES4
- Engine Capacity
- 700
- Year
- 2014
- Sales region
- USA (010)
- Базовая модель
- YFM700DHEH
- Colour
- Yamaha Black
- Power
- 47 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Grizzly 700 Hunter
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1HP-46101-00-00 Rear Axle Gear Case Assy |
1HP-46101-00-00 |
from US $1,242.12 |
||
|
2
|
2
3B4-46151-00-00 Housing, Drive Shaft |
3B4-46151-00-00 |
from US $186.52 |
||
|
3
|
3
93332-00046-00 Bearing |
93332-00046-00 |
from US $39.24 |
||
|
4
|
4
90201-25634-00 Washer, Plate |
90201-25634-00 |
from US $8.64 |
||
|
5
|
5
3B4-46129-00-00 Spacer, Expansion |
3B4-46129-00-00 |
from US $5.38 |
||
|
6
|
6
93332-00053-00 Bearing |
93332-00053-00 |
from US $33.15 |
||
|
7
|
7
3B4-461A0-00-00 Ring Gear Set |
3B4-461A0-00-00 |
from US $262.50 |
||
|
8
|
8
3B4-46144-00-00 Housing, Pinion Bearing |
3B4-46144-00-00 |
from US $86.49 |
||
|
9
|
9
93102-35380-00 Oil Seal |
93102-35380-00 |
from US $9.35 |
||
|
10
|
10
93210-626A7-00 O-Ring |
93210-626A7-00 |
from US $6.41 |
||
|
11
|
11
3B4-46126-10-00 Coupling |
3B4-46126-10-00 |
from US $88.15 |
||
|
12
|
12
90201-12029-00 Washer, Plate |
90201-12029-00 |
from US $4.53 |
||
|
13
|
13
90179-12005-00 Nut |
90179-12005-00 |
from US $4.79 |
||
| replacement | |||||
|
13
|
13
90179-12325-00 Nut |
90179-12325-00 |
from US $7.65 |
||
|
14
|
14
2HR-46127-00-50 Shim, Drive Piston (0.50T)0.50T UR |
2HR-46127-00-50 |
from US $7.79 |
||
|
14
|
14
2HR-46127-00-40 Shim, Drive Piston (0.40T)0.40T UR |
2HR-46127-00-40 |
from US $7.79 |
||
|
14
|
14
2HR-46127-00-25 Shim, Drive Pinion0.25T UR |
2HR-46127-00-25 |
from US $7.79 |
||
| replacement | |||||
|
14
|
14
2HR-46127-00-30 Shim, Drive Piston (0.30T)0.25T UR |
2HR-46127-00-30 |
from US $7.79 |
||
|
14
|
14
2HR-46127-00-30 Shim, Drive Piston (0.30T)0.30T UR |
2HR-46127-00-30 |
from US $7.79 |
||
|
14
|
14
2HR-46127-00-35 Shim, Drive Pinion0.35T UR |
2HR-46127-00-35 |
from US $7.79 |
||
| replacement | |||||
|
14
|
14
2HR-46127-00-40 Shim, Drive Piston (0.40T)0.35T UR |
2HR-46127-00-40 |
from US $7.79 |
||
|
14
|
14
2HR-46127-00-45 Shim, Drive Pinion0.45T UR |
2HR-46127-00-45 |
from US $7.79 |
||
| replacement | |||||
|
14
|
14
2HR-46127-00-50 Shim, Drive Piston (0.50T)0.45T UR |
2HR-46127-00-50 |
from US $7.79 |
||
|
15
|
15
3B4-46316-00-00 Gear, Pinion 1 |
3B4-46316-00-00 |
from US $122.55 |
||
|
16
|
16
933-06205-U0-00
Bearing
|
933-06205-U0-00 |
— | ||
| replacement | |||||
|
16
|
16
93306-205U1-00 Bearing |
93306-205U1-00 |
from US $22.16 |
||
|
17
|
17
3B4-46119-40-00 Shim, Thrust (0.45T)0.45T UR |
3B4-46119-40-00 |
from US $1.70 |
||
|
17
|
17
3B4-46119-30-00 Shim, Thrust (0.40T)0.40T UR |
3B4-46119-30-00 |
from US $1.70 |
||
|
17
|
17
3B4-46119-20-00 Shim, Thrust (0.35T)0.35T UR |
3B4-46119-20-00 |
from US $1.70 |
||
|
17
|
17
3B4-46119-50-00 Shim, Thrust (0.50T)0.50T UR |
3B4-46119-50-00 |
from US $1.70 |
||
|
17
|
17
3B4-46119-00-00 Shim, Thrust (0.25T)0.25T UR |
3B4-46119-00-00 |
from US $1.70 |
||
|
17
|
17
3B4-46119-10-00 Shim, Thrust (0.30T)0.30T UR |
3B4-46119-10-00 |
from US $1.70 |
||
|
18
|
18
93306-30534-00 Bearing (11H) |
93306-30534-00 |
from US $60.51 |
||
| replacement | |||||
|
18
|
18
933-06305-60-00 Bearing(3Rr) |
933-06305-60-00 |
from US $59.18 |
||
|
19
|
19
3B4-4621F-30-00 Shim,thrust (5.4T)5.4T UR |
3B4-4621F-30-00 |
from US $8.93 |
||
|
19
|
19
3B4-4621F-20-00 Shim,thrust (5.1T)5.1T UR |
3B4-4621F-20-00 |
from US $8.93 |
||
|
19
|
19
3B4-4621F-00-00 Shim,thrust (4.5T)4.5T UR |
3B4-4621F-00-00 |
from US $8.93 |
||
|
19
|
19
3B4-4621F-10-00 Shim,thrust (4.8T)4.8T UR |
3B4-4621F-10-00 |
from US $8.93 |
||
|
20
|
20
3B4-46326-01-00 Gear, Wheel 1 |
3B4-46326-01-00 |
from US $178.23 |
||
|
21
|
21
93306-00704-00 Bearing |
93306-00704-00 |
from US $25.08 |
||
| replacement | |||||
|
21
|
21
933-06007-02-00 Bearing |
933-06007-02-00 |
from US $21.16 |
||
|
22
|
22
933-06207-U0-00 Bearing |
933-06207-U0-00 |
from US $26.46 |
||
|
23
|
23
93102-35380-00 Oil Seal |
93102-35380-00 |
from US $9.35 |
||
|
24
|
24
3B4-46152-00-00 Housing, Bearing |
3B4-46152-00-00 |
from US $91.32 |
||
|
25
|
25
90340-14002-00 Plug, Straight Screw |
90340-14002-00 |
from US $3.64 |
||
|
26
|
26
90340-14029-00 Plug, Straight Screw |
90340-14029-00 |
from US $2.32 |
||
|
27
|
27
214-11198-01-00 Washer-gasket |
214-11198-01-00 |
from US $1.66 |
||
|
28
|
28
5UG-15371-00-00 Breather |
5UG-15371-00-00 |
from US $15.87 |
||
|
29
|
29
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
29
|
29
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.66 |
||
|
29
|
29
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
30
|
30
95822-08035-00 Bolt, Flange |
95822-08035-00 |
from US $1.07 |
||
| replacement | |||||
|
30
|
30
95817-08035-00 Bolt, Flange |
95817-08035-00 |
from US $1.07 |
||
|
31
|
31
95822-08025-00 Bolt, Flange |
95822-08025-00 |
from US $1.07 |
||
| replacement | |||||
|
31
|
31
95817-08025-00 Bolt, Flange |
95817-08025-00 |
from US $1.07 |
||
|
32
|
32
3B4-4631A-01-00 Gskt., Case |
3B4-4631A-01-00 |
from US $8.78 |
||
|
33
|
33
90201-08087-00 Washer, Plate 3411117500 |
90201-08087-00 |
from US $1.28 |
||
|
34
|
34
95022-08012-00 Bolt, Flange |
95022-08012-00 |
from US $1.56 |
||
|
35
|
35
3B4-46344-50-00 Shim (0.50T)0.50T UR |
3B4-46344-50-00 |
from US $1.70 |
||
|
35
|
35
3B4-46344-40-00 Shim (0.45T)0.45T UR |
3B4-46344-40-00 |
from US $1.70 |
||
|
35
|
35
3B4-46344-00-00 Shim (0.25T)0.25T UR |
3B4-46344-00-00 |
from US $1.70 |
||
|
35
|
35
3B4-46344-10-00 Shim (0.30T)0.30T UR |
3B4-46344-10-00 |
from US $1.70 |
||
|
35
|
35
3B4-46344-20-00 Shim (0.35T)0.35T UR |
3B4-46344-20-00 |
from US $1.70 |
||
|
35
|
35
3B4-46344-30-00 Shim (0.40T)0.40T UR |
3B4-46344-30-00 |
from US $1.70 |
||
|
36
|
36
90501-20361-00 Spring, Compression |
90501-20361-00 |
from US $4.53 |
||
|
37
|
37
1HP-G6172-00-00 Shaft, Drive |
1HP-G6172-00-00 |
from US $62.48 |
||
|
38
|
38
99009-19400-00 Circlip |
99009-19400-00 |
from US $1.56 |
||
|
39
|
39
5KM-46126-00-00 Coupling |
5KM-46126-00-00 |
from US $28.90 |
||
|
40
|
40
93410-22039-00 Circlip |
93410-22039-00 |
from US $1.70 |
||
|
41
|
41
5KM-46137-00-00 Seal 2 |
5KM-46137-00-00 |
from US $3.98 |
||
|
42
|
42
5KM-46136-00-00 Seal 1 |
5KM-46136-00-00 |
from US $4.11 |
||
|
43
|
43
90445-074F6-00 Hose (L1700) |
90445-074F6-00 |
from US $11.05 |
||
| replacement | |||||
|
43
|
43
90445-070G6-00 Hose (L1700) |
90445-070G6-00 |
from US $11.05 |
||
|
44
|
44
90467-07029-00 Clip |
90467-07029-00 |
from US $1.70 |
||
|
45
|
45
5KM-46559-00-00 Damper |
5KM-46559-00-00 |
from US $2 |
||
