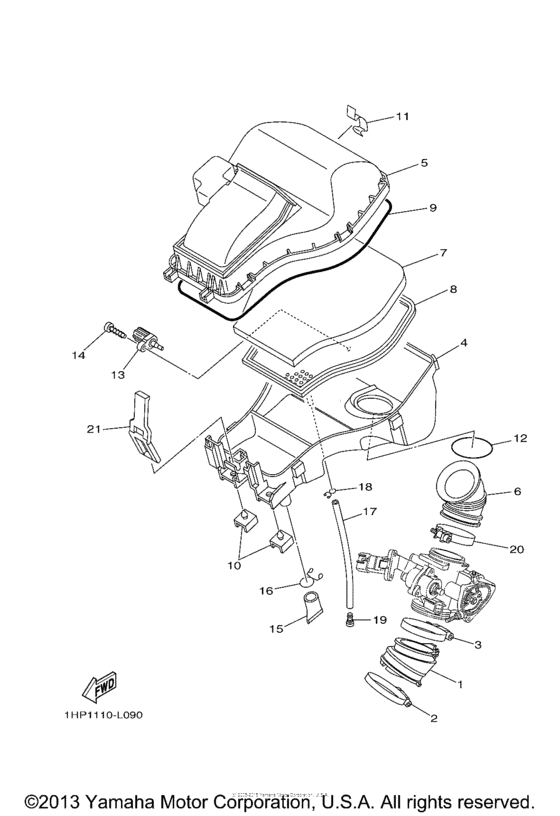

Intake Diagram Yamaha GRIZZLY 700 Grizzly 700 EPS Hunter
- Model code
- 2BG8
- Engine Capacity
- 700
- Year
- 2014
- Sales region
- USA
- Базовая модель
- YFM700PHEH
- Colour
- Yamaha Black
- Power
- 47 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Grizzly 700 EPS Hunter
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3B4-13586-00-00 Joint, Carburetor 1 |
3B4-13586-00-00 |
from US $57.34 |
||
|
2
|
2
90450-72004-00 Hose Clamp Assy |
90450-72004-00 |
from US $16.72 |
||
|
3
|
3
90450-72004-00 Hose Clamp Assy |
90450-72004-00 |
from US $16.72 |
||
|
4
|
4
2BG-E4411-00-00 Case, Air Cleaner 1 |
2BG-E4411-00-00 |
from US $47.80 |
||
|
5
|
5
3B4-14402-03-00 Cap Assy, Air Cleaner |
3B4-14402-03-00 |
from US $78.89 |
||
|
6
|
6
3B4-14453-00-00 Joint, Air Cleaner 1 |
3B4-14453-00-00 |
from US $20.12 |
||
|
7
|
7
1HP-E4451-01-00 Element, Air Cleaner |
1HP-E4451-01-00 |
from US $23.80 |
||
|
8
|
8
1HP-E4472-00-00 Plate, Element |
1HP-E4472-00-00 |
from US $17.05 |
||
|
9
|
9
3B4-14457-00-00 Seal |
3B4-14457-00-00 |
from US $9.63 |
||
|
10
|
10
3B4-14409-00-00 Damper |
3B4-14409-00-00 |
from US $3.68 |
||
|
11
|
11
3B4-14424-00-00 Clip, Cap Fitting |
3B4-14424-00-00 |
from US $4.68 |
||
|
12
|
12
1HP-E4462-00-00 Seal |
1HP-E4462-00-00 |
from US $4.01 |
||
|
13
|
13
8FP-85886-00-00 Sensor, Air Temperature |
8FP-85886-00-00 |
from US $22.81 |
||
|
14
|
14
97702-50520-00 Screw, Tapping |
97702-50520-00 |
from US $0.54 |
||
| replacement | |||||
|
14
|
14
97780-50620-00 Screw, Tapping |
97780-50620-00 |
from US $1.56 |
||
|
15
|
15
59V-14457-00-00 Seal |
59V-14457-00-00 |
from US $2.66 |
||
|
16
|
16
90467-220A1-00 Clip |
90467-220A1-00 |
from US $1.70 |
||
|
17
|
17
91A-20070-20-00 Tube, Flexible Vinyl (L200) |
91A-20070-20-00 |
from US $2.55 |
||
|
18
|
18
90467-100A1-00 Clip |
90467-100A1-00 |
from US $1.28 |
||
|
19
|
19
903-38081-74-00 Plug |
903-38081-74-00 |
from US $1.84 |
||
|
20
|
20
90450-59006-00 Hose Clamp Assy |
90450-59006-00 |
from US $9.58 |
||
| replacement | |||||
|
20
|
20
90450-59005-00 Hose Clamp Assy |
90450-59005-00 |
from US $12.61 |
||
|
21
|
21
3B4-14455-00-00 Band |
3B4-14455-00-00 |
from US $5.24 |
||
