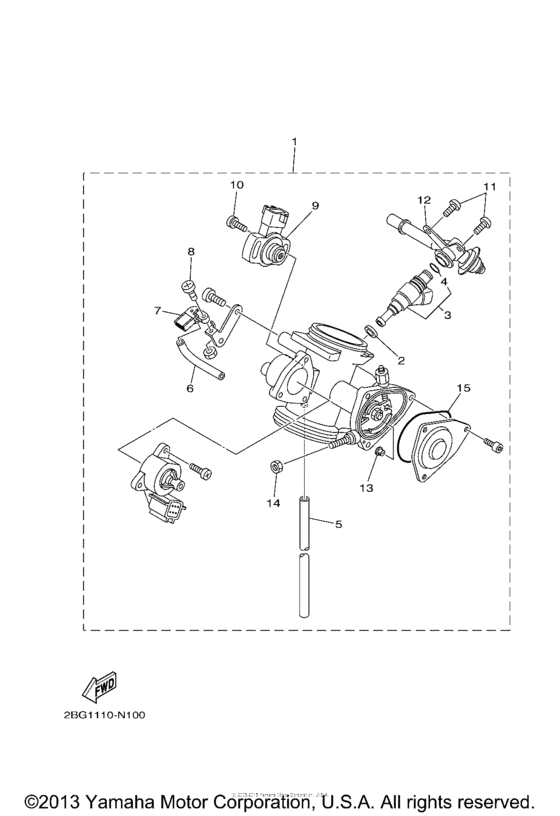

Throttle body assy (1) Diagram Yamaha GRIZZLY 700 Grizzly 700 EPS Hunter
- Model code
- 2BG8
- Engine Capacity
- 700
- Year
- 2014
- Sales region
- USA
- Базовая модель
- YFM700PHEH
- Colour
- Yamaha Black
- Power
- 47 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Grizzly 700 EPS Hunter
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2BG-13750-00-00 Throttle Body Assy |
2BG-13750-00-00 |
from US $860.64 |
||
|
2
|
2
8FP-13556-00-00 Rubber, Injector |
8FP-13556-00-00 |
from US $4.53 |
||
|
3
|
3
3B4-13761-00-00 Injector |
3B4-13761-00-00 |
from US $176.84 |
||
|
4
|
4
5PS-14147-00-00 O-Ring |
5PS-14147-00-00 |
from US $10.06 |
||
|
5
|
5
28P-13543-00-00 Hose, Air |
28P-13543-00-00 |
from US $22.24 |
||
|
6
|
6
5JW-14348-00-00 Pipe 1 |
5JW-14348-00-00 |
from US $5.81 |
||
|
7
|
7
5S7-82380-00-00 Sensor, Pressure |
5S7-82380-00-00 |
from US $143.69 |
||
|
8
|
8
2C0-14216-00-00 Screw |
2C0-14216-00-00 |
from US $2.98 |
||
|
9
|
9
3B4-85885-00-00 Throttle Sensor Assy |
3B4-85885-00-00 |
from US $89.11 |
||
| replacement | |||||
|
9
|
9
3B4-85885-01-00 THROTTLE SENSOR ASSY |
3B4-85885-01-00 |
from US $81.81 |
||
|
10
|
10
8CC-14216-10-00 Screw |
8CC-14216-10-00 |
from US $6.09 |
||
|
11
|
11
985-02060-12-00
Screw, Pan Head
|
985-02060-12-00 |
— | ||
| replacement | |||||
|
11
|
11
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.34 |
||
|
12
|
12
2BG-13160-00-00 Delivery Pipe Assy 1 |
2BG-13160-00-00 |
from US $156.12 |
||
|
13
|
13
1UY-14155-00-00 Guide, Cable |
1UY-14155-00-00 |
from US $9.49 |
||
|
14
|
14
1S3-14161-00-00 Nut, Cable Adjusting |
1S3-14161-00-00 |
from US $1.84 |
||
|
15
|
15
5LP-14147-00-00 O-Ring |
5LP-14147-00-00 |
from US $7.51 |
||
