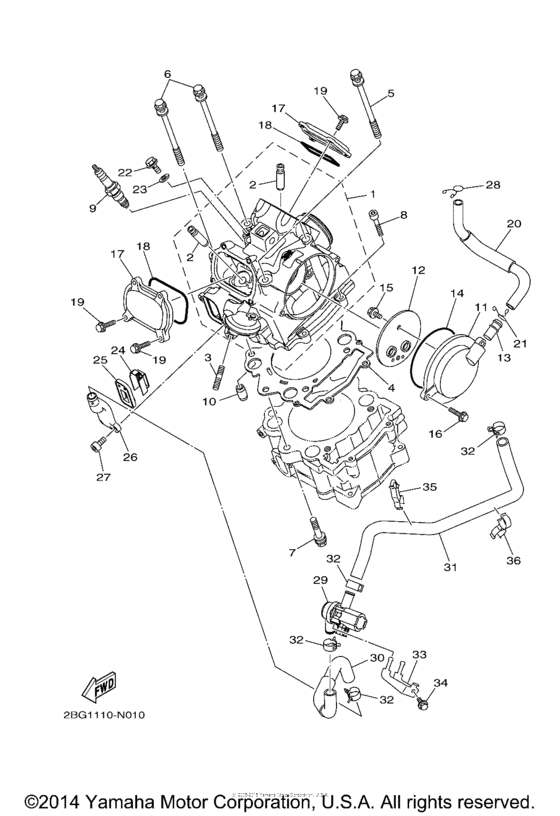

Cylinder head Diagram Yamaha GRIZZLY 700 Grizzly 700 EPS Hunter
- Model code
- B385
- Engine Capacity
- 700
- Year
- 2015
- Sales region
- USA
- Базовая модель
- YFM700PHFH
- Colour
- Yamaha Black
- Power
- 47 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Grizzly 700 EPS Hunter
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2BG-11102-00-00 Cylinder Head Assy |
2BG-11102-00-00 |
from US $790.68 |
||
|
2
|
2
4G0-11133-11-00 Guide, Intake Valve |
4G0-11133-11-00 |
from US $28.12 |
||
|
3
|
3
95612-08625-00 Bolt, Stud |
95612-08625-00 |
from US $1.66 |
||
|
4
|
4
3B4-11181-00-00 Gasket, Cylinder Head 1 |
3B4-11181-00-00 |
from US $28.78 |
||
|
5
|
5
90109-09003-00 Bolt |
90109-09003-00 |
from US $9.60 |
||
|
6
|
6
90109-09002-00 Bolt |
90109-09002-00 |
from US $9.26 |
||
|
7
|
7
90109-09005-00 Bolt |
90109-09005-00 |
from US $5.64 |
||
|
8
|
8
913-12060-30-00
Bolt
|
913-12060-30-00 |
— | ||
| replacement | |||||
|
8
|
8
90110-06138-00 Bolt |
90110-06138-00 |
from US $0.99 |
||
|
9
|
9
CPR-7EA90-00-00 Plug, Spark (Ngk Cpr7Ea) |
CPR-7EA90-00-00 |
US $40.96 |
||
|
10
|
10
93612-16254-00 Pin, Dowel |
93612-16254-00 |
from US $3.32 |
||
|
11
|
11
3B4-11185-00-00 Cover, Cylinder Head Side 3 |
3B4-11185-00-00 |
from US $24.37 |
||
|
12
|
12
3B4-11165-10-00 Plate, Breather |
3B4-11165-10-00 |
from US $4.11 |
||
|
13
|
13
371-11167-01-00 Pipe, Breather 2 |
371-11167-01-00 |
from US $8.36 |
||
|
14
|
14
932-10966-01-00 O-Ring |
932-10966-01-00 |
from US $9.07 |
||
|
15
|
15
95022-06012-00 Bolt, Flange |
95022-06012-00 |
from US $1.07 |
||
|
16
|
16
95022-06020-00 Bolt, Flange |
95022-06020-00 |
from US $1.42 |
||
|
17
|
17
1S3-11186-00-00 Cover, Cylinder Head Side 2 |
1S3-11186-00-00 |
from US $19.69 |
||
|
18
|
18
932-10785-44-00 O-Ring |
932-10785-44-00 |
from US $5.64 |
||
|
19
|
19
95022-06020-00 Bolt, Flange |
95022-06020-00 |
from US $1.42 |
||
|
20
|
20
3B4-11166-01-00 Pipe, Breather 1 |
3B4-11166-01-00 |
from US $18.99 |
||
|
21
|
21
90467-140A4-00 Clip |
90467-140A4-00 |
from US $1.34 |
||
|
22
|
22
90401-08004-00 Bolt, Union |
90401-08004-00 |
from US $5.38 |
||
|
23
|
23
904-30081-19-00
Gasket
|
904-30081-19-00 |
— | ||
| replacement | |||||
|
23
|
23
90201-08087-00 Washer, Plate 3411117500 |
90201-08087-00 |
from US $1.28 |
||
|
24
|
24
2BG-1482K-00-00 Plate |
2BG-1482K-00-00 |
from US $7.65 |
||
|
25
|
25
5JW-14890-00-00 Reed Valve Assy |
5JW-14890-00-00 |
from US $24.48 |
||
|
26
|
26
5JW-14889-00-00 Cap, Case |
5JW-14889-00-00 |
from US $22.39 |
||
|
27
|
27
901-10061-75-00
Bolt, Hexagon Socket Head
|
901-10061-75-00 |
— | ||
| replacements | |||||
|
27
|
27
913-14060-20-00 Bolt |
913-14060-20-00 |
from US $1.07 |
||
|
27
|
27
91312-06020-00 Bolt, Hexagon Socket Head |
91312-06020-00 |
from US $1.21 |
||
|
28
|
28
90467-150A2-00 Clip |
90467-150A2-00 |
from US $1.56 |
||
|
29
|
29
2BG-14840-00-00 Air Cut Valve Assy |
2BG-14840-00-00 |
from US $89.11 |
||
|
30
|
30
2BG-E4882-00-00 Hose, Bend 2 |
2BG-E4882-00-00 |
from US $10.71 |
||
|
31
|
31
2BG-E4883-00-00 Hose, Bend 3 |
2BG-E4883-00-00 |
from US $11.32 |
||
|
32
|
32
90467-17089-00 Clip |
90467-17089-00 |
from US $1.42 |
||
| replacement | |||||
|
32
|
32
90467-17128-00 Clip |
90467-17128-00 |
from US $1.28 |
||
|
33
|
33
2BG-F117A-00-00 Stay |
2BG-F117A-00-00 |
from US $3.89 |
||
|
34
|
34
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.07 |
||
| replacement | |||||
|
34
|
34
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
35
|
35
90464-17006-00 Clamp |
90464-17006-00 |
from US $4.39 |
||
|
36
|
36
904-64180-15-00 Clamp |
904-64180-15-00 |
from US $1.70 |
||
