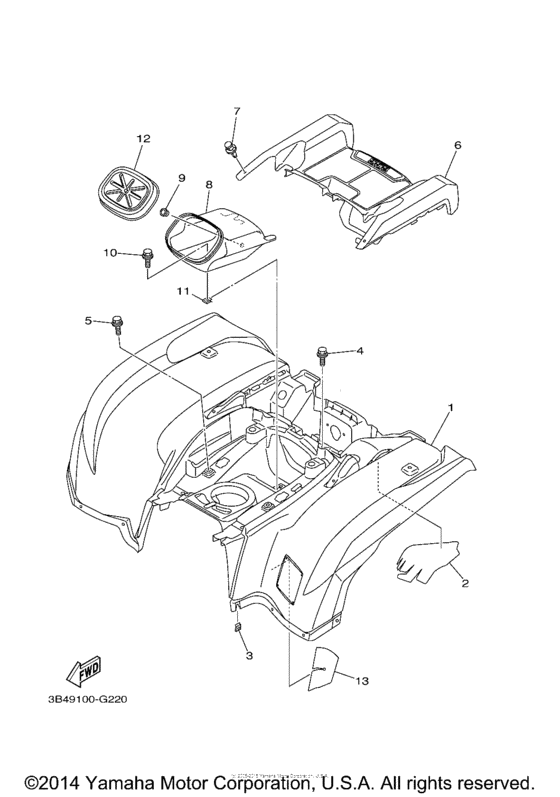

Rear fender Diagram Yamaha GRIZZLY 700 Grizzly 700 EPS Hunter
- Model code
- B385
- Engine Capacity
- 700
- Year
- 2015
- Sales region
- USA
- Базовая модель
- YFM700PHFH
- Colour
- Yamaha Black
- Power
- 47 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Grizzly 700 EPS Hunter
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1HP-F1600-50-00 Rear Fender Assy |
1HP-F1600-50-00 |
US $649.66 |
||
|
2
|
2
3B4-21652-01-00 Protector |
3B4-21652-01-00 |
from US $36.75 |
||
|
3
|
3
901-83060-53-00
Nut, Spring
|
901-83060-53-00 |
— | ||
| replacement | |||||
|
3
|
3
90183-06069-00 Nut, Spring |
90183-06069-00 |
from US $3.54 |
||
|
4
|
4
90119-06152-00 Bolt, With Washer |
90119-06152-00 |
from US $1.35 |
||
|
5
|
5
90119-06152-00 Bolt, With Washer |
90119-06152-00 |
from US $1.35 |
||
|
6
|
6
1HP-F1651-00-00 Cover, Rear Fender |
1HP-F1651-00-00 |
from US $76.13 |
||
|
7
|
7
902-69070-10-00 Rivet |
902-69070-10-00 |
from US $1.70 |
||
|
8
|
8
1HP-F160E-00-00 Box |
1HP-F160E-00-00 |
from US $35.56 |
||
|
9
|
9
90338-09130-00 Plug |
90338-09130-00 |
from US $1.70 |
||
|
10
|
10
90119-06152-00 Bolt, With Washer |
90119-06152-00 |
from US $1.35 |
||
|
11
|
11
901-83060-53-00
Nut, Spring
|
901-83060-53-00 |
— | ||
| replacement | |||||
|
11
|
11
90183-06069-00 Nut, Spring |
90183-06069-00 |
from US $3.54 |
||
|
12
|
12
1HP-F160F-00-00 Lid |
1HP-F160F-00-00 |
from US $5.96 |
||
|
13
|
13
1HP-F1669-00-00 Seal |
1HP-F1669-00-00 |
from US $2.70 |
||
