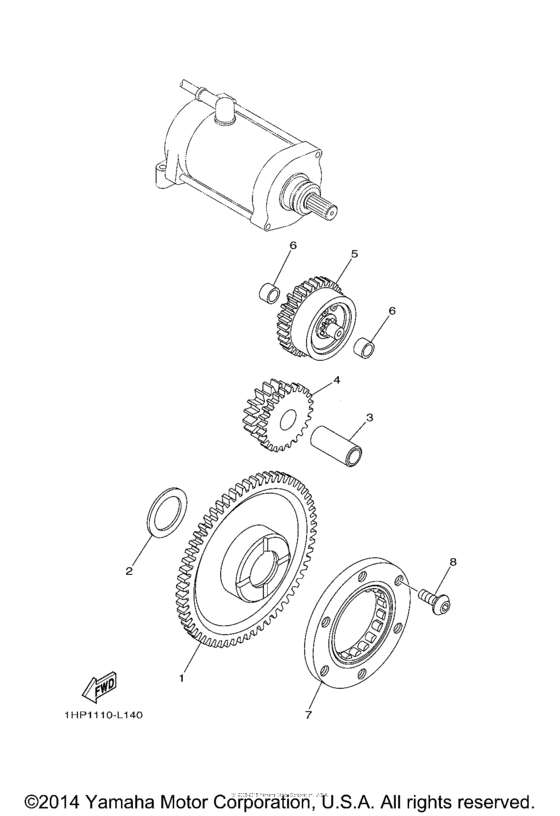

Starter clutch Diagram Yamaha GRIZZLY 700 Grizzly 700 EPS Hunter
- Model code
- B385
- Engine Capacity
- 700
- Year
- 2015
- Sales region
- USA
- Базовая модель
- YFM700PHFH
- Colour
- Yamaha Black
- Power
- 47 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Grizzly 700 EPS Hunter
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1HP-15515-00-00 Gear 3 (49T)49T |
1HP-15515-00-00 |
US $168.76 |
||
|
2
|
2
90201-286K9-00 Washer, Plate (T1.0) |
90201-286K9-00 |
from US $1.98 |
||
|
3
|
3
3B4-15522-00-00 Shaft 2 |
3B4-15522-00-00 |
from US $8.36 |
||
|
4
|
4
3B4-15517-01-00 Gear, Idler 2 (25T/15T)25T/15T |
3B4-15517-01-00 |
from US $75.02 |
||
|
5
|
5
1PE-15560-00-00 Damper Assy |
1PE-15560-00-00 |
US $346.23 |
||
|
6
|
6
90380-10002-00 Bush, Solid |
90380-10002-00 |
from US $1.66 |
||
|
7
|
7
5KM-15590-00-00 Starter One-Way Assy |
5KM-15590-00-00 |
from US $137.33 |
||
|
8
|
8
901-49080-49-00 Screw |
901-49080-49-00 |
from US $1.58 |
||
| replacement | |||||
|
8
|
8
901-49080-42-00 Screw |
901-49080-42-00 |
from US $1.66 |
||
