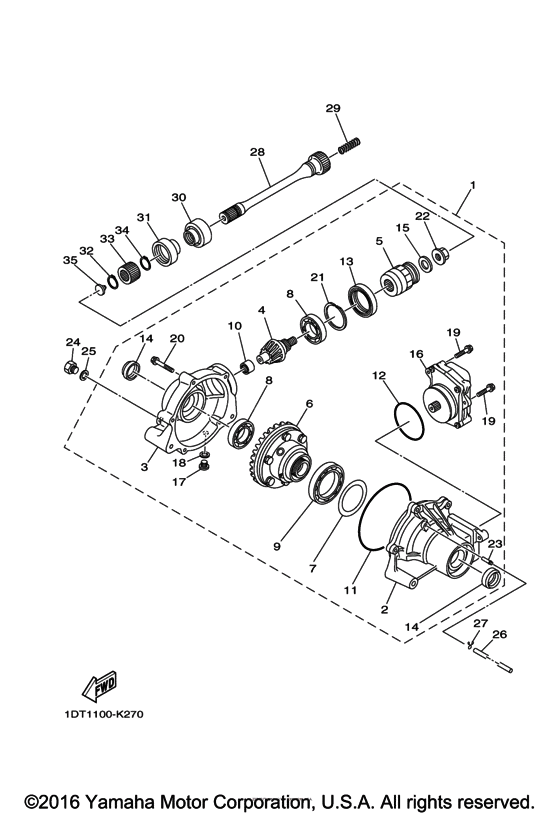

Front Differential Diagram Yamaha GRIZZLY 700 Grizzly 700 EPS Hunter
- Model code
- 2UD6
- Engine Capacity
- 700
- Year
- 2016
- Sales region
- USA
- Базовая модель
- YFM70GPHGH
- Colour
- Yamaha Black
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Grizzly 700 EPS Hunter
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1HP-46160-00-00 Front Axle Gear Case Comp |
1HP-46160-00-00 |
US $2,450.81 |
||
|
2
|
2
3B4-46162-01-00 Housing, Bearing 2 |
3B4-46162-01-00 |
from US $335.73 |
||
|
3
|
3
3B4-46161-00-00 Housing, Shaft Drive 2 |
3B4-46161-00-00 |
from US $174.08 |
||
|
4
|
4
3B4-46141-00-00 Pinion, Drive 2 |
3B4-46141-00-00 |
from US $138.16 |
||
| replacement | |||||
|
4
|
4
1XD-46141-00-00 Pinion, Drive 2 |
1XD-46141-00-00 |
from US $138.16 |
||
|
5
|
5
3B4-67839-10-00 Cupling |
3B4-67839-10-00 |
from US $107.35 |
||
|
6
|
6
3B4-46470-02-00 Limited Slip Diff. Assy |
3B4-46470-02-00 |
from US $743.16 |
||
| replacements | |||||
|
6
|
6
1XD-46470-00-00 Limited Slip Diff. Assy |
1XD-46470-00-00 |
from US $743.16 |
||
|
6
|
6
1XD-46470-01-00 Limited Slip Diff. Assy |
1XD-46470-01-00 |
US $1,180.99 |
||
|
7
|
7
3B4-46117-00-00 Shim, Ring Gear (0.1T)UR |
3B4-46117-00-00 |
from US $7.65 |
||
|
7
|
7
3B4-46117-20-00 Shim, Ring Gear (0.3T)UR |
3B4-46117-20-00 |
from US $7.65 |
||
|
7
|
7
3B4-46117-30-00 Shim, Ring Gear (0.4T)UR |
3B4-46117-30-00 |
from US $7.65 |
||
|
7
|
7
3B4-46117-10-00 Shim, Ring Gear (0.2T)UR |
3B4-46117-10-00 |
from US $7.65 |
||
|
8
|
8
93306-00613-00 Bearing |
93306-00613-00 |
from US $23.09 |
||
| replacement | |||||
|
8
|
8
933-06006-12-00 Bearing |
933-06006-12-00 |
from US $23.09 |
||
|
9
|
9
3B4-46164-00-00 Bearing 1 |
3B4-46164-00-00 |
from US $79.44 |
||
|
10
|
10
3B4-46166-00-00 Bearing 3 |
3B4-46166-00-00 |
from US $21.96 |
||
|
11
|
11
3B4-46134-00-00 O-Ring 1 |
3B4-46134-00-00 |
from US $10.63 |
||
|
12
|
12
3B4-46135-00-00 O-Ring 2 |
3B4-46135-00-00 |
from US $4.68 |
||
|
13
|
13
93105-46001-00 Oil Seal |
93105-46001-00 |
from US $17.20 |
||
|
14
|
14
3B4-46163-00-00 Seal,oil 1 |
3B4-46163-00-00 |
from US $13.56 |
||
|
15
|
15
3B4-47359-00-00 Washer |
3B4-47359-00-00 |
from US $5.38 |
||
|
16
|
16
1HP-4616A-00-00 Servo Motor Comp |
1HP-4616A-00-00 |
from US $414.66 |
||
|
17
|
17
90340-10001-00 Plug, Straight Screw |
90340-10001-00 |
from US $4.39 |
||
|
18
|
18
90430-10003-00 Gasket |
90430-10003-00 |
from US $2.41 |
||
|
19
|
19
95812-06014-00 Bolt, Flange |
95812-06014-00 |
from US $1.34 |
||
|
20
|
20
95812-08040-00 Bolt, Flange |
95812-08040-00 |
from US $1.07 |
||
| replacement | |||||
|
20
|
20
95817-08040-00 Bolt, Flange |
95817-08040-00 |
from US $1.07 |
||
|
21
|
21
3B4-46142-00-00 Ring,hole Snap 1 |
3B4-46142-00-00 |
from US $6.38 |
||
|
22
|
22
4WV-46145-10-00 Nut 1 |
4WV-46145-10-00 |
from US $10.04 |
||
|
23
|
23
5GH-46293-00-00 Tube |
5GH-46293-00-00 |
from US $6.38 |
||
|
24
|
24
90340-14029-00 Plug, Straight Screw |
90340-14029-00 |
from US $2.32 |
||
|
25
|
25
214-11198-01-00 Washer-gasket |
214-11198-01-00 |
from US $1.66 |
||
|
26
|
26
90445-070F1-00 Hose (L310) |
90445-070F1-00 |
from US $10.91 |
||
| replacement | |||||
|
26
|
26
904-45072-G8-00 Hose (L310) |
904-45072-G8-00 |
from US $10.91 |
||
|
27
|
27
90467-07029-00 Clip |
90467-07029-00 |
from US $1.70 |
||
|
28
|
28
1HP-G6173-00-00 Shaft, Drive 2 |
1HP-G6173-00-00 |
from US $131.20 |
||
|
29
|
29
90501-20361-00 Spring, Compression |
90501-20361-00 |
from US $4.53 |
||
|
30
|
30
5KM-46137-00-00 Seal 2 |
5KM-46137-00-00 |
from US $3.98 |
||
|
31
|
31
5KM-46136-00-00 Seal 1 |
5KM-46136-00-00 |
from US $4.11 |
||
|
32
|
32
99009-19400-00 Circlip |
99009-19400-00 |
from US $1.56 |
||
|
33
|
33
5KM-46126-00-00 Coupling |
5KM-46126-00-00 |
from US $28.90 |
||
|
34
|
34
93410-22039-00 Circlip |
93410-22039-00 |
from US $1.70 |
||
|
35
|
35
5KM-46559-00-00 Damper |
5KM-46559-00-00 |
from US $2 |
||
