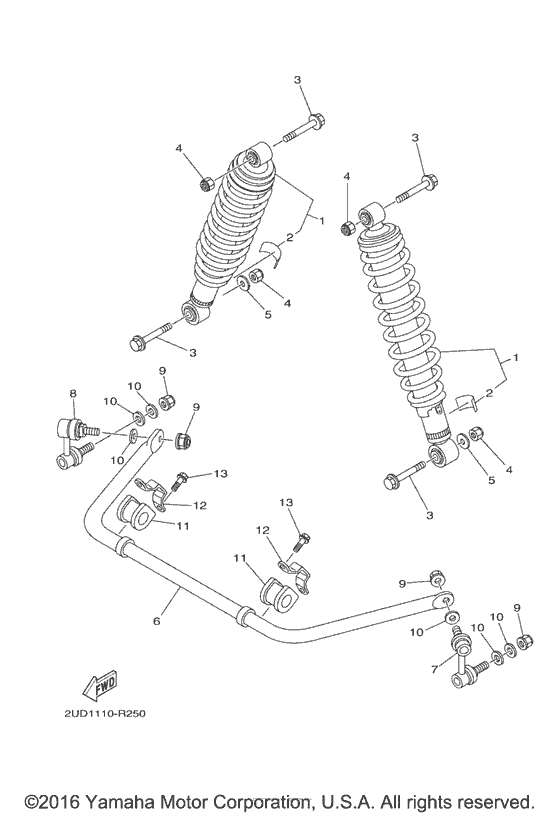

Rear suspension Diagram Yamaha GRIZZLY 700 Grizzly 700 EPS Hunter
- Model code
- 2UD6
- Engine Capacity
- 700
- Year
- 2016
- Sales region
- USA
- Базовая модель
- YFM70GPHGH
- Colour
- Yamaha Black
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Grizzly 700 EPS Hunter
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2UD-F2200-00-00 Shock Absorber Assy, Rear |
2UD-F2200-00-00 |
from US $219.58 |
||
| replacements | |||||
|
1
|
1
2UD-F2200-01-00 Shock Absorber Assy, Rear |
2UD-F2200-01-00 |
US $219.58 |
||
|
1
|
1
2UD-F2200-02-00 Shock Absorber Assy, Rear |
2UD-F2200-02-00 |
US $239.71 |
||
|
2
|
2
1HP-F2259-01-00 Label, Warning |
1HP-F2259-01-00 |
US $14.26 |
||
|
3
|
3
90105-10131-00 Bolt, Washer Based |
90105-10131-00 |
from US $3.26 |
||
|
4
|
4
90185-10012-00 Nut, Self-Locking |
90185-10012-00 |
from US $2.32 |
||
|
5
|
5
90201-10035-00 Washer, Plate |
90201-10035-00 |
from US $1.34 |
||
|
6
|
6
1HP-G7491-00-00 Bar, Stabilizer |
1HP-G7491-00-00 |
US $102.47 |
||
| replacement | |||||
|
6
|
6
1HP-G7491-01-00 Bar, Stabilizer |
1HP-G7491-01-00 |
US $107.37 |
||
|
7
|
7
16B-2385L-10-00 Joint, Stabilizer 1 |
16B-2385L-10-00 |
from US $34.29 |
||
|
8
|
8
16B-2385M-10-00 Joint, Stabilizer 2 |
16B-2385M-10-00 |
from US $34.06 |
||
|
9
|
9
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
|
10
|
10
90201-10035-00 Washer, Plate |
90201-10035-00 |
from US $1.34 |
||
|
11
|
11
1HP-F386G-00-00 Bush, Stabilizer Front |
1HP-F386G-00-00 |
from US $5.62 |
||
|
12
|
12
1HP-F386H-00-00 Cover, Stabilizer Front |
1HP-F386H-00-00 |
from US $7.06 |
||
|
13
|
13
95812-08014-00 Bolt, Flange |
95812-08014-00 |
US $1.56 |
||
| replacement | |||||
|
13
|
13
958-17080-14-00 Bolt, Flange |
958-17080-14-00 |
from US $1.34 |
||
