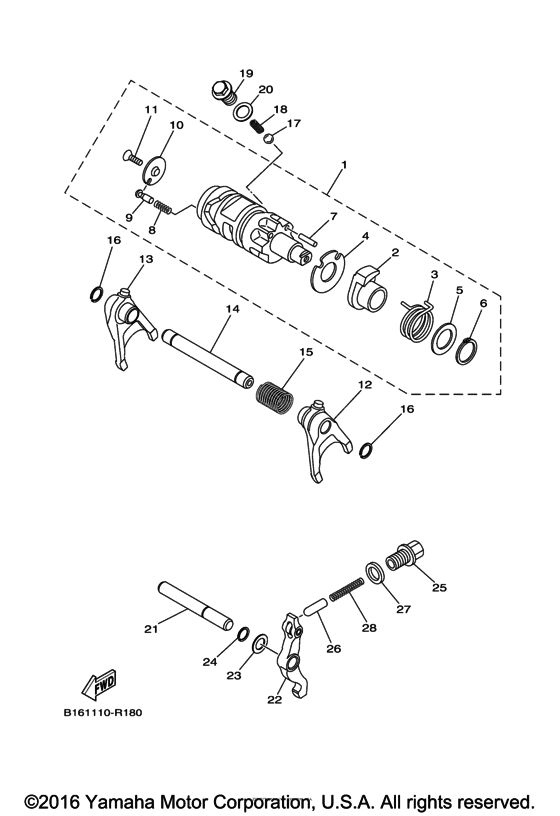

Shift shaft Diagram Yamaha GRIZZLY 700 Grizzly 700 EPS Hunter
- Model code
- 2UD6
- Engine Capacity
- 700
- Year
- 2016
- Sales region
- USA
- Базовая модель
- YFM70GPHGH
- Colour
- Yamaha Black
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Grizzly 700 EPS Hunter
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
B16-E8540-00-00 Shift Cam Assy |
B16-E8540-00-00 |
US $185.13 |
||
| replacement | |||||
|
1
|
1
3B4-18540-21-00 Shift Cam Assy |
3B4-18540-21-00 |
from US $185.13 |
||
|
2
|
2
B16-E8171-00-00 Cam, Lever |
B16-E8171-00-00 |
US $38.68 |
||
|
3
|
3
B16-E8124-00-00 Spring, Shaft Return |
B16-E8124-00-00 |
US $4.11 |
||
|
4
|
4
B16-E8331-00-00 Plate, Shift Cam |
B16-E8331-00-00 |
US $2.55 |
||
|
5
|
5
B16-E8435-00-00 Spacer, Cam Shaft |
B16-E8435-00-00 |
US $6.80 |
||
|
6
|
6
B16-E8135-00-00 Clip, Shift Shaft |
B16-E8135-00-00 |
US $1.84 |
||
|
7
|
7
B16-E8126-00-00 Pin, Lever |
B16-E8126-00-00 |
US $1.84 |
||
|
8
|
8
2MB-E8222-00-00 Spring 2 |
2MB-E8222-00-00 |
from US $1.84 |
||
| replacement | |||||
|
8
|
8
90501-06022-00 Spring, Compression |
90501-06022-00 |
from US $1.84 |
||
|
9
|
9
2MB-E8542-00-00 Point, Neutral |
2MB-E8542-00-00 |
from US $6.38 |
||
| replacement | |||||
|
9
|
9
5KM-18542-00-00 Point, Neutral |
5KM-18542-00-00 |
from US $6.38 |
||
|
10
|
10
2MB-E8566-00-00 Plate, Side 2 |
2MB-E8566-00-00 |
from US $2.41 |
||
| replacement | |||||
|
10
|
10
4UN-18566-00-00 Plate, Side 2 |
4UN-18566-00-00 |
from US $2.41 |
||
|
11
|
11
2MB-E8563-00-00 Screw, Stopper Plate |
2MB-E8563-00-00 |
from US $2.55 |
||
| replacement | |||||
|
11
|
11
901-49050-15-00 Screw |
901-49050-15-00 |
from US $2.55 |
||
|
12
|
12
2MB-E8511-00-00 Fork, Shift 1 |
2MB-E8511-00-00 |
US $134.14 |
||
|
13
|
13
B16-E8512-00-00 Fork, Shift 2 |
B16-E8512-00-00 |
US $137.95 |
||
|
14
|
14
B16-E8531-00-00 Bar, Shift Fork Guide 1 |
B16-E8531-00-00 |
US $18.28 |
||
|
15
|
15
2MB-E8123-00-00 Spring |
2MB-E8123-00-00 |
US $9.92 |
||
|
16
|
16
2MB-E5597-00-00 Circlip 2 |
2MB-E5597-00-00 |
US $1.62 |
||
|
17
|
17
2MB-E8218-00-00 Ball |
2MB-E8218-00-00 |
US $1.49 |
||
|
18
|
18
2MB-E8143-00-00 Spring |
2MB-E8143-00-00 |
US $6.95 |
||
|
19
|
19
2MB-E8119-00-00 Bolt, Shift |
2MB-E8119-00-00 |
from US $3.04 |
||
| replacement | |||||
|
19
|
19
90105-14003-00 Bolt, Flange |
90105-14003-00 |
from US $4.11 |
||
|
20
|
20
2MB-E8363-00-00 Gasket |
2MB-E8363-00-00 |
US $3.76 |
||
|
21
|
21
B16-E8318-00-00 Shaft, Shifter |
B16-E8318-00-00 |
US $32.13 |
||
|
22
|
22
B16-E8140-00-00 Stopper Lever Assy |
B16-E8140-00-00 |
US $138.76 |
||
|
23
|
23
B16-E8139-00-00 Washer, Lock |
B16-E8139-00-00 |
US $9.41 |
||
|
24
|
24
2MB-E5597-00-00 Circlip 2 |
2MB-E5597-00-00 |
US $1.62 |
||
|
25
|
25
B16-E8177-00-00 Bolt, Stopper |
B16-E8177-00-00 |
US $7.79 |
||
| replacement | |||||
|
25
|
25
90109-14002-00 Bolt |
90109-14002-00 |
from US $7.79 |
||
|
26
|
26
B16-E8547-00-00 Stopper, Cam |
B16-E8547-00-00 |
US $21.53 |
||
|
27
|
27
2MB-E8363-00-00 Gasket |
2MB-E8363-00-00 |
US $3.76 |
||
|
28
|
28
B16-E8221-00-00 Spring,1 |
B16-E8221-00-00 |
US $5.06 |
||
