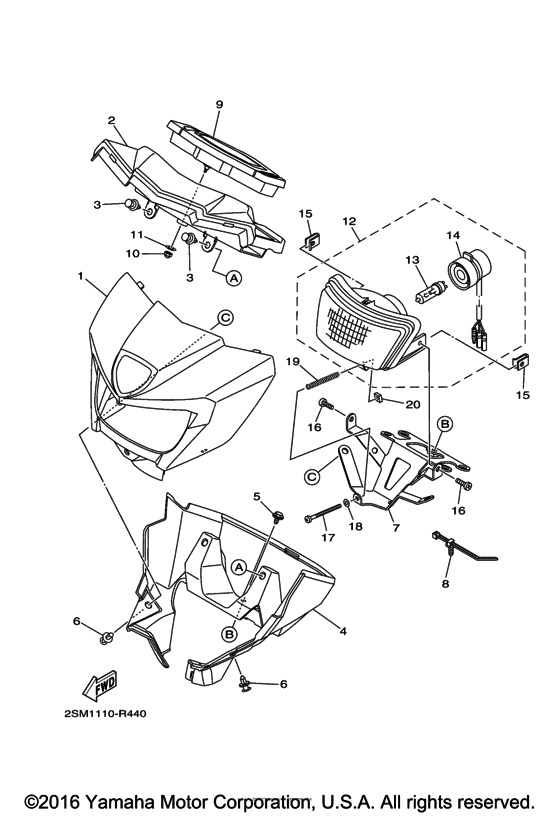

Headlight 2 Diagram Yamaha GRIZZLY 700 Grizzly 700 EPS
- Model code
- 2UD1
- Engine Capacity
- 700
- Year
- 2016
- Sales region
- USA
- Базовая модель
- YFM70GPXGL
- Colour
- Dark Purpulish Blue Solid N
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Grizzly 700 EPS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2SM-H4144-10-00 Cover, Headlight (Red)UR FOR RTR |
2SM-H4144-10-00 |
US $15.80 |
||
|
1
|
1
2SM-H4144-00-00 Cover, Headlight (Green)UR FOR PDG |
2SM-H4144-00-00 |
US $71.48 |
||
|
1
|
1
2SM-H4144-20-00 Cover, Headlight (Blue)UR FOR DPBSN |
2SM-H4144-20-00 |
US $11.36 |
||
|
2
|
2
2UD-H3559-00-00 Cover, Meter |
2UD-H3559-00-00 |
from US $10.39 |
||
|
3
|
3
902-69070-10-00 Rivet |
902-69070-10-00 |
from US $1.70 |
||
|
4
|
4
2SM-F6143-00-00 Cover, Handle Upper 1 |
2SM-F6143-00-00 |
from US $10.70 |
||
| replacement | |||||
|
4
|
4
2SM-F6143-01-00 COVER, HDLBR UPR 1 |
2SM-F6143-01-00 |
from US $10.55 |
||
|
5
|
5
90119-06079-00 Bolt, With Washer |
90119-06079-00 |
from US $1.56 |
||
|
6
|
6
902-69070-10-00 Rivet |
902-69070-10-00 |
from US $1.70 |
||
|
7
|
7
2SM-F6292-00-00 Stay |
2SM-F6292-00-00 |
from US $11.18 |
||
|
8
|
8
1NS-F1338-00-00 Clamp |
1NS-F1338-00-00 |
from US $4.39 |
||
|
9
|
9
2UD-83500-00-00 Meter Assy |
2UD-83500-00-00 |
from US $433.87 |
||
|
10
|
10
95302-05800-00 Nut, Crown |
95302-05800-00 |
from US $1.56 |
||
|
11
|
11
90201-05039-00 Washer, Plate |
90201-05039-00 |
from US $1.70 |
||
|
12
|
12
2PA-84300-00-00 Headlight Assy |
2PA-84300-00-00 |
from US $115.78 |
||
|
13
|
13
5VM-84314-00-00 Bulb, Headlight(12V-35/36.5W)HALOGEN |
5VM-84314-00-00 |
from US $34.99 |
||
|
14
|
14
2PA-84340-00-00 Socket Cord Assy 1 |
2PA-84340-00-00 |
US $45.86 |
||
|
15
|
15
5VM-84117-00-00 Nut |
5VM-84117-00-00 |
from US $4.68 |
||
|
16
|
16
98502-05012-00 Screw, Pan Head |
98502-05012-00 |
from US $1.21 |
||
| replacements | |||||
|
16
|
16
98517-05012-00 Screw, Pan Head |
98517-05012-00 |
from US $1.21 |
||
|
16
|
16
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $1.34 |
||
|
17
|
17
5BF-8433E-00-00 Screw, Adjusting |
5BF-8433E-00-00 |
from US $2.13 |
||
|
18
|
18
929-02046-00-00 Washer, Plate |
929-02046-00-00 |
from US $0.95 |
||
| replacement | |||||
|
18
|
18
929-90046-00-00 Washer, Plate |
929-90046-00-00 |
from US $1.07 |
||
|
19
|
19
90501-100A3-00 Spring, Compression |
90501-100A3-00 |
from US $1.28 |
||
|
20
|
20
5VM-84334-00-00 Nut, Adjusting |
5VM-84334-00-00 |
from US $2.13 |
||
