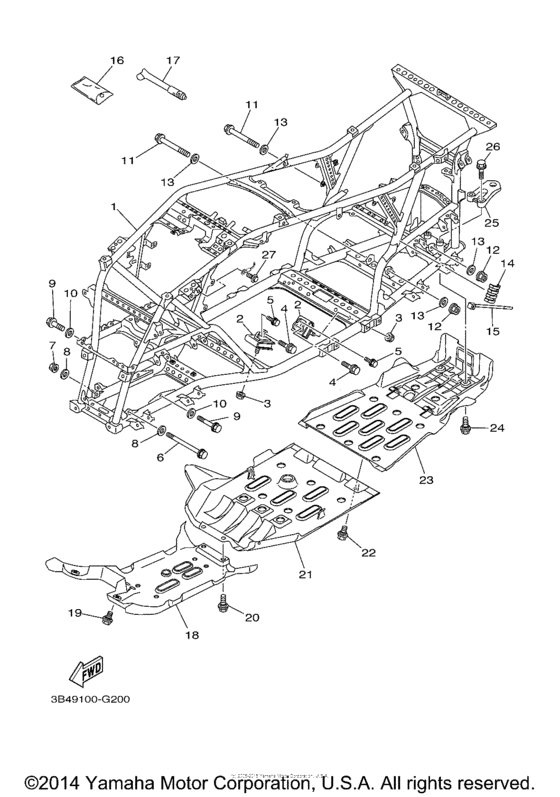

Frame Diagram Yamaha GRIZZLY 700 Grizzly 700
- Model code
- 5C0M
- Engine Capacity
- 700
- Year
- 2011
- Sales region
- USA
- Базовая модель
- YFM7FGAL
- Colour
- Dark Purpulish Blue Solid N
- Power
- 47 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Grizzly 700
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3B4-21110-20-00
Frame Complete
|
3B4-21110-20-00 |
— | ||
| replacement | |||||
|
1
|
1
1HP-F1110-B9-00 Frame Comp |
1HP-F1110-B9-00 |
US $1,650 |
||
|
2
|
2
3B4-21485-00-00 Damper, Rubber 1 |
3B4-21485-00-00 |
from US $35.56 |
||
| replacement | |||||
|
2
|
2
3B4-21485-01-00 Damper, Rubber 1 |
3B4-21485-01-00 |
from US $33.74 |
||
|
3
|
3
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
|
4
|
4
95812-10035-00 Bolt, Flange |
95812-10035-00 |
from US $1.84 |
||
|
5
|
5
90105-06639-00 Bolt, Flange (Small Head) |
90105-06639-00 |
from US $1.56 |
||
| replacements | |||||
|
5
|
5
95024-06016-00 Bolt, Flange |
95024-06016-00 |
from US $1.56 |
||
|
5
|
5
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
6
|
6
90105-10219-00 Bolt, Flange |
90105-10219-00 |
from US $6.52 |
||
|
7
|
7
90185-10011-00 Nut, Self-Locking |
90185-10011-00 |
from US $2.98 |
||
|
8
|
8
90201-10035-00 Washer, Plate |
90201-10035-00 |
from US $1.34 |
||
|
9
|
9
90105-10237-00 Bolt, Flange |
90105-10237-00 |
from US $1.07 |
||
| replacement | |||||
|
9
|
9
958-17100-30-00 Bolt, Flange |
958-17100-30-00 |
from US $1.07 |
||
|
10
|
10
90201-10035-00 Washer, Plate |
90201-10035-00 |
from US $1.34 |
||
|
11
|
11
90105-10238-00 Bolt, Flange |
90105-10238-00 |
from US $4.68 |
||
|
12
|
12
90185-10011-00 Nut, Self-Locking |
90185-10011-00 |
from US $2.98 |
||
|
13
|
13
90201-10035-00 Washer, Plate |
90201-10035-00 |
from US $1.34 |
||
|
14
|
14
3B4-2113B-01-00 Damper |
3B4-2113B-01-00 |
from US $10.48 |
||
|
15
|
15
90464-35132-00 Clamp |
90464-35132-00 |
from US $1.42 |
||
|
16
|
16
28P-28100-01-00 Tool Kit |
28P-28100-01-00 |
from US $29.04 |
||
|
17
|
17
1NV-2811A-01-00 Gauge, Air |
1NV-2811A-01-00 |
from US $27.34 |
||
|
18
|
18
3B4-2147A-00-00 Guard, Engine 1 |
3B4-2147A-00-00 |
US $62.17 |
||
| replacements | |||||
|
18
|
18
1HP-F147A-00-00 Guard, Engine 1 |
1HP-F147A-00-00 |
from US $62.17 |
||
|
18
|
18
1HP-F147A-01-00 Guard, Engine 1 |
1HP-F147A-01-00 |
US $118.89 |
||
|
19
|
19
90109-06202-00 Bolt |
90109-06202-00 |
from US $1.34 |
||
|
20
|
20
90109-06214-00 Bolt |
90109-06214-00 |
from US $1.34 |
||
|
21
|
21
3B4-2147E-00-00
Guard, Engine 2
|
3B4-2147E-00-00 |
— | ||
| replacements | |||||
|
21
|
21
1HP-F147E-01-00 Guard, Engine 2 |
1HP-F147E-01-00 |
from US $28.40 |
||
|
21
|
21
1HP-F147E-02-00 Guard, Engine 2 |
1HP-F147E-02-00 |
US $36.72 |
||
|
22
|
22
90109-06214-00 Bolt |
90109-06214-00 |
from US $1.34 |
||
|
23
|
23
3B4-2147F-00-00
Guard, Engine 3
|
3B4-2147F-00-00 |
— | ||
| replacements | |||||
|
23
|
23
1HP-F147F-00-00 Guard, Engine 3 |
1HP-F147F-00-00 |
from US $66.59 |
||
|
23
|
23
1HP-F147F-01-00 Guard, Engine 3 |
1HP-F147F-01-00 |
US $156.44 |
||
|
24
|
24
90109-06202-00 Bolt |
90109-06202-00 |
from US $1.34 |
||
|
25
|
25
3B4-28488-00-00 Hook |
3B4-28488-00-00 |
from US $43.16 |
||
| replacement | |||||
|
25
|
25
1HP-F8488-00-00 Hook |
1HP-F8488-00-00 |
from US $25.92 |
||
|
26
|
26
95812-10035-00 Bolt, Flange |
95812-10035-00 |
from US $1.84 |
||
|
27
|
27
958-02060-12-00
Bolt, Flange
|
958-02060-12-00 |
— | ||
| replacements | |||||
|
27
|
27
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
27
|
27
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.07 |
||
