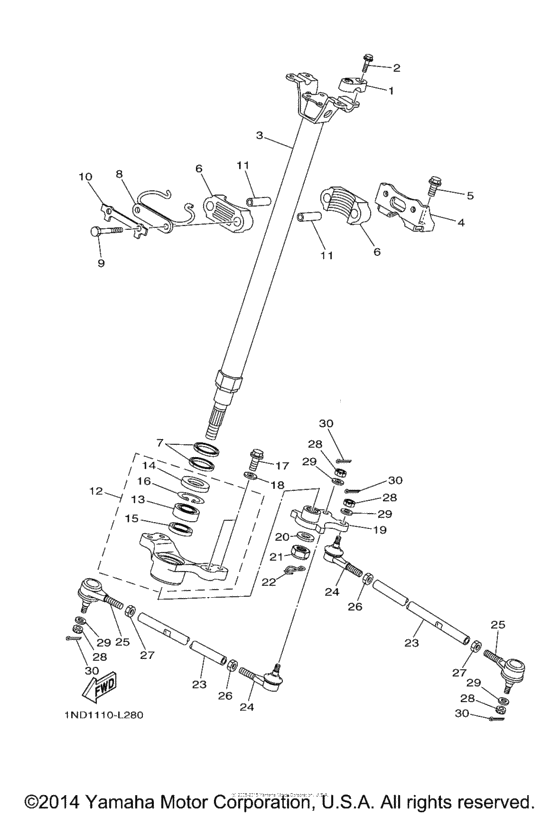

Steering Diagram Yamaha GRIZZLY 700 Grizzly 700
- Model code
- 1ND1
- Engine Capacity
- 700
- Year
- 2012
- Sales region
- USA
- Базовая модель
- YFM7FGBL
- Colour
- Dark Purpulish Blue Solid N/Pastel Deep Green
- Power
- 47 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Grizzly 700
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8K1-23814-00-00 Holder, Handle |
8K1-23814-00-00 |
from US $19.19 |
||
| replacement | |||||
|
1
|
1
1E6-23441-00-00 Holder, Handle Upr (1E6-23441-0 |
1E6-23441-00-00 |
from US $20.97 |
||
|
2
|
2
95812-08030-00 Bolt, Flange |
95812-08030-00 |
from US $1.42 |
||
|
3
|
3
1ND-F3813-00-00 Column, Steering 2 |
1ND-F3813-00-00 |
from US $122.48 |
||
|
4
|
4
1HP-F2517-00-00 Supt., Strg. Column |
1HP-F2517-00-00 |
US $6.77 |
||
|
5
|
5
90105-10204-00 Bolt, Flange |
90105-10204-00 |
from US $1.35 |
||
| replacement | |||||
|
5
|
5
95812-10016-00 Bolt, Flange |
95812-10016-00 |
from US $1.35 |
||
|
6
|
6
37S-F3812-00-00 Plane Bearing, Steering |
37S-F3812-00-00 |
from US $10.58 |
||
|
7
|
7
931-12318-00-00 Oil Seal |
931-12318-00-00 |
from US $2.23 |
||
|
8
|
8
1HP-F3868-00-00 Bracket, Steering Lower |
1HP-F3868-00-00 |
from US $11.14 |
||
|
9
|
9
97022-08060-00 Bolt, Hexagon |
97022-08060-00 |
from US $2.41 |
||
| replacement | |||||
|
9
|
9
97017-08060-00 Bolt |
97017-08060-00 |
from US $2.41 |
||
|
10
|
10
1UY-23894-01-00 Washer, Lock 1 |
1UY-23894-01-00 |
from US $1.70 |
||
|
11
|
11
90387-090R0-00 Collar (903-87090-R0-00)903-87090-R0-00 |
90387-090R0-00 |
from US $12.64 |
||
| replacement | |||||
|
11
|
11
903-87106-T4-00 Collar (903-87090-R0-00)903-87090-R0-00 |
903-87106-T4-00 |
from US $13.77 |
||
|
12
|
12
5C0-22502-10-00 Steering Column Support Assy |
5C0-22502-10-00 |
from US $18.71 |
||
|
13
|
13
93306-20352-00 Bearing |
93306-20352-00 |
from US $9.78 |
||
|
14
|
14
93102-25081-00 Oil Seal |
93102-25081-00 |
from US $3.72 |
||
|
15
|
15
93102-25099-00 Oil Seal |
93102-25099-00 |
from US $7.08 |
||
|
16
|
16
99009-40500-00 Circlip |
99009-40500-00 |
from US $5.29 |
||
| replacement | |||||
|
16
|
16
93420-40064-00 Circlip |
93420-40064-00 |
from US $5.09 |
||
|
17
|
17
90105-08153-00 Bolt, Flange |
90105-08153-00 |
from US $1.42 |
||
| replacement | |||||
|
17
|
17
95812-08030-00 Bolt, Flange |
95812-08030-00 |
from US $1.42 |
||
|
18
|
18
90201-08048-00 Washer, Plate |
90201-08048-00 |
from US $1.70 |
||
|
19
|
19
1ND-F3816-00-00 Arm, Pitman |
1ND-F3816-00-00 |
from US $41.15 |
||
|
20
|
20
90201-14021-00 Washer, Plate |
90201-14021-00 |
from US $3.04 |
||
|
21
|
21
901-85140-09-00 Nut, Self-Locking |
901-85140-09-00 |
from US $7.79 |
||
|
22
|
22
91402-20025-00 Pin, Cotter (91401-20030-00)91401-20030-00 |
91402-20025-00 |
US $1.35 |
||
| replacement | |||||
|
22
|
22
914-90200-35-00 Pin, Cotter (91401-20030-00)91401-20030-00 |
914-90200-35-00 |
from US $2.27 |
||
|
23
|
23
5KM-23831-00-00 Rod, Tie |
5KM-23831-00-00 |
from US $15.58 |
||
|
24
|
24
1UY-23841-01-00 Joint, Universal 1 |
1UY-23841-01-00 |
from US $48.36 |
||
|
25
|
25
1UY-23845-01-00 Joint, Universal 2 |
1UY-23845-01-00 |
from US $54.02 |
||
|
26
|
26
95302-10700-00 Nut, Hexagon |
95302-10700-00 |
US $7.37 |
||
| replacements | |||||
|
26
|
26
95380-10700-00 Nut |
95380-10700-00 |
from US $7.37 |
||
|
26
|
26
95314-10600-00 Nut |
95314-10600-00 |
from US $1.45 |
||
|
27
|
27
90170-10010-00 Nut |
90170-10010-00 |
from US $1.36 |
||
|
28
|
28
901-71100-01-00 Nut, Castle |
901-71100-01-00 |
from US $1.70 |
||
|
29
|
29
90209-10229-00 Washer |
90209-10229-00 |
from US $1.36 |
||
|
30
|
30
914-01200-20-00
Pin, Cotter
|
914-01200-20-00 |
— | ||
| replacement | |||||
|
30
|
30
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
