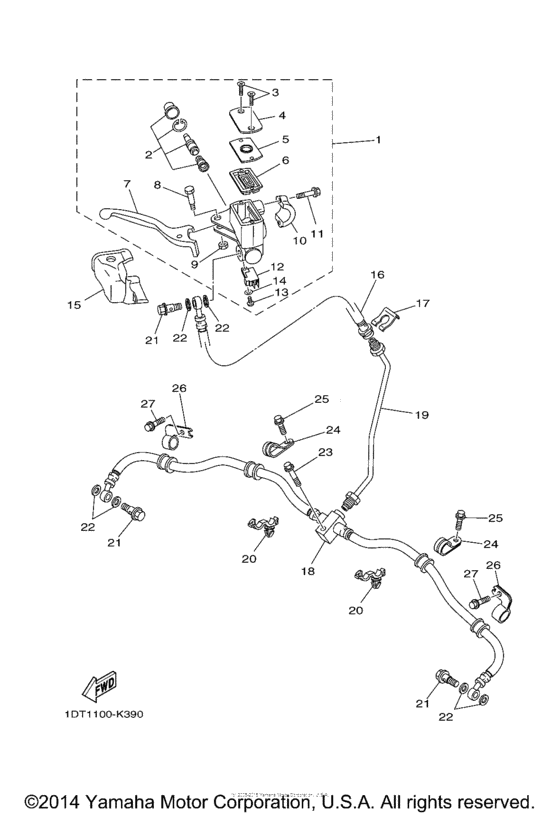

Front master cylinder Diagram Yamaha GRIZZLY 700 Grizzly 700 EPS
- Model code
- 1DT1
- Engine Capacity
- 700
- Year
- 2011
- Sales region
- USA
- Базовая модель
- YFM7FGPAGR
- Colour
- Pastel Deep Green
- Power
- 47 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Grizzly 700 EPS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3B4-2583T-00-00 Master Cylinder Assy |
3B4-2583T-00-00 |
from US $196.19 |
||
|
2
|
2
5D3-W0041-00-00 Cylinder Kit, Master |
5D3-W0041-00-00 |
US $32.30 |
||
| replacement | |||||
|
2
|
2
5HH-W0041-00-00 Cylinder Kit, Master |
5HH-W0041-00-00 |
from US $32.30 |
||
|
3
|
3
987-06040-12-00
Screw, Flat Head
|
987-06040-12-00 |
— | ||
| replacement | |||||
|
3
|
3
98707-04012-00 Screw, Flat Head |
98707-04012-00 |
from US $1.34 |
||
|
4
|
4
3GM-25852-22-00 Cap, Reservoir |
3GM-25852-22-00 |
from US $21.96 |
||
|
5
|
5
3B4-2585B-00-00 Plate, Diaphragm |
3B4-2585B-00-00 |
from US $6.52 |
||
|
6
|
6
4TT-25854-00-00 Diaphragm, Reservoir |
4TT-25854-00-00 |
from US $6.94 |
||
|
7
|
7
3B4-83922-00-00 Lever 2 |
3B4-83922-00-00 |
from US $25.22 |
||
|
8
|
8
3B4-2589F-00-00 Bolt, Lever |
3B4-2589F-00-00 |
from US $7.08 |
||
|
9
|
9
95604-06100-00 Nut, U |
95604-06100-00 |
from US $1.42 |
||
|
10
|
10
56A-25867-00-00 Bracket, Master Cylinder |
56A-25867-00-00 |
from US $13.46 |
||
|
11
|
11
5EB-26332-00-00 Bolt |
5EB-26332-00-00 |
from US $1.84 |
||
|
12
|
12
4HM-83980-00-00 Front Stop Switch Assy |
4HM-83980-00-00 |
from US $19.18 |
||
|
13
|
13
98502-04012-00 Screw, Pan Head |
98502-04012-00 |
from US $1.07 |
||
| replacements | |||||
|
13
|
13
98517-04012-00 Screw, Pan Head |
98517-04012-00 |
from US $1.07 |
||
|
13
|
13
985-11040-12-00 Screw, Panhead (4U5) |
985-11040-12-00 |
from US $1.07 |
||
|
14
|
14
929-02046-00-00 Washer, Plate |
929-02046-00-00 |
from US $0.95 |
||
| replacement | |||||
|
14
|
14
929-90046-00-00 Washer, Plate |
929-90046-00-00 |
from US $1.07 |
||
|
15
|
15
3B4-2637A-01-00 Cover, Handle Lever 2 |
3B4-2637A-01-00 |
from US $4.82 |
||
|
16
|
16
3B4-25872-10-00 Hose, Brake 1 |
3B4-25872-10-00 |
from US $37.89 |
||
| replacement | |||||
|
16
|
16
1HP-F5872-00-00 Hose, Brake 1 |
1HP-F5872-00-00 |
from US $26.51 |
||
|
17
|
17
2GU-25866-00-00 Circlip |
2GU-25866-00-00 |
from US $4.53 |
||
|
18
|
18
3B4-25873-10-00 Hose, Brake 2 |
3B4-25873-10-00 |
from US $107.63 |
||
| replacements | |||||
|
18
|
18
1HP-F5873-00-00 Hose, Brake 2 |
1HP-F5873-00-00 |
from US $107.63 |
||
|
18
|
18
1HP-F5873-01-00 |
1HP-F5873-01-00 |
from US $64.58 |
||
|
19
|
19
3B4-25871-10-00 Pipe, Brake |
3B4-25871-10-00 |
from US $7.65 |
||
| replacement | |||||
|
19
|
19
1HP-F5871-00-00 Pipe, Brake |
1HP-F5871-00-00 |
from US $7.65 |
||
|
20
|
20
90464-20010-00 Clamp |
90464-20010-00 |
from US $1.98 |
||
|
21
|
21
90401-10015-00 Bolt, Union |
90401-10015-00 |
from US $2.55 |
||
|
22
|
22
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.28 |
||
| replacement | |||||
|
22
|
22
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $1.28 |
||
|
23
|
23
95822-06025-00 Bolt, Flange |
95822-06025-00 |
from US $0.99 |
||
| replacement | |||||
|
23
|
23
958-17060-25-00
Bolt, Flange
|
958-17060-25-00 |
— | ||
|
24
|
24
3B4-25886-00-00 Holder, Brake Hose |
3B4-25886-00-00 |
from US $3.68 |
||
|
25
|
25
958-02060-12-00
Bolt, Flange
|
958-02060-12-00 |
— | ||
| replacements | |||||
|
25
|
25
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
25
|
25
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.07 |
||
|
26
|
26
3B4-25876-10-00 Holder, Brake Hose 2 |
3B4-25876-10-00 |
from US $6.38 |
||
|
27
|
27
958-02060-12-00
Bolt, Flange
|
958-02060-12-00 |
— | ||
| replacements | |||||
|
27
|
27
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
27
|
27
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.07 |
||
