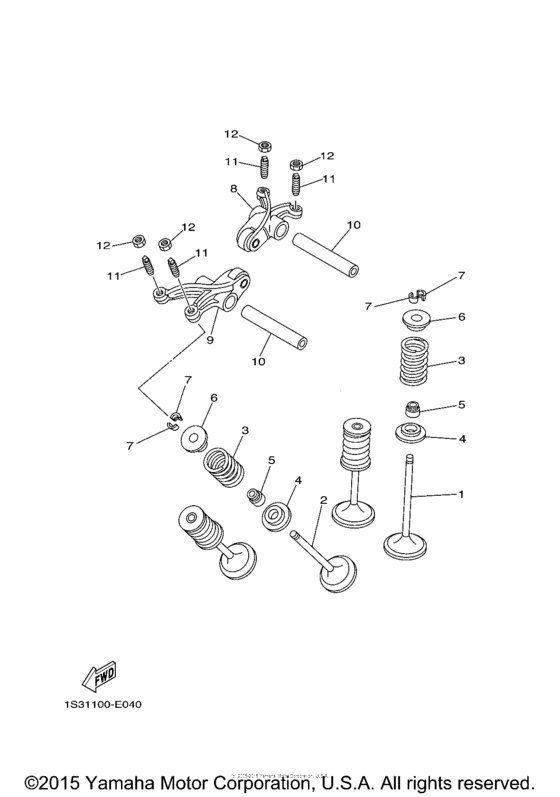

Valve Diagram Yamaha GRIZZLY 700 Grizzly 700 EPS Ducks Unlimited
- Model code
- 3B48
- Engine Capacity
- 700
- Year
- 2007
- Sales region
- USA
- Базовая модель
- YFM7FGPDUW
- Colour
- Pastel Deep Green(Max4)
- Power
- 47 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Grizzly 700 EPS Hunter
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5VK-12111-00-00 Valve, Intake |
5VK-12111-00-00 |
from US $22.53 |
||
|
2
|
2
5VK-12121-00-00 Valve, Exhaust |
5VK-12121-00-00 |
from US $38.68 |
||
|
3
|
3
1S3-12113-00-00 Spring, Valve Inner |
1S3-12113-00-00 |
from US $9.78 |
||
|
4
|
4
3YF-12116-00-00 Seat, Valve Spring |
3YF-12116-00-00 |
from US $3.04 |
||
|
5
|
5
5H0-12119-00-00 Seal, Valve Stem |
5H0-12119-00-00 |
from US $6.06 |
||
|
6
|
6
3YF-12117-01-00 Retainer, Valve Spring |
3YF-12117-01-00 |
from US $5.40 |
||
|
7
|
7
4G0-12118-00-00 Lock, Valve Spring Retainer |
4G0-12118-00-00 |
from US $2.36 |
||
|
8
|
8
5VK-12151-00-00 Arm, Valve Rocker |
5VK-12151-00-00 |
from US $88.70 |
||
|
9
|
9
5VK-12161-00-00 Arm, Valve Rocker 2 |
5VK-12161-00-00 |
from US $90.36 |
||
| replacement | |||||
|
9
|
9
5VK-12161-10-00 Arm, Valve Rocker 2 |
5VK-12161-10-00 |
from US $85.18 |
||
|
10
|
10
5VK-12146-00-00 Shaft, Rocker |
5VK-12146-00-00 |
from US $10.50 |
||
|
11
|
11
5XT-12159-00-00 Screw, Valve Adjusting |
5XT-12159-00-00 |
from US $3.04 |
||
|
12
|
12
90170-06128-00 Nut |
90170-06128-00 |
from US $1.28 |
||
