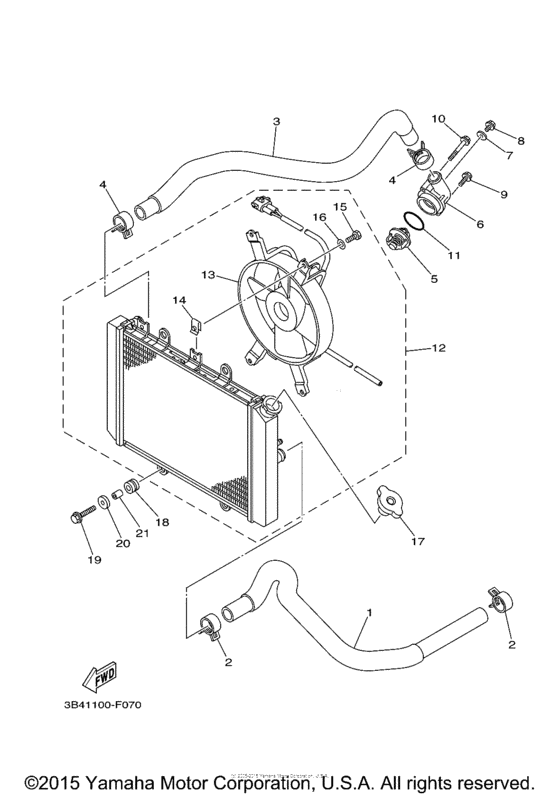

Radiator & hose Diagram Yamaha GRIZZLY 700 Grizzly 700 EPS Ducks Unlimited
- Model code
- 3B4L
- Engine Capacity
- 700
- Year
- 2008
- Sales region
- USA
- Базовая модель
- YFM7FGPDUX
- Colour
- Yamaha Black(Max4)
- Power
- 47 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Grizzly 700 EPS Hunter
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3B4-12576-00-00 Hose 1 |
3B4-12576-00-00 |
from US $48.62 |
||
| replacement | |||||
|
1
|
1
1HP-E2576-00-00 Hose 1 |
1HP-E2576-00-00 |
from US $42.62 |
||
|
2
|
2
90467-26189-00 Clip |
90467-26189-00 |
from US $2.41 |
||
|
3
|
3
3B4-12578-00-00 Hose 3 |
3B4-12578-00-00 |
from US $34.06 |
||
| replacement | |||||
|
3
|
3
1HP-E2578-00-00 Hose 3 |
1HP-E2578-00-00 |
from US $32.51 |
||
|
4
|
4
90467-26189-00 Clip |
90467-26189-00 |
from US $2.41 |
||
|
5
|
5
3B4-12411-00-00 Thermostat |
3B4-12411-00-00 |
from US $34.99 |
||
| replacement | |||||
|
5
|
5
3B4-12411-01-00 THERMOSTAT |
3B4-12411-01-00 |
from US $34.99 |
||
|
6
|
6
1S3-12413-00-00 Cover, Thermostat |
1S3-12413-00-00 |
from US $40.48 |
||
|
7
|
7
904-30060-14-00 Gasket (Copper washer) |
904-30060-14-00 |
from US $1.28 |
||
|
8
|
8
95022-06010-00 Bolt, Flange |
95022-06010-00 |
from US $1.36 |
||
|
9
|
9
95022-06020-00 Bolt, Flange |
95022-06020-00 |
from US $1.42 |
||
|
10
|
10
95022-06045-00 Bolt, Flange |
95022-06045-00 |
from US $1.36 |
||
|
11
|
11
93210-41042-00 O-Ring |
93210-41042-00 |
from US $2.70 |
||
|
12
|
12
3B4-1240A-10-00 Radiator Assy |
3B4-1240A-10-00 |
from US $713 |
||
| replacement | |||||
|
12
|
12
3B4-1240A-11-00 |
3B4-1240A-11-00 |
US $860.47 |
||
|
13
|
13
3B4-12405-00-00 Blower Assy |
3B4-12405-00-00 |
from US $542.09 |
||
| replacement | |||||
|
13
|
13
3B4-12405-01-00 Blower Assy |
3B4-12405-01-00 |
US $657.18 |
||
|
14
|
14
1AA-12535-00-00 Plate |
1AA-12535-00-00 |
from US $11.33 |
||
|
15
|
15
97017-06010-00 Bolt |
97017-06010-00 |
from US $1.36 |
||
|
16
|
16
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
17
|
17
22W-12462-00-00
Cap, Radiator
|
22W-12462-00-00 |
— | ||
| replacements | |||||
|
17
|
17
1B3-12462-00-00 Cap, Radiator |
1B3-12462-00-00 |
from US $38.78 |
||
|
17
|
17
4FL-12462-00-00 Cap, Radiator |
4FL-12462-00-00 |
from US $29.88 |
||
|
18
|
18
904-80152-35-00
Grommet
|
904-80152-35-00 |
— | ||
| replacement | |||||
|
18
|
18
90480-12475-00 Grommet(2Gh) |
90480-12475-00 |
from US $1.35 |
||
|
19
|
19
958-02060-20-00
Bolt, Flange
|
958-02060-20-00 |
— | ||
| replacement | |||||
|
19
|
19
95817-06020-00 Bolt, Flange |
95817-06020-00 |
from US $1.13 |
||
|
20
|
20
90209-06012-00 Washer |
90209-06012-00 |
from US $1.84 |
||
|
21
|
21
90387-06113-00 Collar |
90387-06113-00 |
from US $1.56 |
||
