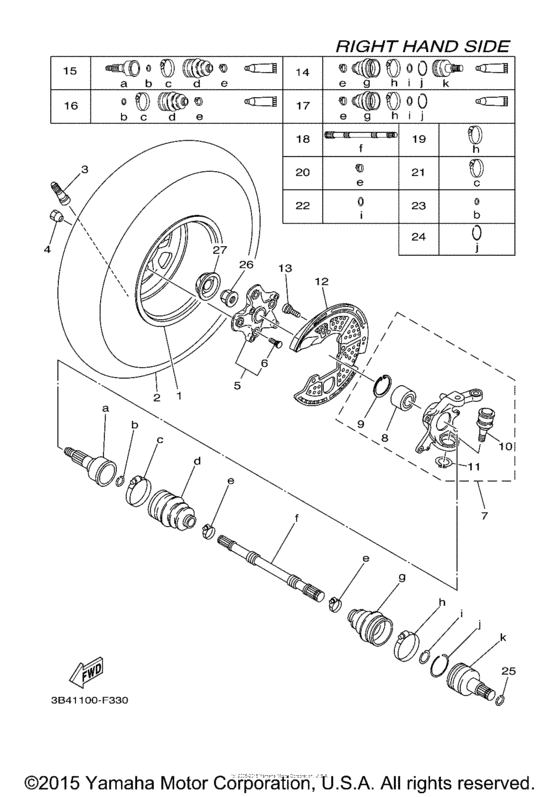

Front wheel (2) Diagram Yamaha GRIZZLY 700 Grizzly 700 EPS Outdoorsman Edition
- Model code
- 3B45
- Engine Capacity
- 700
- Year
- 2007
- Sales region
- USA
- Базовая модель
- YFM7FGPOHW
- Colour
- Pastel Deep Green(Hunting)
- Power
- 47 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Grizzly 700 EPS Outdoorsman Edition
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3B4-25180-10-00 Wheel Comp |
3B4-25180-10-00 |
from US $336.08 |
||
| replacement | |||||
|
1
|
1
1HP-F5180-10-00 Wheel Comp |
1HP-F5180-10-00 |
from US $331.06 |
||
|
2
|
2
94108-12012-00 Tire (At25X8-12** Kt421 T/l N)N DUNLOP |
94108-12012-00 |
US $241.94 |
||
| replacement | |||||
|
2
|
2
941-08128-17-00 Tire (At25X8-12 Mu19**tl)N DUNLOP |
941-08128-17-00 |
US $265.41 |
||
|
3
|
3
939-00000-30-00 Valve, Rim (Tr412) |
939-00000-30-00 |
from US $7.65 |
||
|
4
|
4
90179-10007-00 Nut |
90179-10007-00 |
from US $2.69 |
||
|
5
|
5
3B4-25111-00-00 Hub, Front |
3B4-25111-00-00 |
US $125.17 |
||
| replacements | |||||
|
5
|
5
3B4-25111-11-00
Hub, Front
|
3B4-25111-11-00 |
— | ||
|
5
|
5
B16-F510D-01-00 HUB ASSY |
B16-F510D-01-00 |
US $125.17 |
||
|
5
|
5
B16-F510D-03-00 Hub Assy 2 |
B16-F510D-03-00 |
US $47.25 |
||
|
5
|
5
B16-F510D-03-00 Hub Assy 2 |
B16-F510D-03-00 |
US $47.25 |
||
|
6
|
6
90114-10010-00 Bolt, Serration |
90114-10010-00 |
from US $1.98 |
||
| replacement | |||||
|
6
|
6
901-14100-14-00 Bolt, Serration |
901-14100-14-00 |
from US $1.36 |
||
|
7
|
7
3B4-23502-00-00 Steering Knuckle Assy (Right) |
3B4-23502-00-00 |
from US $416.02 |
||
| replacement | |||||
|
7
|
7
3B4-23502-01-00 Steering Knuckle Assy (Right) |
3B4-23502-01-00 |
from US $416.02 |
||
|
8
|
8
933-05006-02-00 Bearing |
933-05006-02-00 |
from US $61.07 |
||
|
9
|
9
99009-55500-00 Circlip |
99009-55500-00 |
from US $3.68 |
||
|
10
|
10
3B4-23579-00-00 Ball Joint 2 |
3B4-23579-00-00 |
from US $60.38 |
||
| replacement | |||||
|
10
|
10
3B4-23579-01-00 Ball Joint 2 |
3B4-23579-01-00 |
from US $60.38 |
||
|
11
|
11
99009-30400-00 Circlip |
99009-30400-00 |
from US $1.56 |
||
|
12
|
12
3B4-2515A-00-00 Ring, Wheel 2 |
3B4-2515A-00-00 |
from US $11.33 |
||
|
13
|
13
90154-06014-00 Screw, Binding |
90154-06014-00 |
from US $2.13 |
||
|
14
|
14
3B4-2510J-00-00 Double Off Set Joint |
3B4-2510J-00-00 |
from US $349.54 |
||
|
15
|
15
3B4-2510F-00-00 Ball Joint Set |
3B4-2510F-00-00 |
from US $514.23 |
||
|
16
|
16
3B4-2510H-00-00 Boot Set (Double Offset Joint) |
3B4-2510H-00-00 |
from US $51.84 |
||
|
17
|
17
3B4-2510G-00-00 Boot Set (Ball Joint) |
3B4-2510G-00-00 |
from US $69.64 |
||
|
18
|
18
3B4-2518E-00-00 Shaft |
3B4-2518E-00-00 |
from US $137.61 |
||
|
19
|
19
3B4-2511H-00-00 Boot Band(Double Offset Joint) |
3B4-2511H-00-00 |
from US $6.40 |
||
|
20
|
20
3B4-2512G-00-00 Boot Band (Small) |
3B4-2512G-00-00 |
from US $4.04 |
||
|
21
|
21
3B4-2511G-00-00 Boot Band (Ball Joint) |
3B4-2511G-00-00 |
from US $9.52 |
||
|
22
|
22
3B4-2512J-00-00 Snap Ring |
3B4-2512J-00-00 |
from US $3.26 |
||
|
23
|
23
3B4-2512H-00-00 Circlip |
3B4-2512H-00-00 |
from US $3.68 |
||
|
24
|
24
3B4-25182-00-00 Circlip |
3B4-25182-00-00 |
from US $3.68 |
||
|
25
|
25
93450-22119-00 Circlip |
93450-22119-00 |
from US $1.70 |
||
|
26
|
26
90179-20006-00 Nut |
90179-20006-00 |
from US $9.07 |
||
| replacement | |||||
|
26
|
26
901-79200-16-00 Nut |
901-79200-16-00 |
from US $8.08 |
||
|
27
|
27
3B4-2512A-00-00 Cap, Wheel |
3B4-2512A-00-00 |
from US $1.84 |
||
| replacement | |||||
|
27
|
27
1HP-F512A-00-00 Cap, Wheel |
1HP-F512A-00-00 |
from US $1.84 |
||
