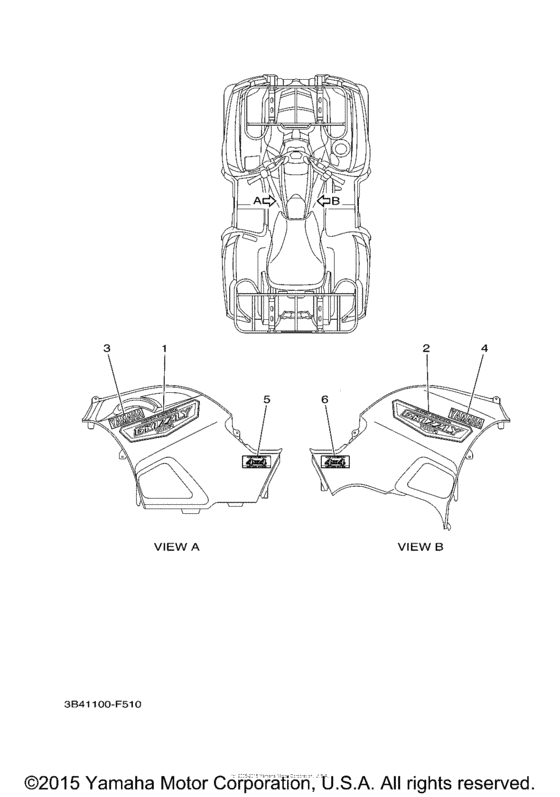

Graphics Diagram Yamaha GRIZZLY 700 Grizzly 700 EPS Outdoorsman Edition
- Model code
- 3B45
- Engine Capacity
- 700
- Year
- 2007
- Sales region
- USA
- Базовая модель
- YFM7FGPOHW
- Colour
- Pastel Deep Green(Hunting)
- Power
- 47 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Grizzly 700 EPS Outdoorsman Edition
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3B4-2173E-00-00 Graphic 1 |
3B4-2173E-00-00 |
from US $31.58 |
||
|
2
|
2
3B4-2173E-00-00 Graphic 1 |
3B4-2173E-00-00 |
from US $31.58 |
||
|
3
|
3
3GD-2153E-30-00
Emblem, Yamaha
|
3GD-2153E-30-00 |
— | ||
| replacement | |||||
|
3
|
3
3GD-2153E-31-00 EMBLEM, YAMAHA |
3GD-2153E-31-00 |
from US $2.98 |
||
|
4
|
4
3GD-2153E-30-00
Emblem, Yamaha
|
3GD-2153E-30-00 |
— | ||
| replacement | |||||
|
4
|
4
3GD-2153E-31-00 EMBLEM, YAMAHA |
3GD-2153E-31-00 |
from US $2.98 |
||
|
5
|
5
2C6-2163G-40-00 Emblem 1 |
2C6-2163G-40-00 |
US $13.07 |
||
|
6
|
6
2C6-2163G-40-00 Emblem 1 |
2C6-2163G-40-00 |
US $13.07 |
||
