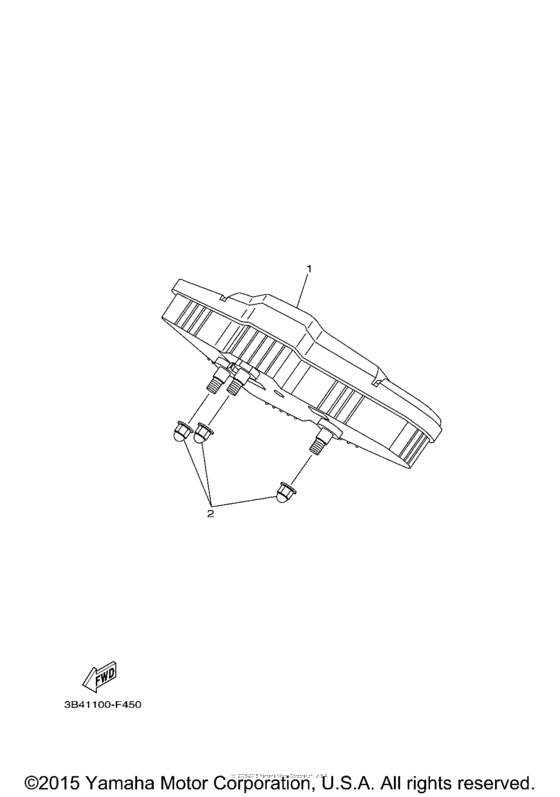

Meter Diagram Yamaha GRIZZLY 700 Grizzly 700 EPS Outdoorsman Edition
- Model code
- 3B45
- Engine Capacity
- 700
- Year
- 2007
- Sales region
- USA
- Базовая модель
- YFM7FGPOHW
- Colour
- Pastel Deep Green(Hunting)
- Power
- 47 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Grizzly 700 EPS Outdoorsman Edition
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3B4-83500-00-00 Speedometer Complete |
3B4-83500-00-00 |
from US $546.96 |
||
| replacements | |||||
|
1
|
1
34D-83500-01-00 Meter Assy |
34D-83500-01-00 |
from US $546.96 |
||
|
1
|
1
34D-83500-02-00 Meter Assy |
34D-83500-02-00 |
US $732.33 |
||
|
2
|
2
90176-05003-00 Nut, Crown |
90176-05003-00 |
from US $3.26 |
||
