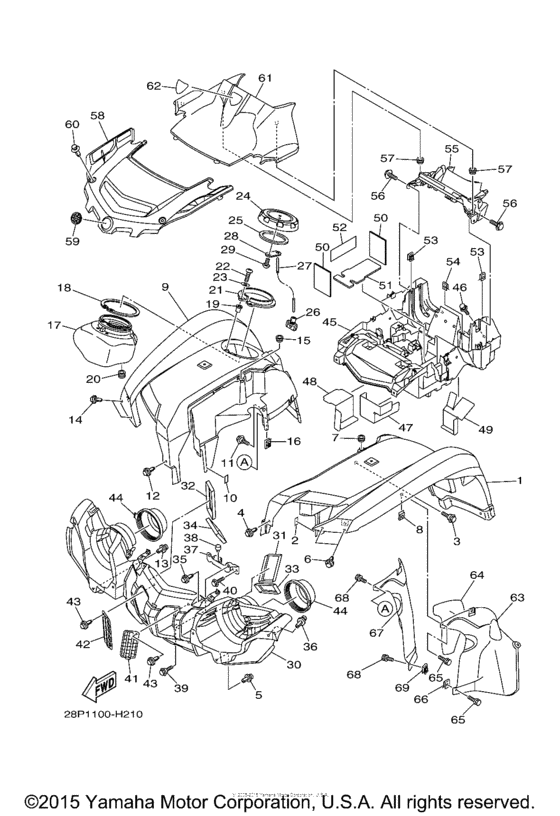

Front fender Diagram Yamaha GRIZZLY 700 Grizzly 700 EPS Special Edition
- Model code
- 43PA
- Engine Capacity
- 700
- Year
- 2009
- Sales region
- USA
- Базовая модель
- YFM7FGPSEY
- Power
- 47 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Grizzly 700 EPS Special Edition
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3B4-W2151-G0-00 Front Fender Comp |
3B4-W2151-G0-00 |
US $1,216.69 |
||
|
2
|
2
3B4-21541-00-00 Damper 1 |
3B4-21541-00-00 |
from US $1.60 |
||
|
3
|
3
90109-06172-00 Bolt |
90109-06172-00 |
from US $1.34 |
||
|
4
|
4
90269-07012-00 Rivet |
90269-07012-00 |
from US $1.34 |
||
|
5
|
5
90269-07012-00 Rivet |
90269-07012-00 |
from US $1.34 |
||
|
6
|
6
90269-07012-00 Rivet |
90269-07012-00 |
from US $1.34 |
||
|
7
|
7
904-80133-98-00
Grommet
|
904-80133-98-00 |
— | ||
| replacement | |||||
|
7
|
7
90480-13014-00 Grommet |
90480-13014-00 |
from US $2.27 |
||
|
8
|
8
901-83060-53-00
Nut, Spring
|
901-83060-53-00 |
— | ||
| replacement | |||||
|
8
|
8
90183-06069-00 Nut, Spring |
90183-06069-00 |
from US $3.54 |
||
|
9
|
9
3B4-21556-G0-00 Fender, Front 2 |
3B4-21556-G0-00 |
US $1,014.68 |
||
|
10
|
10
3B4-21541-00-00 Damper 1 |
3B4-21541-00-00 |
from US $1.60 |
||
|
11
|
11
90109-06172-00 Bolt |
90109-06172-00 |
from US $1.34 |
||
|
12
|
12
90269-07012-00 Rivet |
90269-07012-00 |
from US $1.34 |
||
|
13
|
13
90269-07012-00 Rivet |
90269-07012-00 |
from US $1.34 |
||
|
14
|
14
90269-07012-00 Rivet |
90269-07012-00 |
from US $1.34 |
||
|
15
|
15
904-80133-98-00
Grommet
|
904-80133-98-00 |
— | ||
| replacement | |||||
|
15
|
15
90480-13014-00 Grommet |
90480-13014-00 |
from US $2.27 |
||
|
16
|
16
901-83060-53-00
Nut, Spring
|
901-83060-53-00 |
— | ||
| replacement | |||||
|
16
|
16
90183-06069-00 Nut, Spring |
90183-06069-00 |
from US $3.54 |
||
|
17
|
17
3B4-2838K-00-00 Box 1 |
3B4-2838K-00-00 |
from US $29.30 |
||
| replacement | |||||
|
17
|
17
1HP-F838K-00-00 Box 1 |
1HP-F838K-00-00 |
from US $24.01 |
||
|
18
|
18
3B4-2838M-00-00 Seal, Box 1 |
3B4-2838M-00-00 |
from US $10.06 |
||
|
19
|
19
901-79055-23-00 Nut |
901-79055-23-00 |
from US $3.26 |
||
|
20
|
20
90480-13004-00 Grommet |
90480-13004-00 |
from US $1.65 |
||
|
21
|
21
3B4-2839N-00-00 Holder |
3B4-2839N-00-00 |
from US $4.45 |
||
|
22
|
22
98502-05016-00 Screw, Pan Head |
98502-05016-00 |
US $1.07 |
||
| replacements | |||||
|
22
|
22
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.07 |
||
|
22
|
22
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
23
|
23
92902-05600-00 Washer, Plate |
92902-05600-00 |
US $1.07 |
||
| replacements | |||||
|
23
|
23
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
23
|
23
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.07 |
||
|
24
|
24
3B4-2151B-00-00 Cap |
3B4-2151B-00-00 |
from US $6.80 |
||
| replacement | |||||
|
24
|
24
1HP-F151B-00-00 Cap |
1HP-F151B-00-00 |
from US $6.80 |
||
|
25
|
25
3B4-28307-00-00 Seal |
3B4-28307-00-00 |
from US $4.11 |
||
|
26
|
26
3B4-215A1-00-00 Plug, Drain |
3B4-215A1-00-00 |
from US $4.53 |
||
|
27
|
27
3B4-2845L-00-00 Stopper, Open |
3B4-2845L-00-00 |
from US $3.26 |
||
|
28
|
28
3B4-28487-00-00 Plate 2 |
3B4-28487-00-00 |
from US $1.70 |
||
|
29
|
29
97702-50512-00 Screw, Tapping |
97702-50512-00 |
US $1.98 |
||
| replacement | |||||
|
29
|
29
97780-50612-00 Screw, Tapping |
97780-50612-00 |
from US $1.98 |
||
|
30
|
30
3B4-28309-00-00 Grille, Front |
3B4-28309-00-00 |
from US $128.90 |
||
| replacements | |||||
|
30
|
30
3B4-28309-01-00 Grille, Front |
3B4-28309-01-00 |
from US $128.90 |
||
|
30
|
30
3B4-28309-02-00 GRILLE FRONT |
3B4-28309-02-00 |
US $118.26 |
||
|
31
|
31
3B4-28217-00-00 Damper 1 |
3B4-28217-00-00 |
from US $8.93 |
||
|
32
|
32
3B4-28227-00-00 Damper 2 |
3B4-28227-00-00 |
from US $8.93 |
||
|
33
|
33
3B4-28237-00-00 Damper 3 |
3B4-28237-00-00 |
from US $8.08 |
||
|
34
|
34
3B4-28247-00-00 Damper 4 |
3B4-28247-00-00 |
from US $8.08 |
||
|
35
|
35
902-69070-10-00 Rivet |
902-69070-10-00 |
from US $1.70 |
||
|
36
|
36
90269-07012-00 Rivet |
90269-07012-00 |
from US $1.34 |
||
|
37
|
37
3B4-28332-00-00 Stay, Leg Shield |
3B4-28332-00-00 |
from US $17.57 |
||
|
38
|
38
5RU-24768-00-00 Stopper |
5RU-24768-00-00 |
from US $2.98 |
||
|
39
|
39
90109-06172-00 Bolt |
90109-06172-00 |
from US $1.34 |
||
|
40
|
40
958-02060-12-00
Bolt, Flange
|
958-02060-12-00 |
— | ||
| replacements | |||||
|
40
|
40
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
40
|
40
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.07 |
||
|
41
|
41
3B4-2837N-00-00 Grill, Air Intake 1 |
3B4-2837N-00-00 |
from US $5.10 |
||
|
42
|
42
3B4-2837R-00-00 Grill, Air Intake 2 |
3B4-2837R-00-00 |
from US $5.10 |
||
|
43
|
43
902-69070-77-00 Rivet |
902-69070-77-00 |
from US $1.84 |
||
|
44
|
44
3B4-28349-00-00 Cap |
3B4-28349-00-00 |
from US $9.49 |
||
|
45
|
45
28P-8212B-00-00 Box, Battery 1 |
28P-8212B-00-00 |
from US $56.51 |
||
| replacement | |||||
|
45
|
45
28P-8212B-01-00 Box, Battery 1 |
28P-8212B-01-00 |
from US $56.51 |
||
|
46
|
46
90119-06152-00 Bolt, With Washer |
90119-06152-00 |
from US $1.35 |
||
|
47
|
47
28P-8253E-00-00 Insulator 1 |
28P-8253E-00-00 |
from US $6.89 |
||
| replacements | |||||
|
47
|
47
1HP-H253E-00-00 Insulator 1 |
1HP-H253E-00-00 |
from US $4.34 |
||
|
47
|
47
1HP-H253E-01-00 Insulator 1 |
1HP-H253E-01-00 |
US $9.59 |
||
|
48
|
48
28P-8253F-00-00 Insulator 2 |
28P-8253F-00-00 |
from US $5.95 |
||
| replacement | |||||
|
48
|
48
1HP-H253F-00-00 Insulator 2 |
1HP-H253F-00-00 |
from US $5.95 |
||
|
49
|
49
28P-8254E-00-00 Insulator |
28P-8254E-00-00 |
from US $4.07 |
||
| replacements | |||||
|
49
|
49
1HP-H254E-00-00 Insulator |
1HP-H254E-00-00 |
from US $3.78 |
||
|
49
|
49
1HP-H254E-01-00 Insulator |
1HP-H254E-01-00 |
US $9.59 |
||
|
50
|
50
3B4-8233W-10-00 Insu |
3B4-8233W-10-00 |
from US $1.70 |
||
|
51
|
51
3B4-82122-00-00 Seat, Battery |
3B4-82122-00-00 |
from US $7.51 |
||
|
52
|
52
34D-82176-00-00 Damper |
34D-82176-00-00 |
from US $1.56 |
||
| replacements | |||||
|
52
|
52
1HP-H2176-00-00 Damper |
1HP-H2176-00-00 |
from US $1.56 |
||
|
52
|
52
1HP-H2176-01-00 Damper |
1HP-H2176-01-00 |
US $2.74 |
||
|
53
|
53
901-83060-53-00
Nut, Spring
|
901-83060-53-00 |
— | ||
| replacement | |||||
|
53
|
53
90183-06069-00 Nut, Spring |
90183-06069-00 |
from US $3.54 |
||
|
54
|
54
90183-05008-00 Nut, Spring |
90183-05008-00 |
from US $2.55 |
||
|
55
|
55
3B4-2837L-00-00 Panel, Console 1 |
3B4-2837L-00-00 |
from US $22.68 |
||
| replacement | |||||
|
55
|
55
3B4-2837L-01-00 Panel, Console 1 |
3B4-2837L-01-00 |
from US $30.33 |
||
|
56
|
56
90119-06152-00 Bolt, With Washer |
90119-06152-00 |
from US $1.35 |
||
|
57
|
57
90480-13567-00 Grommet |
90480-13567-00 |
from US $1.84 |
||
|
58
|
58
3B4-23391-00-00 Panel, Front |
3B4-23391-00-00 |
from US $18.79 |
||
| replacement | |||||
|
58
|
58
1HP-F3391-00-00 Panel, Front |
1HP-F3391-00-00 |
from US $19.62 |
||
|
59
|
59
5KM-2175B-00-00 Tuning Fork Mark |
5KM-2175B-00-00 |
from US $13.56 |
||
|
60
|
60
902-69070-10-00 Rivet |
902-69070-10-00 |
from US $1.70 |
||
|
61
|
61
3B4-28313-00-00 Lid |
3B4-28313-00-00 |
from US $36.68 |
||
| replacements | |||||
|
61
|
61
3B4-28313-01-00 Lid |
3B4-28313-01-00 |
from US $36.68 |
||
|
61
|
61
3B4-28313-02-00 Lid |
3B4-28313-02-00 |
US $42.32 |
||
|
62
|
62
3B4-26232-01-00 Emblem 3D3D |
3B4-26232-01-00 |
from US $35.28 |
||
|
63
|
63
3B4-21552-00-00 Fender, Inner |
3B4-21552-00-00 |
from US $9.72 |
||
| replacement | |||||
|
63
|
63
1HP-F1552-00-00 Fender, Inner |
1HP-F1552-00-00 |
from US $11.27 |
||
|
64
|
64
3B4-21575-10-00 Seal 1 |
3B4-21575-10-00 |
from US $3.40 |
||
| replacement | |||||
|
64
|
64
1HP-F1575-00-00 Seal 1 |
1HP-F1575-00-00 |
from US $2.93 |
||
|
65
|
65
90119-06152-00 Bolt, With Washer |
90119-06152-00 |
from US $1.35 |
||
|
66
|
66
901-83060-53-00
Nut, Spring
|
901-83060-53-00 |
— | ||
| replacement | |||||
|
66
|
66
90183-06069-00 Nut, Spring |
90183-06069-00 |
from US $3.54 |
||
|
67
|
67
3B4-21553-00-00 Fender, Inner 2 |
3B4-21553-00-00 |
from US $16.43 |
||
| replacement | |||||
|
67
|
67
1HP-F1553-00-00 Fender, Inner 2 |
1HP-F1553-00-00 |
from US $16.43 |
||
|
68
|
68
90119-06152-00 Bolt, With Washer |
90119-06152-00 |
from US $1.35 |
||
|
69
|
69
901-83060-53-00
Nut, Spring
|
901-83060-53-00 |
— | ||
| replacement | |||||
|
69
|
69
90183-06069-00 Nut, Spring |
90183-06069-00 |
from US $3.54 |
||
