Oil pump Diagram Yamaha GRIZZLY 700 Grizzly 700 EPS Special Edition
- Engine Capacity
- 700
- Year
- 2010
- Sales region
- USA
- Базовая модель
- YFM7FGPSEZ
- Power
- 47 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Grizzly 700 EPS Special Edition
Difficulties in parts search?
Difficulties in parts search?

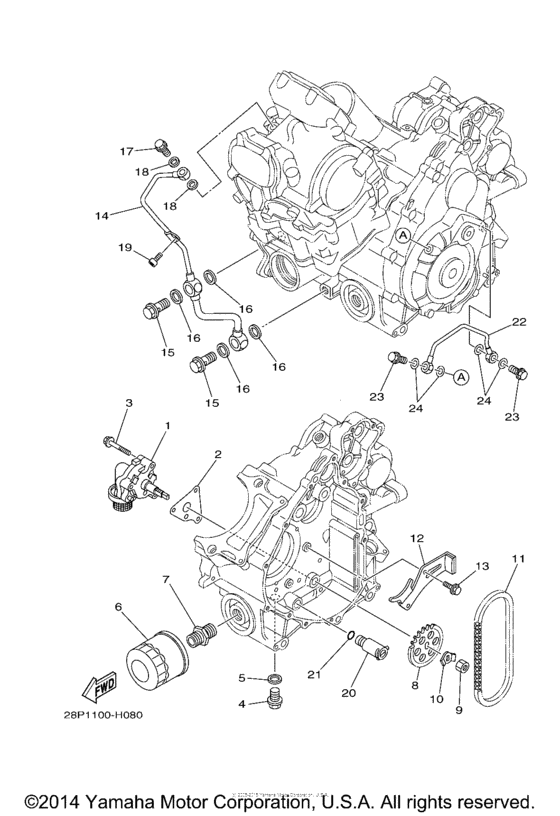

| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3B4-13300-00-00 Oil Pump Assy |
3B4-13300-00-00 |
from US $100.30 |
||
|
2
|
2
3B4-13329-00-00 Gasket, Pump Cover |
3B4-13329-00-00 |
from US $1.34 |
||
|
3
|
3
95022-06040-00 Bolt, Flange |
95022-06040-00 |
from US $1.42 |
||
|
4
|
4
903-40141-32-00 Plug, Straight Screw |
903-40141-32-00 |
from US $1.42 |
||
|
5
|
5
214-11198-01-00 Washer-gasket |
214-11198-01-00 |
from US $1.66 |
||
|
6
|
6
5GH-13440-20-00
Element Assy, Oil Cleaner
|
5GH-13440-20-00 |
— | ||
| replacement | |||||
|
6
|
6
5GH-13440-80-00 Element Assy, Oil Cleaner |
5GH-13440-80-00 |
from US $21.50 |
||
|
7
|
7
90401-20007-00 Bolt, Union |
90401-20007-00 |
from US $14.73 |
||
|
8
|
8
3B4-13355-00-00 Sprocket, Driven |
3B4-13355-00-00 |
from US $19.98 |
||
|
9
|
9
95380-10600-00 Ecrou |
95380-10600-00 |
from US $2 |
||
|
10
|
10
90215-10008-00 Washer, Lock |
90215-10008-00 |
from US $2.55 |
||
|
11
|
11
94580-31074-00 Chain (Did 25Ht)25HT |
94580-31074-00 |
from US $26.35 |
||
|
12
|
12
3B4-12221-00-00 Guide, Stopper 3 |
3B4-12221-00-00 |
from US $13.74 |
||
| replacement | |||||
|
12
|
12
3B4-12221-01-00 GUIDE STOPPER 3 |
3B4-12221-01-00 |
from US $13.74 |
||
|
13
|
13
95022-06020-00 Bolt, Flange |
95022-06020-00 |
from US $1.42 |
||
|
14
|
14
3B4-13171-00-00 Pipe, Delivery 2 |
3B4-13171-00-00 |
from US $97.13 |
||
|
15
|
15
90401-14118-00 Bolt, Union |
90401-14118-00 |
from US $8.50 |
||
|
16
|
16
904-30140-43-00 Gasket |
904-30140-43-00 |
from US $1.13 |
||
|
17
|
17
90401-10024-00 Bolt, Union |
90401-10024-00 |
from US $3.26 |
||
|
18
|
18
90430-10171-00 Gasket (5R6) |
90430-10171-00 |
from US $1.28 |
||
|
19
|
19
91317-06012-00 Bolt |
91317-06012-00 |
from US $1.07 |
||
|
20
|
20
25G-13490-00-00 Relief Valve Assy |
25G-13490-00-00 |
from US $39.38 |
||
|
21
|
21
93210-10096-00 O-Ring |
93210-10096-00 |
from US $1.70 |
||
|
22
|
22
28P-13161-00-00 Pipe, Delivery 1 |
28P-13161-00-00 |
from US $45.45 |
||
|
23
|
23
90401-08006-00 Bolt, Union |
90401-08006-00 |
from US $3.54 |
||
|
24
|
24
90201-08087-00 Washer, Plate 3411117500 |
90201-08087-00 |
from US $1.28 |
||
