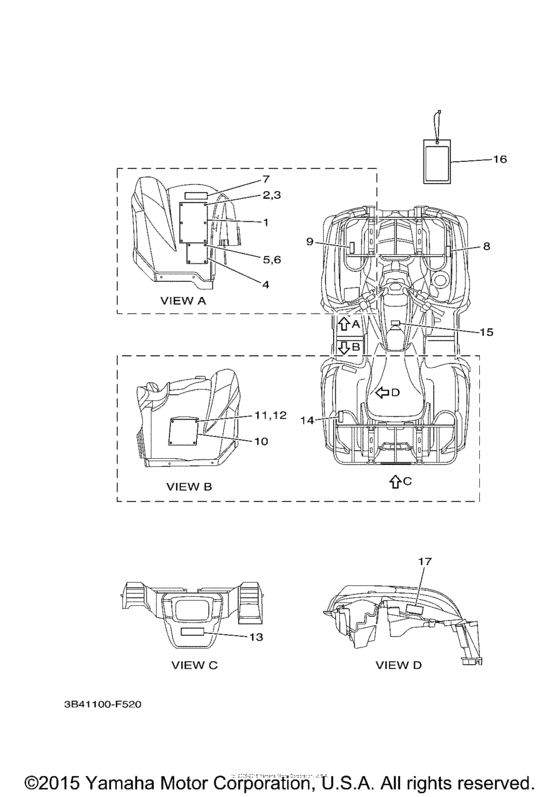

Emblem label (1) Diagram Yamaha GRIZZLY 700 Grizzly 700 EPS
- Model code
- 3B49
- Engine Capacity
- 700
- Year
- 2008
- Sales region
- USA
- Базовая модель
- YFM7FGPXR
- Colour
- Dark Purpulish Blue Solid N/Pastel Deep Green/Romantique Rouge
- Power
- 47 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Grizzly 700 EPS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5FE-21568-01-00 Label, Warning |
5FE-21568-01-00 |
from US $43.52 |
||
|
2
|
2
90267-32004-00 Rivet, Blind |
90267-32004-00 |
from US $2.13 |
||
|
3
|
3
90201-03008-00 Washer, Plate |
90201-03008-00 |
from US $1.70 |
||
|
4
|
4
5FE-21697-01-00
Label, Warning Age
ENGLISH |
5FE-21697-01-00 |
— | ||
| replacement | |||||
|
4
|
4
4D3-2816L-00-00 Label, Warning AgeENGLISH |
4D3-2816L-00-00 |
from US $17.86 |
||
|
5
|
5
90267-32004-00 Rivet, Blind |
90267-32004-00 |
from US $2.13 |
||
|
6
|
6
90201-03008-00 Washer, Plate |
90201-03008-00 |
from US $1.70 |
||
|
7
|
7
5GH-2151E-00-00 Label 2ENGLISH |
5GH-2151E-00-00 |
from US $3.33 |
||
|
8
|
8
3B4-2151F-00-00 Label 3ENGLISH |
3B4-2151F-00-00 |
from US $5.10 |
||
|
9
|
9
3B4-24875-00-00
Label 1
ENGLISH |
3B4-24875-00-00 |
— | ||
|
10
|
10
5KM-21696-00-00 Label, Caution |
5KM-21696-00-00 |
from US $28.48 |
||
|
11
|
11
90267-32004-00 Rivet, Blind |
90267-32004-00 |
from US $2.13 |
||
|
12
|
12
90201-03008-00 Washer, Plate |
90201-03008-00 |
from US $1.70 |
||
|
13
|
13
5KM-2151K-00-00
Label 7
ENGLISH |
5KM-2151K-00-00 |
— | ||
|
14
|
14
3B4-24875-20-00 Label 1ENGLISH |
3B4-24875-20-00 |
from US $5.24 |
||
|
15
|
15
5KM-21558-00-00 Label, Warning 2ENGLISH |
5KM-21558-00-00 |
from US $4.39 |
||
|
16
|
16
3GH-2819R-00-00 Tag, Warning |
3GH-2819R-00-00 |
US $6.32 |
||
|
17
|
17
3B4-2177C-10-00 Plate, Epa Offroad Atv 1 |
3B4-2177C-10-00 |
US $1.67 |
||
