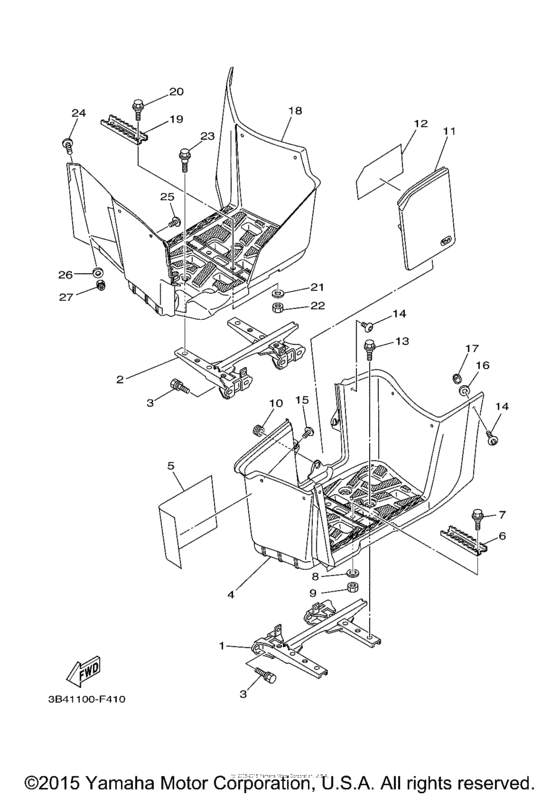

Stand & Footrest Diagram Yamaha GRIZZLY 700 Grizzly 700 EPS
- Model code
- 3B49
- Engine Capacity
- 700
- Year
- 2008
- Sales region
- USA
- Базовая модель
- YFM7FGPXR
- Colour
- Dark Purpulish Blue Solid N/Pastel Deep Green/Romantique Rouge
- Power
- 47 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Grizzly 700 EPS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3B4-27452-00-00 Bracket, Footrest 1 |
3B4-27452-00-00 |
from US $82.76 |
||
|
2
|
2
3B4-27462-00-00 Bracket, Footrest 2 |
3B4-27462-00-00 |
from US $82.76 |
||
|
3
|
3
90119-10044-00 Bolt, With Washer |
90119-10044-00 |
from US $1.98 |
||
|
4
|
4
3B4-27453-01-00 Cover 1 |
3B4-27453-01-00 |
from US $127.52 |
||
|
5
|
5
3B4-21732-00-00 Seal 1 |
3B4-21732-00-00 |
from US $9.07 |
||
|
6
|
6
5GH-2741A-10-00 Arm 1 |
5GH-2741A-10-00 |
from US $7.37 |
||
|
7
|
7
90109-06214-00 Bolt |
90109-06214-00 |
from US $1.34 |
||
|
8
|
8
90201-06033-00 Washer, Plate |
90201-06033-00 |
from US $1.70 |
||
|
9
|
9
95312-06600-00 Nut |
95312-06600-00 |
from US $1.21 |
||
| replacement | |||||
|
9
|
9
95317-06600-00 Nut(6Ta) |
95317-06600-00 |
from US $1.21 |
||
|
10
|
10
90480-14532-00 Grommet |
90480-14532-00 |
from US $4.96 |
||
|
11
|
11
3B4-28239-00-00 Cover 3 |
3B4-28239-00-00 |
from US $13.14 |
||
| replacements | |||||
|
11
|
11
3B4-28239-01-00 Cover 3 |
3B4-28239-01-00 |
from US $14.03 |
||
|
11
|
11
3B4-28239-02-00 COVER 3 |
3B4-28239-02-00 |
from US $10.26 |
||
|
12
|
12
3B4-21735-00-00
Seal 2
|
3B4-21735-00-00 |
— | ||
| replacement | |||||
|
12
|
12
1HP-F1735-00-00 Seal 2 |
1HP-F1735-00-00 |
from US $3.68 |
||
|
13
|
13
90109-06172-00 Bolt |
90109-06172-00 |
from US $1.34 |
||
|
14
|
14
901-10062-00-00 Bolt, Hexagon Socket Head |
901-10062-00-00 |
from US $1.70 |
||
|
15
|
15
90111-06086-00 Bolt,hex. Socket Button |
90111-06086-00 |
from US $1.66 |
||
|
16
|
16
90201-06078-00 Washer, Plate |
90201-06078-00 |
from US $1.70 |
||
|
17
|
17
95702-06300-00 Nut, Nylon |
95702-06300-00 |
from US $1.56 |
||
| replacement | |||||
|
17
|
17
95707-06300-00 Nut, Nylon |
95707-06300-00 |
from US $1.56 |
||
|
18
|
18
3B4-27463-01-00 Cover 2 |
3B4-27463-01-00 |
from US $119.92 |
||
|
19
|
19
5GH-2741A-10-00 Arm 1 |
5GH-2741A-10-00 |
from US $7.37 |
||
|
20
|
20
90109-06214-00 Bolt |
90109-06214-00 |
from US $1.34 |
||
|
21
|
21
90201-06033-00 Washer, Plate |
90201-06033-00 |
from US $1.70 |
||
|
22
|
22
95312-06600-00 Nut |
95312-06600-00 |
from US $1.21 |
||
| replacement | |||||
|
22
|
22
95317-06600-00 Nut(6Ta) |
95317-06600-00 |
from US $1.21 |
||
|
23
|
23
90109-06172-00 Bolt |
90109-06172-00 |
from US $1.34 |
||
|
24
|
24
901-10062-00-00 Bolt, Hexagon Socket Head |
901-10062-00-00 |
from US $1.70 |
||
|
25
|
25
90111-06086-00 Bolt,hex. Socket Button |
90111-06086-00 |
from US $1.66 |
||
|
26
|
26
90201-06078-00 Washer, Plate |
90201-06078-00 |
from US $1.70 |
||
|
27
|
27
95702-06300-00 Nut, Nylon |
95702-06300-00 |
from US $1.56 |
||
| replacement | |||||
|
27
|
27
95707-06300-00 Nut, Nylon |
95707-06300-00 |
from US $1.56 |
||
