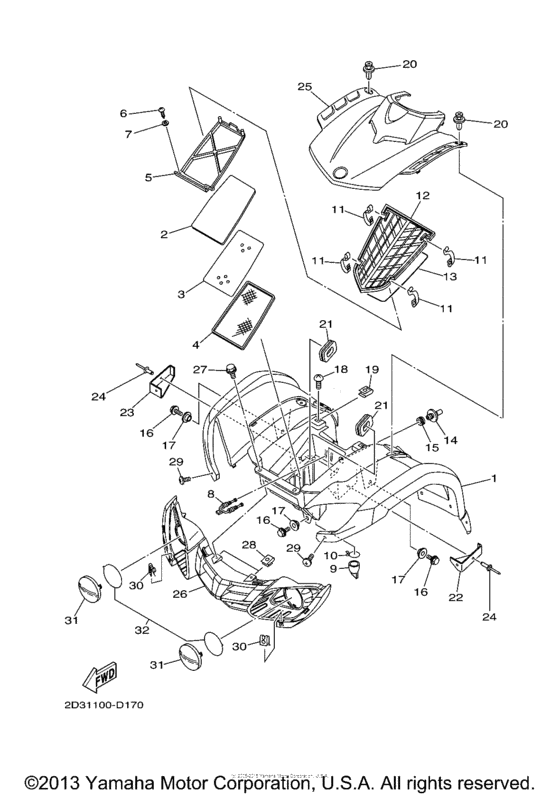

Front fender Diagram Yamaha GRIZZLY 80 Grizzly 80 Hunter
- Model code
- YFM80GX-B
- Engine Capacity
- 79
- Year
- 2008
- Sales region
- USA
- Power
- 6,3 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Grizzly 80 Hunter
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2D3-W2151-B0-00 Front Fender Comp |
2D3-W2151-B0-00 |
US $887.38 |
||
|
2
|
2
55X-14451-00-00 Element, Air Cleaner |
55X-14451-00-00 |
from US $4.68 |
||
|
3
|
3
5TH-14477-00-00 Plate |
5TH-14477-00-00 |
from US $7.79 |
||
|
4
|
4
55X-14472-01-00 Plate, Element |
55X-14472-01-00 |
from US $26.35 |
||
|
5
|
5
55X-14458-00-00 Guide |
55X-14458-00-00 |
from US $7.37 |
||
|
6
|
6
97702-40116-00 Screw, Tapping |
97702-40116-00 |
US $2.55 |
||
| replacement | |||||
|
6
|
6
97780-40116-00 Screw, Tapping |
97780-40116-00 |
from US $2.55 |
||
|
7
|
7
92902-04200-00 Washer |
92902-04200-00 |
from US $1.21 |
||
| replacement | |||||
|
7
|
7
92990-04200-00 Washer |
92990-04200-00 |
from US $1.21 |
||
|
8
|
8
55X-14436-00-00 Hook |
55X-14436-00-00 |
US $4.11 |
||
|
9
|
9
59V-14457-00-00 Seal |
59V-14457-00-00 |
from US $2.66 |
||
|
10
|
10
90467-220A1-00 Clip |
90467-220A1-00 |
from US $1.70 |
||
|
11
|
11
5TH-14436-00-00 Hook |
5TH-14436-00-00 |
from US $2.32 |
||
|
12
|
12
5TH-14412-00-00 Cap, Cleaner Case 1 |
5TH-14412-00-00 |
from US $26.21 |
||
|
13
|
13
5TH-14452-00-00 Seal |
5TH-14452-00-00 |
from US $9.49 |
||
| replacement | |||||
|
13
|
13
1VJ-14462-00-00 Seal |
1VJ-14462-00-00 |
from US $7.62 |
||
|
14
|
14
2D3-14419-00-00 Pipe |
2D3-14419-00-00 |
from US $3.82 |
||
|
15
|
15
31A-14435-00-00 Grommet |
31A-14435-00-00 |
from US $5.38 |
||
| replacement | |||||
|
15
|
15
31A-14435-01-00 |
31A-14435-01-00 |
from US $5.38 |
||
|
16
|
16
90119-06137-00 Bolt, With Washer |
90119-06137-00 |
from US $1.70 |
||
|
17
|
17
90387-06202-00 Collar |
90387-06202-00 |
from US $6.23 |
||
|
18
|
18
90149-06021-00 Screw |
90149-06021-00 |
from US $1.84 |
||
|
19
|
19
901-83060-53-00
Nut, Spring
|
901-83060-53-00 |
— | ||
| replacement | |||||
|
19
|
19
90183-06069-00 Nut, Spring |
90183-06069-00 |
from US $3.54 |
||
|
20
|
20
902-69070-76-00 Rivet(4Jh) |
902-69070-76-00 |
from US $1.66 |
||
|
21
|
21
2HX-14437-01-00 Duct |
2HX-14437-01-00 |
from US $5.10 |
||
|
22
|
22
2D3-23741-00-00 Cap 1 |
2D3-23741-00-00 |
US $13.55 |
||
|
23
|
23
2D3-23742-00-00 Cap 2 |
2D3-23742-00-00 |
US $13.55 |
||
|
24
|
24
90267-50010-00 Rivet, Blind (5X23.6 Black)5X23.6 BLACK |
90267-50010-00 |
from US $1.98 |
||
| replacement | |||||
|
24
|
24
90267-48024-00 Rivet, Blind5X23.6 BLACK |
90267-48024-00 |
from US $1.98 |
||
|
25
|
25
2D3-23391-00-00 Panel, Front |
2D3-23391-00-00 |
US $106.88 |
||
|
26
|
26
2D3-28309-00-00 Grille, Front |
2D3-28309-00-00 |
US $111.83 |
||
|
27
|
27
90109-06172-00 Bolt |
90109-06172-00 |
from US $1.34 |
||
|
28
|
28
90183-060A7-00 Nut, Spring |
90183-060A7-00 |
from US $2.55 |
||
|
29
|
29
90154-05021-00 Screw, Binding |
90154-05021-00 |
from US $1.70 |
||
|
30
|
30
90183-050A7-00 Nut, Spring |
90183-050A7-00 |
from US $3.54 |
||
|
31
|
31
2D3-84121-00-00 Lens, Headlight |
2D3-84121-00-00 |
US $10.78 |
||
|
32
|
32
2D3-8412B-00-00 Graphic Set |
2D3-8412B-00-00 |
US $17.62 |
||
