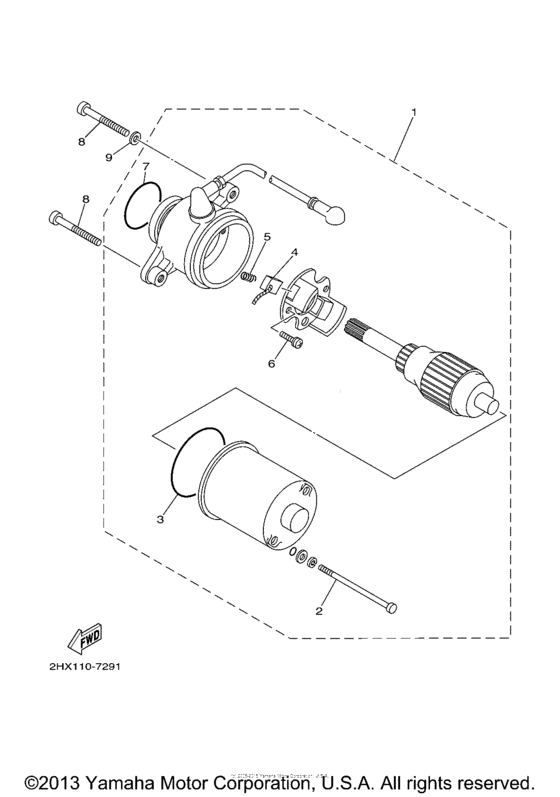

Starting motor Diagram Yamaha GRIZZLY 80 Grizzly 80 Hunter
- Model code
- YFM80GX-B
- Engine Capacity
- 79
- Year
- 2008
- Sales region
- USA
- Power
- 6,3 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Grizzly 80 Hunter
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55X-81800-51-00 Starting Motor Assy |
55X-81800-51-00 |
from US $484.38 |
||
|
2
|
2
55X-81826-50-00 Bolt |
55X-81826-50-00 |
from US $8.38 |
||
|
3
|
3
5J3-81847-50-00 O-Ring |
5J3-81847-50-00 |
from US $17.14 |
||
|
4
|
4
22J-81801-50-00
Brush Set
|
22J-81801-50-00 |
— | ||
|
5
|
5
55X-81855-50-00 Spring, Brush |
55X-81855-50-00 |
from US $5.39 |
||
|
6
|
6
5J3-81846-50-00 Screw, Pan Head |
5J3-81846-50-00 |
from US $1.35 |
||
| replacement | |||||
|
6
|
6
98517-04012-00 Screw, Pan Head |
98517-04012-00 |
from US $1.07 |
||
|
7
|
7
22J-81847-50-00 O-Ring |
22J-81847-50-00 |
from US $15.12 |
||
|
8
|
8
913-12060-35-00
Bolt
|
913-12060-35-00 |
— | ||
| replacements | |||||
|
8
|
8
90110-06X45-00 Bolt, Hexagon Sock |
90110-06X45-00 |
US $41.20 |
||
|
8
|
8
901-1006X-79-00 Bolt, Hexagon Socket Head |
901-1006X-79-00 |
from US $3.98 |
||
|
9
|
9
929-02062-00-00
Washer, Plain
|
929-02062-00-00 |
— | ||
| replacement | |||||
|
9
|
9
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
