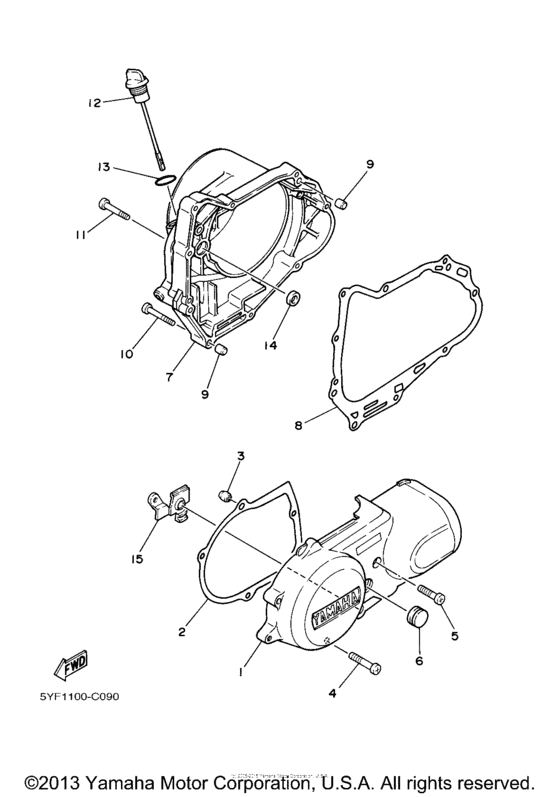

Crankcase cover (1) Diagram Yamaha GRIZZLY 80 Grizzly 80 Hunter
- Model code
- YFM80GHW
- Engine Capacity
- 79
- Year
- 2007
- Sales region
- USA
- Power
- 6,3 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Grizzly 80 Hunter
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22F-15411-01-00 Cover, Crankcase 1 |
22F-15411-01-00 |
from US $61.96 |
||
|
2
|
2
3GB-15451-00-00 Gasket, Crankcase Cover 1 |
3GB-15451-00-00 |
from US $19.84 |
||
|
3
|
3
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.66 |
||
|
4
|
4
98507-06040-00 Screw, Pan Head |
98507-06040-00 |
from US $1.56 |
||
|
5
|
5
98507-06030-00 Screw, Pan Head |
98507-06030-00 |
US $2.13 |
||
| replacement | |||||
|
5
|
5
98517-06030-00 Screw, Pan Head |
98517-06030-00 |
from US $1.34 |
||
|
6
|
6
22F-15417-00-00 Cover, Cap |
22F-15417-00-00 |
from US $2.27 |
||
|
7
|
7
2FJ-15421-00-00 Cover, Crankcase 2 |
2FJ-15421-00-00 |
from US $115.16 |
||
|
8
|
8
3GB-15461-00-00 Gasket, Crankcase Cover 2 |
3GB-15461-00-00 |
from US $9.26 |
||
|
9
|
9
995-30101-20-00 Pin, Dowel |
995-30101-20-00 |
from US $1.43 |
||
|
10
|
10
98507-06045-00 Screw, Pan Head |
98507-06045-00 |
from US $1.34 |
||
|
11
|
11
98507-06035-00 Screw, Pan Head |
98507-06035-00 |
from US $1.21 |
||
|
12
|
12
55X-15362-04-00 Plug, Oil Level |
55X-15362-04-00 |
from US $11.76 |
||
| replacement | |||||
|
12
|
12
55X-15362-10-00 Plug, Oil Level |
55X-15362-10-00 |
from US $8.96 |
||
|
13
|
13
932-10191-23-00 O-Ring |
932-10191-23-00 |
from US $1.70 |
||
|
14
|
14
93101-10142-00 Oil Seal |
93101-10142-00 |
from US $6.94 |
||
|
15
|
15
90209-11269-00 Washer |
90209-11269-00 |
from US $14.31 |
||
