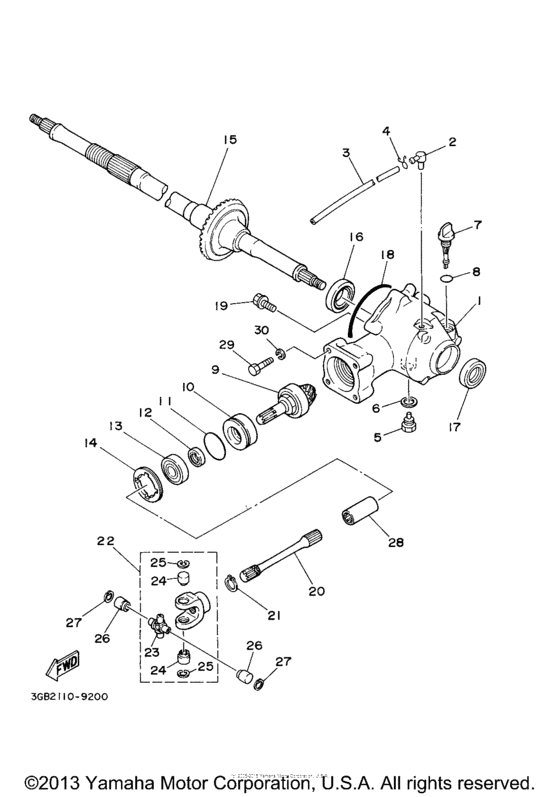

Drive shaft Diagram Yamaha GRIZZLY 80 Grizzly 80 Hunter
- Model code
- YFM80GHW
- Engine Capacity
- 79
- Year
- 2007
- Sales region
- USA
- Power
- 6,3 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Grizzly 80 Hunter
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3GB-46151-00-00 Housing, Drive Shaft |
3GB-46151-00-00 |
from US $186.45 |
||
|
2
|
2
2N4-15371-00-00
Breather
|
2N4-15371-00-00 |
— | ||
| replacement | |||||
|
2
|
2
5UG-15371-00-00 Breather |
5UG-15371-00-00 |
from US $15.87 |
||
|
3
|
3
90445-073F9-00 Hose (L1700) |
90445-073F9-00 |
from US $9.72 |
||
| replacement | |||||
|
3
|
3
90445-070G6-00 Hose (L1700) |
90445-070G6-00 |
from US $11.05 |
||
|
4
|
4
90467-07029-00 Clip |
90467-07029-00 |
from US $1.70 |
||
|
5
|
5
903-40141-32-00 Plug, Straight Screw |
903-40141-32-00 |
from US $1.42 |
||
|
6
|
6
214-11198-01-00 Washer-gasket |
214-11198-01-00 |
from US $1.66 |
||
|
7
|
7
3GB-15362-00-00 Plug, Oil Level |
3GB-15362-00-00 |
from US $16.72 |
||
|
8
|
8
932-10141-04-00
O-Ring
|
932-10141-04-00 |
— | ||
| replacement | |||||
|
8
|
8
93210-14579-00 O-Ring (26H) |
93210-14579-00 |
from US $1.28 |
||
|
9
|
9
3GB-46120-00-00 Drive Pinion Comp |
3GB-46120-00-00 |
from US $167.17 |
||
|
10
|
10
90560-23355-00 Spacer |
90560-23355-00 |
from US $30.11 |
||
|
11
|
11
932-10437-13-00 O-Ring(1Ey) |
932-10437-13-00 |
from US $1.70 |
||
|
12
|
12
93102-17271-00 Oil Seal |
93102-17271-00 |
from US $4.53 |
||
|
13
|
13
93306-30306-00 Bearing |
93306-30306-00 |
from US $28.19 |
||
| replacement | |||||
|
13
|
13
93306-30317-00 Bearing |
93306-30317-00 |
from US $28.19 |
||
|
14
|
14
90179-55464-00 Nut |
90179-55464-00 |
from US $14.88 |
||
|
15
|
15
3GB-46110-20-00 Ring Gear Comp |
3GB-46110-20-00 |
US $464.69 |
||
|
16
|
16
93306-07801-00 Bearing |
93306-07801-00 |
from US $19.84 |
||
|
17
|
17
93102-28022-00 Oil Seal |
93102-28022-00 |
from US $4.64 |
||
|
18
|
18
93211-066A9-00 O-Ring |
93211-066A9-00 |
from US $6.66 |
||
|
19
|
19
95817-06016-00 Bolt, Flange |
95817-06016-00 |
from US $1.07 |
||
|
20
|
20
3GB-46172-01-00 Shaft, Drive |
3GB-46172-01-00 |
from US $55.40 |
||
|
21
|
21
99009-17400-00 Circlip |
99009-17400-00 |
from US $1.56 |
||
| replacement | |||||
|
21
|
21
93410-17X00-00 Circlip |
93410-17X00-00 |
US $1.56 |
||
|
22
|
22
2HX-46180-00-00 Cross Joint Comp |
2HX-46180-00-00 |
from US $164.94 |
||
|
23
|
23
22F-46187-00-00 Spider |
22F-46187-00-00 |
from US $40.16 |
||
|
24
|
24
93311-20952-00 Bearing |
93311-20952-00 |
from US $10.91 |
||
|
25
|
25
99009-17500-00 Circlip |
99009-17500-00 |
from US $1.56 |
||
|
26
|
26
93311-20952-00 Bearing |
93311-20952-00 |
from US $10.91 |
||
|
27
|
27
99009-17500-00 Circlip |
99009-17500-00 |
from US $1.56 |
||
|
28
|
28
22F-46123-01-00 Coupling, Gear |
22F-46123-01-00 |
from US $20.97 |
||
|
29
|
29
90101-08461-00 Bolt |
90101-08461-00 |
from US $1.70 |
||
|
30
|
30
92907-08100-00 Washer, Spring |
92907-08100-00 |
from US $0.85 |
||
