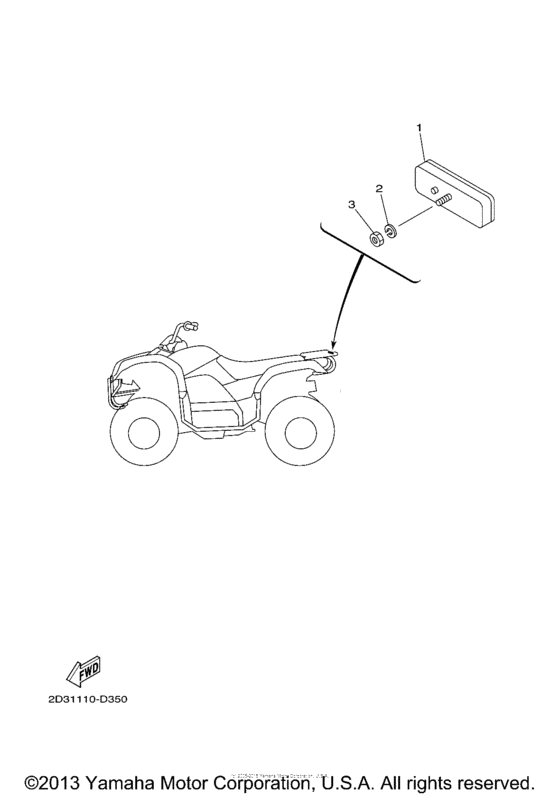

Electrical (2) Diagram Yamaha GRIZZLY 80 Grizzly 80 Hunter
- Model code
- YFM80GHW
- Engine Capacity
- 79
- Year
- 2007
- Sales region
- USA
- Power
- 6,3 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Grizzly 80 Hunter
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3Y6-85130-02-00 Reflector |
3Y6-85130-02-00 |
from US $10.58 |
||
|
2
|
2
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
|
3
|
3
95307-05600-00 Nut(N28) |
95307-05600-00 |
from US $1.26 |
||
| replacement | |||||
|
3
|
3
95317-05600-00 Nut |
95317-05600-00 |
from US $2.13 |
||
