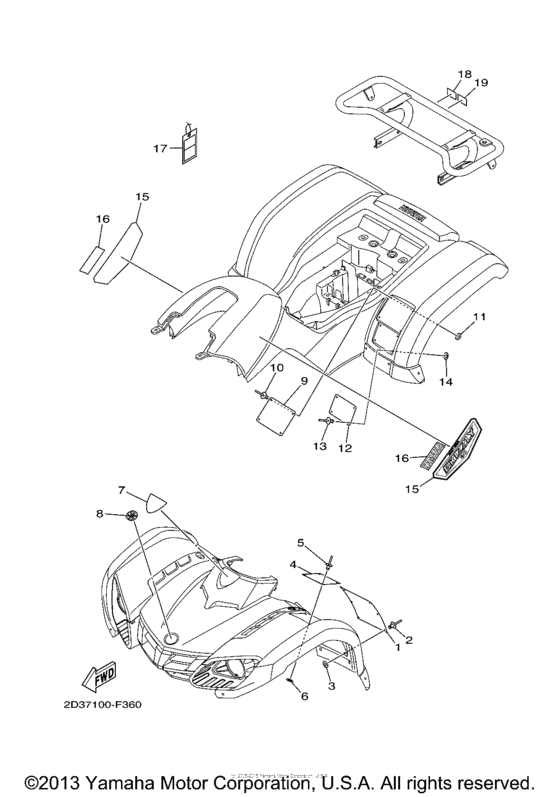

Emblem label (1) Diagram Yamaha GRIZZLY 80 Grizzly 80 Hunter
- Model code
- YFM80GHW
- Engine Capacity
- 79
- Year
- 2007
- Sales region
- USA
- Power
- 6,3 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Grizzly 80 Hunter
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5FE-21568-01-00 Label, Warning |
5FE-21568-01-00 |
from US $43.52 |
||
|
2
|
2
90267-32004-00 Rivet, Blind |
90267-32004-00 |
from US $2.13 |
||
|
3
|
3
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
4
|
4
4EM-21697-31-00 Label, Caution 2ENGLISH |
4EM-21697-31-00 |
from US $23.83 |
||
|
5
|
5
90267-32004-00 Rivet, Blind |
90267-32004-00 |
from US $2.13 |
||
|
6
|
6
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
7
|
7
3B4-26232-00-00 Emblem 3D3D |
3B4-26232-00-00 |
from US $33.89 |
||
| replacement | |||||
|
7
|
7
3B4-26232-01-00 Emblem 3D3D |
3B4-26232-01-00 |
from US $35.28 |
||
|
8
|
8
5KM-2175B-00-00 Tuning Fork Mark |
5KM-2175B-00-00 |
from US $13.56 |
||
|
9
|
9
4EM-21696-11-00 Label, Caution |
4EM-21696-11-00 |
from US $28.05 |
||
|
10
|
10
90267-32004-00 Rivet, Blind |
90267-32004-00 |
from US $2.13 |
||
|
11
|
11
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
12
|
12
5FE-2151H-01-00 Label 5ENGLISH |
5FE-2151H-01-00 |
from US $23.80 |
||
|
13
|
13
90267-32004-00 Rivet, Blind |
90267-32004-00 |
from US $2.13 |
||
|
14
|
14
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
15
|
15
2D3-2173E-70-00 Graphic 1 |
2D3-2173E-70-00 |
US $26.91 |
||
|
16
|
16
4ES-2153E-20-00 Emblem, Yamaha |
4ES-2153E-20-00 |
from US $3.13 |
||
| replacement | |||||
|
16
|
16
4ES-2153E-21-00 |
4ES-2153E-21-00 |
US $4.64 |
||
|
17
|
17
4EM-2819R-00-00 Tag, Warning |
4EM-2819R-00-00 |
from US $10.08 |
||
|
18
|
18
3MX-24875-A0-00 Label 1ENGLISH |
3MX-24875-A0-00 |
from US $1.84 |
||
|
19
|
19
3LD-24877-A0-00 Label, Caution |
3LD-24877-A0-00 |
from US $1.84 |
||
