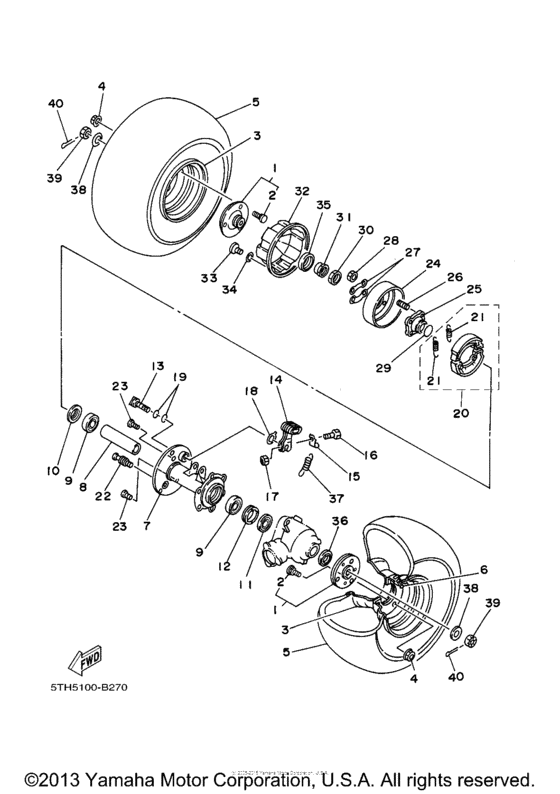

Rear wheel Diagram Yamaha GRIZZLY 80 Grizzly 80 Hunter
- Model code
- YFM80GHW
- Engine Capacity
- 79
- Year
- 2007
- Sales region
- USA
- Power
- 6,3 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Grizzly 80 Hunter
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55X-25383-10-00 Collar, Wheel |
55X-25383-10-00 |
from US $76.13 |
||
|
2
|
2
90114-08001-00 Bolt, Serration |
90114-08001-00 |
from US $2.13 |
||
|
3
|
3
2FJ-25390-00-98 Rear Wheel Comp |
2FJ-25390-00-98 |
from US $101.98 |
||
|
4
|
4
957-07085-00-00
Nut, Flange
|
957-07085-00-00 |
— | ||
| replacement | |||||
|
4
|
4
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.28 |
||
|
5
|
5
94108-07009-00 TireN DUNLOP |
94108-07009-00 |
US $168.30 |
||
| replacement | |||||
|
5
|
5
2D3-2510K-19-00 TIRE At18X8-7 Kt587 T/L N (Duro)N DUNLOP |
2D3-2510K-19-00 |
from US $114.67 |
||
|
6
|
6
939-00000-22-00
Valve, Rim (Tr413)
|
939-00000-22-00 |
— | ||
| replacement | |||||
|
6
|
6
939-00000-30-00 Valve, Rim (Tr412) |
939-00000-30-00 |
from US $7.65 |
||
|
7
|
7
3GB-25311-00-33 Hub, RearYB |
3GB-25311-00-33 |
US $265.97 |
||
|
8
|
8
3GB-25317-00-00 Spacer, Bearing |
3GB-25317-00-00 |
from US $28.05 |
||
|
9
|
9
933-06006-12-00 Bearing |
933-06006-12-00 |
from US $23.09 |
||
|
10
|
10
93102-38383-00 Oil Seal |
93102-38383-00 |
from US $8.36 |
||
| replacement | |||||
|
10
|
10
93106-38046-00 Oil Seal |
93106-38046-00 |
from US $7.28 |
||
|
11
|
11
93102-36409-00 Oil Seal |
93102-36409-00 |
from US $9.63 |
||
|
12
|
12
3GB-25382-00-00 Nut, Axle |
3GB-25382-00-00 |
from US $37.44 |
||
|
13
|
13
3Y6-25351-00-00 Camshaft |
3Y6-25351-00-00 |
from US $27.77 |
||
| replacement | |||||
|
13
|
13
4GL-25351-00-00 Camshaft |
4GL-25351-00-00 |
from US $27.77 |
||
|
14
|
14
55X-25355-00-00 Lever, Camshaft |
55X-25355-00-00 |
from US $30.04 |
||
|
15
|
15
55X-2533H-00-00 Hook, Spring |
55X-2533H-00-00 |
from US $3.67 |
||
|
16
|
16
90101-06562-00 Bolt |
90101-06562-00 |
from US $1.67 |
||
| replacement | |||||
|
16
|
16
90101-06278-00 Bolt |
90101-06278-00 |
from US $1.54 |
||
|
17
|
17
953-07066-00-00
Nut
|
953-07066-00-00 |
— | ||
| replacement | |||||
|
17
|
17
95317-06600-00 Nut(6Ta) |
95317-06600-00 |
from US $1.21 |
||
|
18
|
18
23F-2533A-00-00 Plate, Indicator |
23F-2533A-00-00 |
from US $2.55 |
||
|
19
|
19
932-10141-04-00
O-Ring
|
932-10141-04-00 |
— | ||
| replacement | |||||
|
19
|
19
93210-14579-00 O-Ring (26H) |
93210-14579-00 |
from US $1.28 |
||
|
20
|
20
3FA-W253E-00-00 Brake Shoe Kit |
3FA-W253E-00-00 |
from US $28.64 |
||
| replacement | |||||
|
20
|
20
3FA-W253A-00-00 Brake Shoe Kit |
3FA-W253A-00-00 |
from US $32.17 |
||
|
21
|
21
90506-15260-00 Spring, Tension |
90506-15260-00 |
from US $1.35 |
||
|
22
|
22
3GB-25326-00-00 Pin, Pivot |
3GB-25326-00-00 |
from US $43.93 |
||
|
23
|
23
90114-10005-00 Bolt, Serration |
90114-10005-00 |
from US $2.55 |
||
|
24
|
24
3GB-2531E-00-00 Drum, Brake |
3GB-2531E-00-00 |
from US $105.28 |
||
|
25
|
25
3GB-25343-10-00 Boss |
3GB-25343-10-00 |
from US $108.87 |
||
|
26
|
26
90116-08507-00 Bolt, Stud |
90116-08507-00 |
from US $1.69 |
||
|
27
|
27
390-25412-01-00 Washer, Lock |
390-25412-01-00 |
from US $12.04 |
||
| replacement | |||||
|
27
|
27
40E-25834-00-00 Washer, Lock |
40E-25834-00-00 |
from US $9.76 |
||
|
28
|
28
95307-08600-00 Nut, Hex |
95307-08600-00 |
from US $1.42 |
||
| replacement | |||||
|
28
|
28
95337-08600-00 Nut |
95337-08600-00 |
from US $1.13 |
||
|
29
|
29
932-10266-06-00
O-Ring
|
932-10266-06-00 |
— | ||
| replacement | |||||
|
29
|
29
93210-26662-00 O-Ring |
93210-26662-00 |
from US $2.83 |
||
|
30
|
30
90170-28011-00 Nut |
90170-28011-00 |
from US $11.05 |
||
|
31
|
31
90179-28009-00 Nut |
90179-28009-00 |
from US $20.26 |
||
|
32
|
32
3GB-25715-00-00 Cover 1 |
3GB-25715-00-00 |
from US $76.68 |
||
|
33
|
33
985-07060-12-00
Screw, Pan Head
|
985-07060-12-00 |
— | ||
| replacement | |||||
|
33
|
33
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.34 |
||
|
34
|
34
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
35
|
35
93102-35349-00 Oil Seal |
93102-35349-00 |
from US $10.48 |
||
| replacement | |||||
|
35
|
35
93102-35191-00 Oil Seal (705) |
93102-35191-00 |
from US $10.48 |
||
|
36
|
36
3GB-25367-00-00 Cover, Hub Dust |
3GB-25367-00-00 |
from US $11.62 |
||
|
37
|
37
90507-15038-00 Spring, Tension |
90507-15038-00 |
from US $3.40 |
||
|
38
|
38
90201-12045-00 Washer, Plate |
90201-12045-00 |
from US $1.70 |
||
|
39
|
39
901-71120-01-00 Nut, Castle |
901-71120-01-00 |
from US $1.84 |
||
|
40
|
40
91401-25025-00 Pin. Cotter |
91401-25025-00 |
from US $1.56 |
||
| replacement | |||||
|
40
|
40
91490-25030-00 Pin. Cotter |
91490-25030-00 |
from US $1.34 |
||
