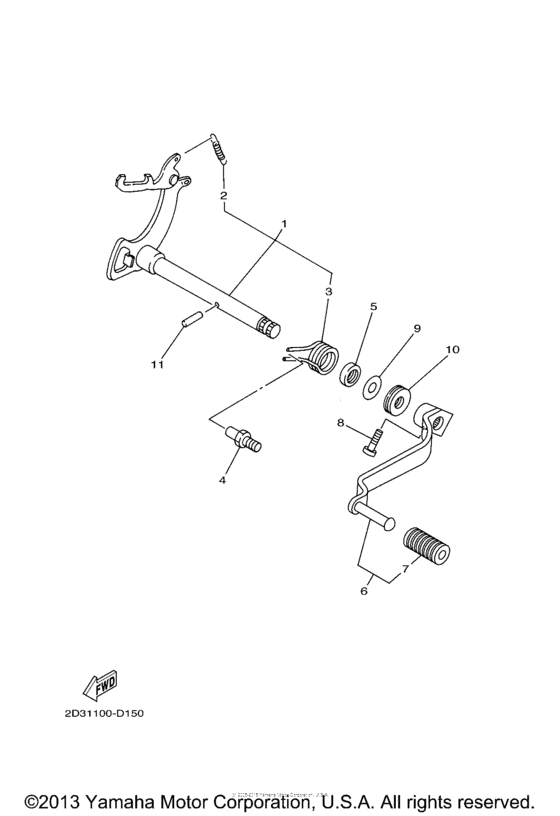

Shift shaft Diagram Yamaha GRIZZLY 80 Grizzly 80 Hunter
- Model code
- YFM80GHW
- Engine Capacity
- 79
- Year
- 2007
- Sales region
- USA
- Power
- 6,3 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Grizzly 80 Hunter
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22F-18101-03-00 Shift Shaft Assy |
22F-18101-03-00 |
from US $64.42 |
||
|
2
|
2
90506-08122-00 Spring, Tension |
90506-08122-00 |
from US $2.13 |
||
|
3
|
3
90508-32563-00 Spring, Torsion |
90508-32563-00 |
from US $6.23 |
||
|
4
|
4
278-18127-01-00 Stopper, Screw |
278-18127-01-00 |
from US $8.50 |
||
|
5
|
5
93102-12106-00 Oil Seal (Sd 12-22-5 Hs) |
93102-12106-00 |
from US $2.98 |
||
| replacement | |||||
|
5
|
5
931-02123-21-00 Oil Seal |
931-02123-21-00 |
from US $4.53 |
||
|
6
|
6
2D3-18110-10-00 Shift Pedal Assy |
2D3-18110-10-00 |
US $43.60 |
||
|
7
|
7
132-18113-01-00 Cover, Shift Pedal |
132-18113-01-00 |
from US $1.66 |
||
|
8
|
8
97022-06020-00 Bolt |
97022-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
8
|
8
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
9
|
9
90201-127F4-00 Washer, Plate90201-127F4-00 |
90201-127F4-00 |
from US $3.40 |
||
| replacement | |||||
|
9
|
9
90201-126L0-00 Washer, Plate (90201-127F4-00)90201-127F4-00 |
90201-126L0-00 |
from US $3.40 |
||
|
10
|
10
933-40212-09-00 Bearing, Thrust(2Fl) |
933-40212-09-00 |
from US $13.88 |
||
|
11
|
11
93604-20156-00 Pin, Dowel |
93604-20156-00 |
from US $1.56 |
||
