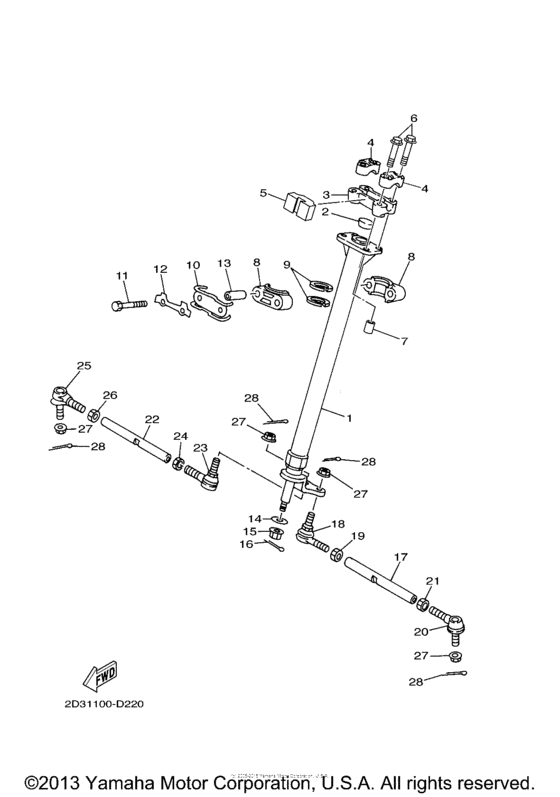

Steering Diagram Yamaha GRIZZLY 80 Grizzly 80 Hunter
- Model code
- YFM80GHW
- Engine Capacity
- 79
- Year
- 2007
- Sales region
- USA
- Power
- 6,3 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Grizzly 80 Hunter
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4EM-23813-10-00 Column, Steering 2 |
4EM-23813-10-00 |
from US $123.52 |
||
| replacement | |||||
|
1
|
1
4EM-23813-20-00 Column, Steering 2 |
4EM-23813-20-00 |
from US $123.52 |
||
|
2
|
2
90336-28053-00 Plug, Taper |
90336-28053-00 |
from US $1.65 |
||
|
3
|
3
8G5-23814-00-00
Holder, Handle Under (8G5-23814
8G5-23814 |
8G5-23814-00-00 |
— | ||
| replacement | |||||
|
3
|
3
164-23441-01-98 Handle, Holder8G5-23814 |
164-23441-01-98 |
from US $47.25 |
||
|
4
|
4
8K1-23814-00-00 Holder, Handle |
8K1-23814-00-00 |
from US $19.19 |
||
| replacement | |||||
|
4
|
4
1E6-23441-00-00 Holder, Handle Upr (1E6-23441-0 |
1E6-23441-00-00 |
from US $20.97 |
||
|
5
|
5
2D3-23858-00-00 Spacer |
2D3-23858-00-00 |
from US $2.05 |
||
|
6
|
6
95827-08055-00 Bolt, Flange |
95827-08055-00 |
from US $1.42 |
||
| replacement | |||||
|
6
|
6
95817-08055-00 Bolt, Flange |
95817-08055-00 |
from US $1.33 |
||
|
7
|
7
90445-11418-00 Hose (L70) |
90445-11418-00 |
from US $1.84 |
||
| replacement | |||||
|
7
|
7
90445-112E0-00 Hose (L70) |
90445-112E0-00 |
from US $1.34 |
||
|
8
|
8
1UY-23812-00-00 Bearing, Steering |
1UY-23812-00-00 |
from US $6.80 |
||
|
9
|
9
93112-31011-00 Oil Seal |
93112-31011-00 |
from US $2.98 |
||
|
10
|
10
3GB-23868-00-00 Bracket, Steering Lower |
3GB-23868-00-00 |
from US $16.29 |
||
|
11
|
11
97027-08060-00 Bolt, Hexagon |
97027-08060-00 |
from US $2.41 |
||
| replacement | |||||
|
11
|
11
97017-08060-00 Bolt |
97017-08060-00 |
from US $2.41 |
||
|
12
|
12
1UY-23894-01-00 Washer, Lock 1 |
1UY-23894-01-00 |
from US $1.70 |
||
|
13
|
13
90387-090R0-00 Collar (903-87090-R0-00)903-87090-R0-00 |
90387-090R0-00 |
from US $12.64 |
||
| replacement | |||||
|
13
|
13
903-87106-T4-00 Collar (903-87090-R0-00)903-87090-R0-00 |
903-87106-T4-00 |
from US $13.77 |
||
|
14
|
14
90201-10774-00 Washer, Plate (3L6) |
90201-10774-00 |
from US $1.35 |
||
|
15
|
15
90185-10115-00 Nut, Self-Locking |
90185-10115-00 |
from US $1.84 |
||
| replacement | |||||
|
15
|
15
90185-10154-00 Nut, Self-Locking |
90185-10154-00 |
from US $2.69 |
||
|
16
|
16
914-01200-20-00
Pin, Cotter
|
914-01200-20-00 |
— | ||
| replacement | |||||
|
16
|
16
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
17
|
17
3GB-23831-00-00 Rod, Tie |
3GB-23831-00-00 |
from US $16.59 |
||
|
18
|
18
55X-23841-01-00 Joint, Universal 1 |
55X-23841-01-00 |
from US $53.74 |
||
|
19
|
19
95307-10700-00 Nut (95307-10700-00 )95307-10700-00 |
95307-10700-00 |
from US $2.41 |
||
| replacement | |||||
|
19
|
19
95317-10700-00 Nut95307-10700-00 |
95317-10700-00 |
from US $2.41 |
||
|
20
|
20
52H-23845-01-00 Joint, Universal 2 |
52H-23845-01-00 |
from US $67.09 |
||
|
21
|
21
90170-10186-00 Nut, Hexagon (8A5) |
90170-10186-00 |
from US $1.28 |
||
|
22
|
22
3GB-23831-00-00 Rod, Tie |
3GB-23831-00-00 |
from US $16.59 |
||
|
23
|
23
55X-23841-01-00 Joint, Universal 1 |
55X-23841-01-00 |
from US $53.74 |
||
|
24
|
24
95307-10700-00 Nut (95307-10700-00 )95307-10700-00 |
95307-10700-00 |
from US $2.41 |
||
| replacement | |||||
|
24
|
24
95317-10700-00 Nut95307-10700-00 |
95317-10700-00 |
from US $2.41 |
||
|
25
|
25
52H-23845-01-00 Joint, Universal 2 |
52H-23845-01-00 |
from US $67.09 |
||
|
26
|
26
90170-10186-00 Nut, Hexagon (8A5) |
90170-10186-00 |
from US $1.28 |
||
|
27
|
27
90185-10115-00 Nut, Self-Locking |
90185-10115-00 |
from US $1.84 |
||
| replacement | |||||
|
27
|
27
90185-10154-00 Nut, Self-Locking |
90185-10154-00 |
from US $2.69 |
||
|
28
|
28
914-01200-20-00
Pin, Cotter
|
914-01200-20-00 |
— | ||
| replacement | |||||
|
28
|
28
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
