Intake Diagram Yamaha GRIZZLY 80 Grizzly 80 Hunter
- Model code
- YFM80GHX
- Engine Capacity
- 79
- Year
- 2008
- Sales region
- USA
- Power
- 6,3 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Grizzly 80 Hunter
Difficulties in parts search?
Difficulties in parts search?

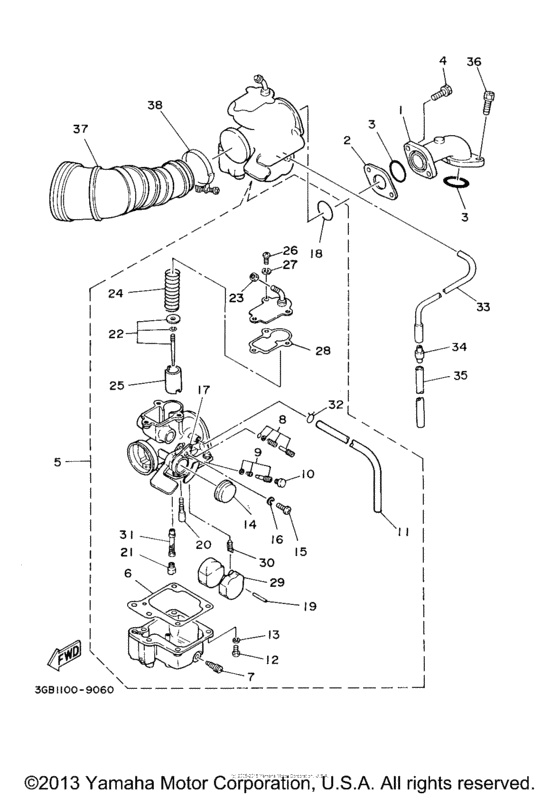

| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55X-13586-00-00 Joint, Carburetor 1 |
55X-13586-00-00 |
from US $39.65 |
||
|
2
|
2
22K-13595-00-00 Joint |
22K-13595-00-00 |
from US $7.51 |
||
|
3
|
3
93210-25552-00 O-Ring |
93210-25552-00 |
from US $4.30 |
||
|
4
|
4
90159-06041-00 Screw, With Washer |
90159-06041-00 |
from US $2.13 |
||
| replacement | |||||
|
4
|
4
90159-06076-00 Screw, With Washer |
90159-06076-00 |
from US $1.66 |
||
|
5
|
5
5TH-14101-11-00 Carburetor Assy 1 |
5TH-14101-11-00 |
from US $299.81 |
||
|
6
|
6
22F-14184-00-00 Gasket, Float Chamber |
22F-14184-00-00 |
from US $4.64 |
||
|
7
|
7
12R-14191-00-00 Plug, Drain |
12R-14191-00-00 |
from US $8.64 |
||
|
8
|
8
22F-14103-00-00 Throttle Screw Set |
22F-14103-00-00 |
from US $10.34 |
||
|
9
|
9
22K-14104-00-00 Air Screw Set |
22K-14104-00-00 |
from US $12.13 |
||
|
10
|
10
22F-14991-00-00 Cap |
22F-14991-00-00 |
from US $7.79 |
||
|
11
|
11
26H-14197-00-00 Hose (L1500) |
26H-14197-00-00 |
from US $10.91 |
||
| replacement | |||||
|
11
|
11
90445-084J0-00 Pipe |
90445-084J0-00 |
from US $8.28 |
||
|
12
|
12
98502-04014-00 Screw, Pan Head |
98502-04014-00 |
from US $1.42 |
||
| replacement | |||||
|
12
|
12
98580-04014-00 Screw, Pan Head |
98580-04014-00 |
from US $1.42 |
||
|
13
|
13
929-02041-00-00
Washer, Spring
|
929-02041-00-00 |
— | ||
| replacement | |||||
|
13
|
13
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
14
|
14
22F-14169-00-00 Cap |
22F-14169-00-00 |
from US $6.09 |
||
|
15
|
15
985-02040-08-00
Screw, Pan Head
|
985-02040-08-00 |
— | ||
| replacement | |||||
|
15
|
15
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.21 |
||
|
16
|
16
929-02041-00-00
Washer, Spring
|
929-02041-00-00 |
— | ||
| replacement | |||||
|
16
|
16
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
17
|
17
55X-14146-00-00 Plate |
55X-14146-00-00 |
from US $10.34 |
||
|
18
|
18
22K-14147-00-00 O-Ring |
22K-14147-00-00 |
from US $8.93 |
||
|
19
|
19
127-14186-00-00 Pin, Float |
127-14186-00-00 |
from US $2.98 |
||
|
20
|
20
22F-14142-12-00 Jet, Pilot |
22F-14142-12-00 |
from US $10.46 |
||
|
21
|
21
18A-1414E-30-00 Jet, Main (#76.3) |
18A-1414E-30-00 |
from US $11.66 |
||
|
22
|
22
2HX-1490J-10-00 Needle Set |
2HX-1490J-10-00 |
from US $20.97 |
||
|
23
|
23
802-14161-00-00 Nut, Cable Adjusting |
802-14161-00-00 |
from US $2 |
||
|
24
|
24
260-14131-00-00 Spring, Throttle Valve |
260-14131-00-00 |
from US $10.78 |
||
|
25
|
25
2HX-14112-35-00 Valve, Throttle 1 |
2HX-14112-35-00 |
from US $57.61 |
||
|
26
|
26
98502-04010-00 Screw, Pan Head |
98502-04010-00 |
from US $1.07 |
||
| replacement | |||||
|
26
|
26
985-80040-10-00 Screw, Pan Head |
985-80040-10-00 |
from US $1.07 |
||
|
27
|
27
929-02041-00-00
Washer, Spring
|
929-02041-00-00 |
— | ||
| replacement | |||||
|
27
|
27
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
28
|
28
55X-14198-00-00 Gasket |
55X-14198-00-00 |
from US $6.09 |
||
|
29
|
29
22F-14185-00-00 Float |
22F-14185-00-00 |
from US $22.82 |
||
|
30
|
30
22F-14150-00-00 Needle Assy |
22F-14150-00-00 |
from US $34.76 |
||
| replacement | |||||
|
30
|
30
5TH-14150-00-00 Needle Assy |
5TH-14150-00-00 |
from US $28.12 |
||
|
31
|
31
4EM-14141-78-00
Nozzle, Main
|
4EM-14141-78-00 |
— | ||
|
32
|
32
55X-14937-00-00 Clip |
55X-14937-00-00 |
from US $2.13 |
||
|
33
|
33
55X-14196-00-00 Pipe, Over Flow 1 |
55X-14196-00-00 |
from US $3.68 |
||
|
34
|
34
24W-14193-00-00 Pipe |
24W-14193-00-00 |
from US $11.58 |
||
|
35
|
35
91A20-07010-00 Hose |
91A20-07010-00 |
from US $3.97 |
||
| replacement | |||||
|
35
|
35
91A21-07020-00 Hose |
91A21-07020-00 |
from US $3.97 |
||
|
36
|
36
90159-06041-00 Screw, With Washer |
90159-06041-00 |
from US $2.13 |
||
| replacement | |||||
|
36
|
36
90159-06076-00 Screw, With Washer |
90159-06076-00 |
from US $1.66 |
||
|
37
|
37
3GB-14453-00-00 Joint, Air Cleaner 1 |
3GB-14453-00-00 |
from US $36.06 |
||
|
38
|
38
90460-43053-00 Clamp, Hose |
90460-43053-00 |
from US $7.65 |
||
| replacement | |||||
|
38
|
38
90460-43179-00 Clamp, Hose |
90460-43179-00 |
from US $7.65 |
||
