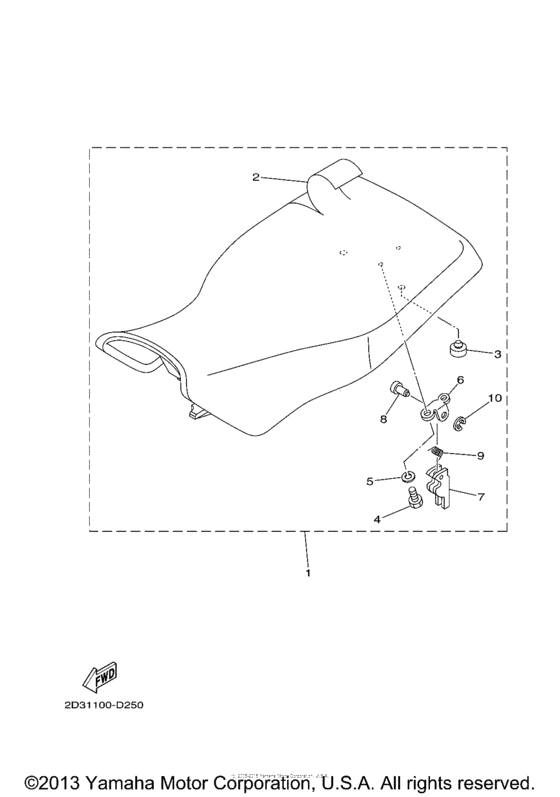

Seat Diagram Yamaha GRIZZLY 80 Grizzly 80 Hunter
- Model code
- YFM80GHX
- Engine Capacity
- 79
- Year
- 2008
- Sales region
- USA
- Power
- 6,3 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Grizzly 80 Hunter
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2D3-24710-01-00
Single Seat Assy
|
2D3-24710-01-00 |
— | ||
|
2
|
2
2D3-2470F-00-00
Seat Cover Comp
|
2D3-2470F-00-00 |
— | ||
|
3
|
3
371-27114-00-00 Stopper, Main Stand |
371-27114-00-00 |
from US $7.23 |
||
|
4
|
4
97002-06012-00 Bolt(80N) |
97002-06012-00 |
from US $3.12 |
||
| replacements | |||||
|
4
|
4
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
4
|
4
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
|
5
|
5
92902-06100-00 Washer, Spring |
92902-06100-00 |
US $0.99 |
||
| replacement | |||||
|
5
|
5
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
6
|
6
4K0-24775-00-00 Bracket, Seat Lever |
4K0-24775-00-00 |
from US $7.51 |
||
|
7
|
7
29U-24776-00-00 Lever, Seat |
29U-24776-00-00 |
from US $7.51 |
||
|
8
|
8
4K0-24774-A0-00 Pin |
4K0-24774-A0-00 |
from US $7.51 |
||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
90508-20454-00 Spring, Torsion |
90508-20454-00 |
from US $2.83 |
||
|
10
|
10
93430-04002-00 Circlip |
93430-04002-00 |
from US $1.56 |
||
| replacement | |||||
|
10
|
10
99080-04600-00 Circlip |
99080-04600-00 |
from US $1.34 |
||
