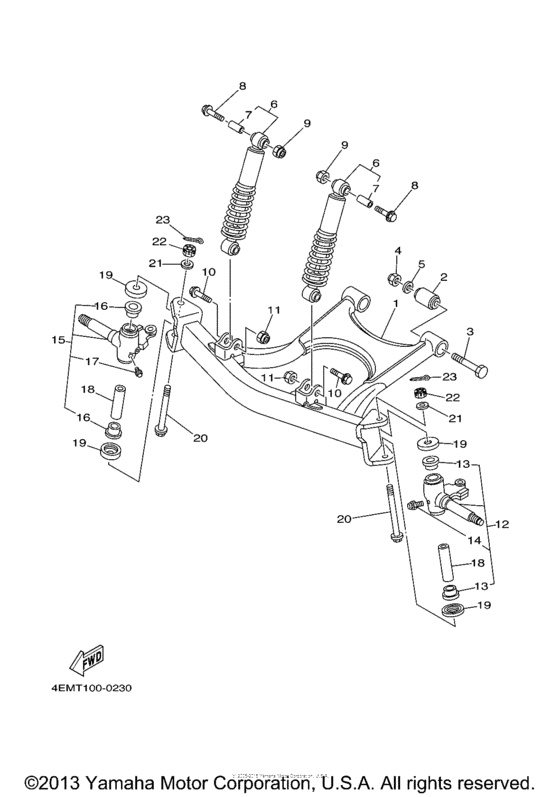

Front suspension wheel Diagram Yamaha GRIZZLY 80 Grizzly 80
- Model code
- YFM80GX
- Engine Capacity
- 79
- Year
- 2008
- Sales region
- USA
- Power
- 6,3 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Grizzly 80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3GB-23570-00-33 Front Lower Arm Comp. (Left)YB |
3GB-23570-00-33 |
from US $290.14 |
||
|
2
|
2
307-22123-00-00 Bush 1 |
307-22123-00-00 |
from US $18.42 |
||
|
3
|
3
90101-12033-00 Bolt |
90101-12033-00 |
from US $4.96 |
||
|
4
|
4
90185-12010-00 Nut, Self-Locking |
90185-12010-00 |
from US $2.55 |
||
|
5
|
5
90201-12050-00 Washer, Plate |
90201-12050-00 |
from US $4.11 |
||
|
6
|
6
2HX-23350-00-33 Shock Absorber AssYB |
2HX-23350-00-33 |
from US $164.41 |
||
| replacement | |||||
|
6
|
6
2HX-23350-00-00 Shock Absorber AssemblyYB |
2HX-23350-00-00 |
from US $164.41 |
||
|
7
|
7
2HX-2331U-00-00 Collar, Distance |
2HX-2331U-00-00 |
from US $5.10 |
||
|
8
|
8
90105-10262-00 Bolt, Flange |
90105-10262-00 |
from US $1.34 |
||
|
9
|
9
90185-10022-00 Nut, Self-Locking |
90185-10022-00 |
from US $1.56 |
||
|
10
|
10
90105-12062-00 Bolt, Flange |
90105-12062-00 |
from US $3.87 |
||
|
11
|
11
90185-12010-00 Nut, Self-Locking |
90185-12010-00 |
from US $2.55 |
||
|
12
|
12
3GB-23501-10-00 Steering Knuckle Assy (Left) |
3GB-23501-10-00 |
from US $135.68 |
||
|
13
|
13
90381-17067-00 Bush, Solid |
90381-17067-00 |
from US $6.96 |
||
|
14
|
14
937-00060-04-00
Nipple, Grease
|
937-00060-04-00 |
— | ||
| replacement | |||||
|
14
|
14
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $2.66 |
||
|
15
|
15
3GB-23502-10-00 Steering Knuckle Assy (Right) |
3GB-23502-10-00 |
from US $135.68 |
||
|
16
|
16
90381-17067-00 Bush, Solid |
90381-17067-00 |
from US $6.96 |
||
|
17
|
17
937-00060-04-00
Nipple, Grease
|
937-00060-04-00 |
— | ||
| replacement | |||||
|
17
|
17
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $2.66 |
||
|
18
|
18
3GB-23448-00-00 Spacer |
3GB-23448-00-00 |
from US $16.54 |
||
|
19
|
19
2NL-23517-00-00 Cover, Thrust 1 |
2NL-23517-00-00 |
from US $16.70 |
||
| replacement | |||||
|
19
|
19
3JN-23517-00-00 Cover, Thrust 1 |
3JN-23517-00-00 |
from US $11.92 |
||
|
20
|
20
90105-10274-00 Bolt, Flange |
90105-10274-00 |
from US $7.08 |
||
|
21
|
21
90201-10057-00 Washer, Plate |
90201-10057-00 |
from US $1.70 |
||
|
22
|
22
90171-10003-00 Nut, Castle |
90171-10003-00 |
from US $2.27 |
||
|
23
|
23
914-01200-20-00
Pin, Cotter
|
914-01200-20-00 |
— | ||
| replacement | |||||
|
23
|
23
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
