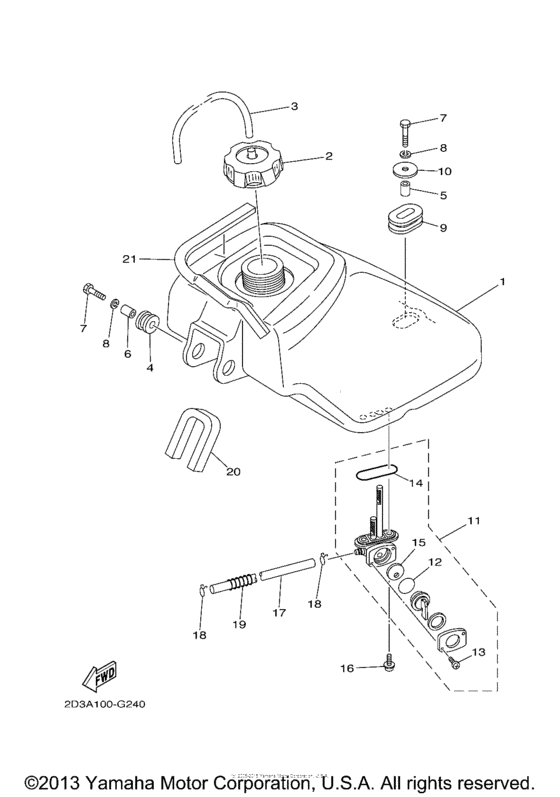

Fuel tank Diagram Yamaha GRIZZLY 80 Grizzly 80
- Model code
- YFM80GX
- Engine Capacity
- 79
- Year
- 2008
- Sales region
- USA
- Power
- 6,3 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Grizzly 80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2HX-24110-10-00 Fuel Tank Comp |
2HX-24110-10-00 |
from US $243.82 |
||
|
2
|
2
2FJ-24610-00-00
Cap Assy
|
2FJ-24610-00-00 |
— | ||
| replacements | |||||
|
2
|
2
2FJ-24610-10-00 Cap Assy |
2FJ-24610-10-00 |
from US $71.57 |
||
|
2
|
2
2FJ-24610-20-00 Cap Assy |
2FJ-24610-20-00 |
from US $71.57 |
||
|
3
|
3
90445-083J4-00 Hose (L460) |
90445-083J4-00 |
from US $4.39 |
||
| replacement | |||||
|
3
|
3
90445-083J5-00 Hose (L460) |
90445-083J5-00 |
from US $3.32 |
||
|
4
|
4
90480-18290-00 Grommet |
90480-18290-00 |
from US $1.70 |
||
|
5
|
5
903-87075-98-00 Collar (1T2) |
903-87075-98-00 |
from US $1.70 |
||
|
6
|
6
90387-066J1-00 Collar |
90387-066J1-00 |
from US $4.53 |
||
|
7
|
7
97027-06030-00 Bolt, Hexagon |
97027-06030-00 |
US $1.07 |
||
| replacement | |||||
|
7
|
7
97017-06030-00 Bolt |
97017-06030-00 |
from US $1.07 |
||
|
8
|
8
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
9
|
9
90480-01400-00 Grommet |
90480-01400-00 |
from US $4.11 |
||
|
10
|
10
90201-06090-00 Washer, Plate |
90201-06090-00 |
from US $1.70 |
||
|
11
|
11
55X-24500-02-00 Fuel Cock Assy 1 |
55X-24500-02-00 |
from US $29.89 |
||
|
12
|
12
3AJ-24534-01-00 Seal, Cock |
3AJ-24534-01-00 |
from US $1.66 |
||
|
13
|
13
98507-03008-00 Screw, Pan Head |
98507-03008-00 |
from US $2.27 |
||
| replacement | |||||
|
13
|
13
98517-03008-00 Screw, Pan Head |
98517-03008-00 |
from US $2.27 |
||
|
14
|
14
4X8-24512-00-00 O-Ring |
4X8-24512-00-00 |
from US $1.84 |
||
|
15
|
15
3AC-24523-00-00 Valve Packing |
3AC-24523-00-00 |
from US $6.80 |
||
|
16
|
16
90149-06108-00 Screw |
90149-06108-00 |
from US $1.42 |
||
|
17
|
17
90445-10044-00 Hose |
90445-10044-00 |
from US $4.11 |
||
| replacement | |||||
|
17
|
17
904-45108-29-00 Hose |
904-45108-29-00 |
from US $4.11 |
||
|
18
|
18
904-67090-A2-00 Clip |
904-67090-A2-00 |
from US $1.56 |
||
|
19
|
19
90504-06030-00 Spring, Compression |
90504-06030-00 |
from US $2.83 |
||
|
20
|
20
2HX-24181-00-00 Damper 1 |
2HX-24181-00-00 |
US $3.19 |
||
| replacement | |||||
|
20
|
20
88T-77198-00-00 Damper 1 |
88T-77198-00-00 |
US $3.08 |
||
|
21
|
21
5TH-2414H-00-00 Damper, Plate 1 |
5TH-2414H-00-00 |
from US $4.45 |
||
