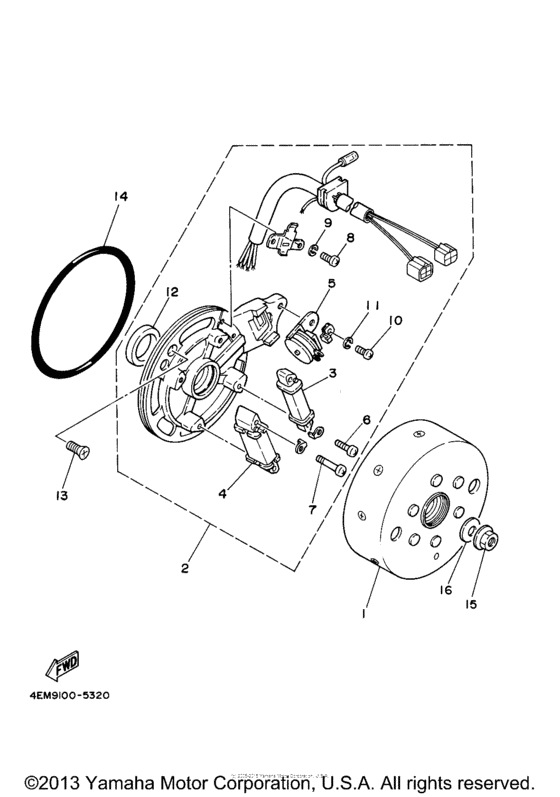

Generator Diagram Yamaha GRIZZLY 80 Grizzly 80
- Model code
- YFM80GX
- Engine Capacity
- 79
- Year
- 2008
- Sales region
- USA
- Power
- 6,3 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Grizzly 80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2FM-85550-M1-00 Rotor Assy |
2FM-85550-M1-00 |
US $241.06 |
||
|
2
|
2
4EM-85560-10-00 Base Assy |
4EM-85560-10-00 |
from US $207.24 |
||
| replacements | |||||
|
2
|
2
4EM-85560-12-00 BASE ASSY |
4EM-85560-12-00 |
from US $202.61 |
||
|
2
|
2
4EM-85560-13-00 BASE ASSY |
4EM-85560-13-00 |
from US $153.74 |
||
|
3
|
3
5G3-85520-M1-00 Coil, Charge |
5G3-85520-M1-00 |
from US $66.85 |
||
|
4
|
4
55X-81313-M0-00 Coil, Lighting 1 |
55X-81313-M0-00 |
from US $47.67 |
||
|
5
|
5
22K-85595-M0-00 Coil, Pulser |
22K-85595-M0-00 |
from US $52.64 |
||
|
6
|
6
985-11040-12-00 Screw, Panhead (4U5) |
985-11040-12-00 |
from US $1.07 |
||
|
7
|
7
985-11040-20-00
Screw, Pan Head
|
985-11040-20-00 |
— | ||
| replacement | |||||
|
7
|
7
985-17040-20-00 Screw, Pan Head |
985-17040-20-00 |
from US $1.35 |
||
|
8
|
8
985-01040-06-00
Screw, Pan Head
|
985-01040-06-00 |
— | ||
| replacements | |||||
|
8
|
8
985-17040-16-00 Screw, Pan Head |
985-17040-16-00 |
from US $1.13 |
||
|
8
|
8
901-59041-44-00
Screw, With Washer
|
901-59041-44-00 |
— | ||
|
8
|
8
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
8
|
8
99999-04427-00 Screw,pan Head W/washer |
99999-04427-00 |
US $3.04 |
||
|
9
|
9
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
9
|
9
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
10
|
10
98501-05010-00 Screw, Pan Head |
98501-05010-00 |
US $1.21 |
||
| replacement | |||||
|
10
|
10
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
11
|
11
929-01051-00-00
Washer, Spring
|
929-01051-00-00 |
— | ||
| replacement | |||||
|
11
|
11
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
12
|
12
93102-19276-00 Oil Seal |
93102-19276-00 |
from US $7.65 |
||
|
13
|
13
98702-06016-00 Screw, Flat Head |
98702-06016-00 |
from US $2.13 |
||
| replacements | |||||
|
13
|
13
98707-06016-00 Screw, Flat Head |
98707-06016-00 |
from US $1.34 |
||
|
13
|
13
98704-06016-00 Screw, Flat |
98704-06016-00 |
from US $2.13 |
||
|
14
|
14
93211-02703-00 O-Ring |
93211-02703-00 |
from US $4.68 |
||
|
15
|
15
90179-10023-00 Nut |
90179-10023-00 |
from US $2.05 |
||
|
16
|
16
902-01101-A4-00 Washer, Plate |
902-01101-A4-00 |
from US $2.69 |
||
| replacement | |||||
|
16
|
16
90201-102G9-00 Washer, Plate (26H) |
90201-102G9-00 |
from US $2.69 |
||
