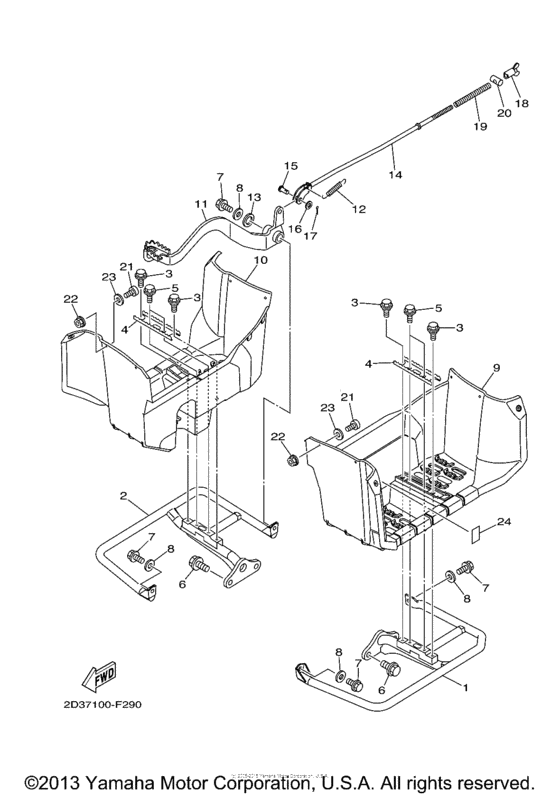

Stand & Footrest Diagram Yamaha GRIZZLY 80 Grizzly 80
- Model code
- YFM80GX
- Engine Capacity
- 79
- Year
- 2008
- Sales region
- USA
- Power
- 6,3 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Grizzly 80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2D3-27411-10-00
Footrest 1
|
2D3-27411-10-00 |
— | ||
|
2
|
2
2D3-27421-10-00 Footrest 2 |
2D3-27421-10-00 |
US $101.86 |
||
|
3
|
3
90109-06172-00 Bolt |
90109-06172-00 |
from US $1.34 |
||
|
4
|
4
2D3-2741A-00-00
Arm 1
|
2D3-2741A-00-00 |
— | ||
|
5
|
5
958-02060-12-00
Bolt, Flange
|
958-02060-12-00 |
— | ||
| replacements | |||||
|
5
|
5
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
5
|
5
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.07 |
||
|
6
|
6
95812-12020-00 Bolt, Flange |
95812-12020-00 |
from US $2.13 |
||
|
7
|
7
950-22080-14-00 Bolt, Flange |
950-22080-14-00 |
from US $1.07 |
||
|
8
|
8
90201-08043-00 Washer, Plate |
90201-08043-00 |
from US $1.34 |
||
|
9
|
9
2D3-27453-01-00
Cover 1
|
2D3-27453-01-00 |
— | ||
|
10
|
10
2D3-27463-01-00 Cover 2 |
2D3-27463-01-00 |
US $78.77 |
||
|
11
|
11
2D3-27211-10-00 Pedal, Brake |
2D3-27211-10-00 |
US $100.24 |
||
|
12
|
12
90506-16318-00 Spring, Tension |
90506-16318-00 |
from US $3.68 |
||
|
13
|
13
90201-15018-00 Washer, Plate |
90201-15018-00 |
from US $1.84 |
||
|
14
|
14
3GB-27231-00-00 Rod, Brake |
3GB-27231-00-00 |
from US $13.46 |
||
|
15
|
15
90240-06076-00 Pin, Clevis |
90240-06076-00 |
from US $1.70 |
||
|
16
|
16
929-02062-00-00
Washer, Plain
|
929-02062-00-00 |
— | ||
| replacement | |||||
|
16
|
16
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
17
|
17
914-01200-12-00
Pin, Cotter
|
914-01200-12-00 |
— | ||
| replacements | |||||
|
17
|
17
91490-20015-00 Pin. Cotter |
91490-20015-00 |
from US $1.13 |
||
|
17
|
17
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
18
|
18
20E-26343-00-00 Nut, Adjusting |
20E-26343-00-00 |
from US $11.33 |
||
|
19
|
19
905-01102-45-00 Spring, Compression |
905-01102-45-00 |
from US $1.70 |
||
|
20
|
20
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.56 |
||
|
21
|
21
98902-05016-00 Screw, Bind (8K2) |
98902-05016-00 |
from US $1.34 |
||
|
22
|
22
95702-05300-00 Nut, Flange |
95702-05300-00 |
from US $1.42 |
||
| replacement | |||||
|
22
|
22
95707-05300-00 Nut, Flange |
95707-05300-00 |
from US $1.42 |
||
|
23
|
23
90201-05042-00 Washer, Plate |
90201-05042-00 |
from US $1.42 |
||
|
24
|
24
4EM-15443-01-00
Emblem
|
4EM-15443-01-00 |
— | ||
