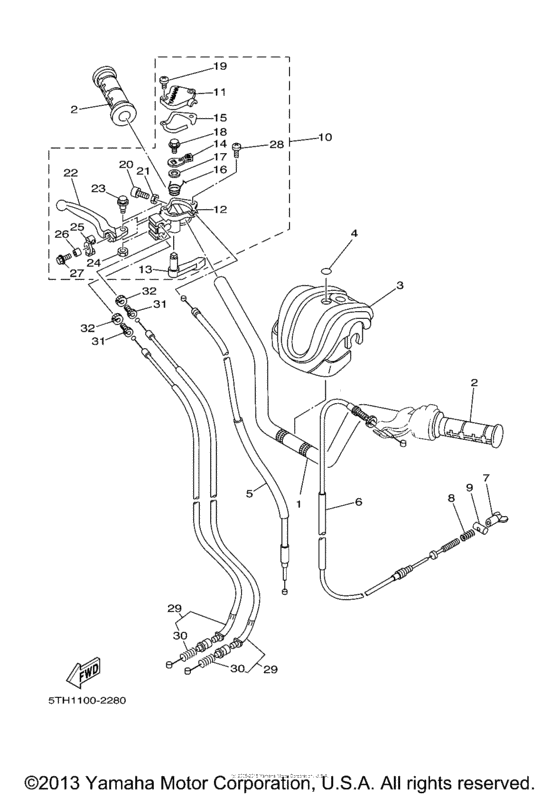

Steering handle & cable Diagram Yamaha GRIZZLY 80 Grizzly 80
- Model code
- YFM80GX
- Engine Capacity
- 79
- Year
- 2008
- Sales region
- USA
- Power
- 6,3 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Grizzly 80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2D3-26111-00-00 Handlebar |
2D3-26111-00-00 |
US $45.23 |
||
|
2
|
2
5LP-26241-00-00 Grip |
5LP-26241-00-00 |
from US $9.60 |
||
|
3
|
3
5TH-26124-30-00 Protector, HandlebarUR FOR PDG |
5TH-26124-30-00 |
from US $16.96 |
||
|
3
|
3
5TH-26124-40-00 Protector, HandlebarUR FOR DPBSN |
5TH-26124-40-00 |
US $16.96 |
||
|
4
|
4
5GT-2836B-10-00 Tuning Fork Mark |
5GT-2836B-10-00 |
from US $11.33 |
||
|
5
|
5
3GB-26311-02-00 Cable, Throttle 1 |
3GB-26311-02-00 |
from US $19.78 |
||
| replacement | |||||
|
5
|
5
3GB-26311-03-00 |
3GB-26311-03-00 |
US $20.21 |
||
|
6
|
6
3GB-26341-01-00 Wire, Brake 1 |
3GB-26341-01-00 |
from US $37.03 |
||
|
7
|
7
20E-26343-00-00 Nut, Adjusting |
20E-26343-00-00 |
from US $11.33 |
||
|
8
|
8
90501-10782-00 Spring, Compression |
90501-10782-00 |
from US $1.84 |
||
|
9
|
9
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.56 |
||
|
10
|
10
5TH-26250-10-00 Throttle Lever Assy |
5TH-26250-10-00 |
from US $131.76 |
||
|
11
|
11
3GB-2628F-00-00 Cap, Gear |
3GB-2628F-00-00 |
from US $16.72 |
||
|
12
|
12
3GB-2625E-01-00 Body, Throttle |
3GB-2625E-01-00 |
from US $34.85 |
||
|
13
|
13
3GB-2625G-00-00 Lever, Throttle |
3GB-2625G-00-00 |
from US $25.50 |
||
|
14
|
14
3GB-2625H-00-00 Arm, Throttle |
3GB-2625H-00-00 |
from US $3.40 |
||
|
15
|
15
3GB-2628G-02-00 Gasket |
3GB-2628G-02-00 |
from US $3.68 |
||
|
16
|
16
90508-10775-00 Spring, Torsion |
90508-10775-00 |
from US $2.27 |
||
|
17
|
17
90201-145M4-00 Washer, Plate |
90201-145M4-00 |
from US $2.41 |
||
|
18
|
18
95802-08012-00 Bolt, Flange |
95802-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
18
|
18
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
19
|
19
985-02040-16-00
Screw, Pan Head
|
985-02040-16-00 |
— | ||
| replacements | |||||
|
19
|
19
985-17040-16-00 Screw, Pan Head |
985-17040-16-00 |
from US $1.13 |
||
|
19
|
19
98580-04014-00 Screw, Pan Head |
98580-04014-00 |
from US $1.42 |
||
|
20
|
20
91312-05025-00 Bolt |
91312-05025-00 |
from US $1.42 |
||
|
21
|
21
95302-05700-00 Nut, Hexagon |
95302-05700-00 |
from US $2.83 |
||
| replacement | |||||
|
21
|
21
953-17057-00-00 Nut |
953-17057-00-00 |
from US $2.42 |
||
|
22
|
22
5TH-83922-00-00 Lever 2 |
5TH-83922-00-00 |
from US $18.07 |
||
|
23
|
23
90109-06243-00 Bolt |
90109-06243-00 |
from US $1.84 |
||
|
24
|
24
95602-06100-00 Nut, U |
95602-06100-00 |
from US $1.21 |
||
| replacement | |||||
|
24
|
24
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.21 |
||
|
25
|
25
3GB-26347-00-00 Joint, Cable |
3GB-26347-00-00 |
from US $13.46 |
||
|
26
|
26
90387-066V8-00 Collar |
90387-066V8-00 |
from US $1.70 |
||
| replacement | |||||
|
26
|
26
90387-06761-00 Collar (3L6) |
90387-06761-00 |
from US $1.70 |
||
|
27
|
27
95802-06016-00 Bolt, Flange |
95802-06016-00 |
US $1.07 |
||
| replacement | |||||
|
27
|
27
95817-06016-00 Bolt, Flange |
95817-06016-00 |
from US $1.07 |
||
|
28
|
28
98502-06020-00 Screw, Pan Head |
98502-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
28
|
28
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.07 |
||
|
29
|
29
3GB-26361-03-00 Cable, Brake |
3GB-26361-03-00 |
from US $28.84 |
||
| replacement | |||||
|
29
|
29
3GB-26361-04-00 CABLE BRAKE |
3GB-26361-04-00 |
US $29.36 |
||
|
30
|
30
90501-08511-00 Spring, Compression |
90501-08511-00 |
from US $1.84 |
||
|
31
|
31
90123-08106-00 Bolt |
90123-08106-00 |
from US $7.23 |
||
|
32
|
32
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.38 |
||
